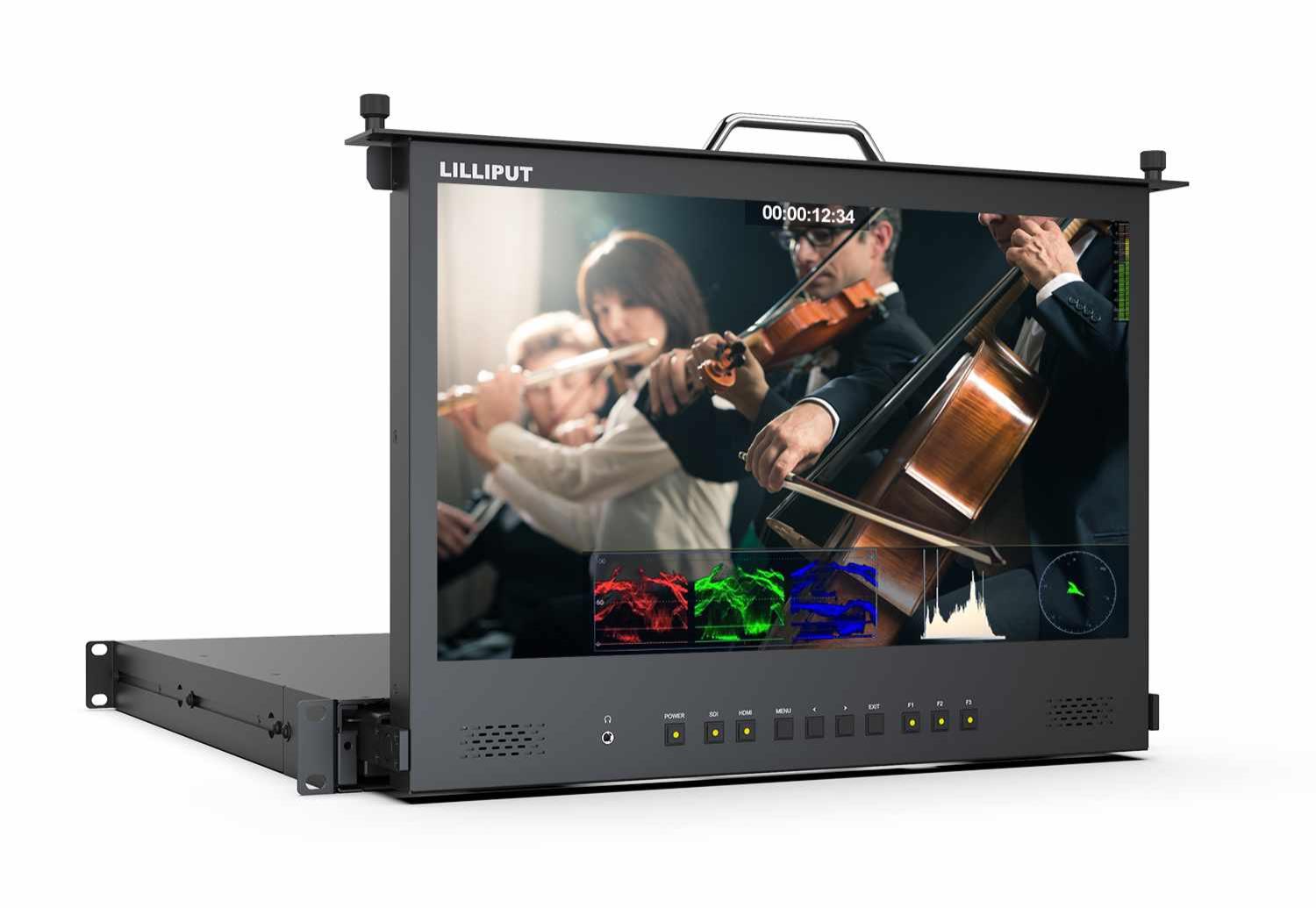

Lilliput RM-1731S 17.3" rackmount monitor with SDI
1RU rack monitor for broadcast & live streaming
article number: 12504 | manufacturer number: RM-1731S | EAN/UPC: 6950821602584
The LILLIPUT 1RU RACK MOUNT MONITOR is specially designed for broadcast and live streaming applications in cabinets and broadcast trucks. With its 17.3"IPS display and compact 1RU rack design, it offers a space-saving monitoring solution for professional production environments. The system is available in two versions: the RM-1731S with HDMI 2.0 + 3G-SDI and the RM-1731 with HDMI 2.0 ports.
The 17.3"IPS panel with a native resolution of 1920×1080 pixels enables precise image control with a wide viewing angle of 170° horizontally and vertically. HDR support includes ST2084 300, ST2084 1000, ST2084 10000 and HLG standards, making bright and dark details more clear. The 3D LUT functionality with 17 pre-installed logs and 6 custom logs enables professional color correction and tuning for various camera workflows.
The monitor offers comprehensive analysis tools for image control. Waveform display, histogram and false color support precise exposure assessment, while focus peaking makes sharpness control easier. Additional tools such as Vector Scope, Level Meter, Check Field and Pixel Zoom enable detailed technical image analysis. The marker functions and H/V delay options complete the professional monitoring offering for broadcast productions.
The device has HDMI 2.0 inputs and loop outputs, which Process video signals up to 2160p 60Hz. The RM-1731S variant also offers 3G-SDI inputs and outputs for professional broadcast workflows. The supported formats include 4K resolutions of 2160p in various frame rates as well as full HD and HD-ready formats. The audio is transmitted via HDMI with 8-channel 24-bit support or via the 3.5mm headphone jack with 2-channel 48kHz 24-bit.
The monitor can be controlled remotely from a computer via the LAN connection. The software application allows control of signal sources, functions and audio settings. This remote control capability is particularly valuable for broadcast environments where multiple monitors need to be managed centrally. The USB port complements the connectivity options for additional peripheral devices.
The patented design with the patent numbers 201610862204.5 and 201621090715.1 enables a space-saving folding and storage function. The monitor can be folded elegantly and only requires 1RU rack space with optimal use of space. Included in delivery are a 12V 3A DC power adapter, tally connector and the electronic user manual. The dimensions are 482.5mm × 44mm × 507.5mm with a weight of 8.9kg.
Real product can look different to picture
techn. Specs▲
| Size | 17.3" |
|---|---|
| Resolution | 1920×10 80 |
| Brightness | 300cd/m² |
| Aspect ratio | |
| Contrast | 800:1 |
| Viewing angle | 170°/170°(H/V) |
| SDI | 1×3G |
| HDMI | 1×HDMI 2.0 |
| LAN | 1 |
| 1×3G | |
| HDMI | 1×HDMI 2.0 |
| SDI | 720p 50/60, 1080i 50/60, 1080PSF 24/25/30, 1080p 24/25/30/50/60... |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60 |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 8ch 24-bit |
| Studs | 3.5 mm – 2 channels 48 kHz 24 bit |
| Built-in Speaker | 2 |
| Operation power | ≤14W(12V) |
| DC In | DC 10-24V |
| Operating temperature | 0°C~50°C |
| Storage temperature | -20°C~60°C |
| Dimension (LWD) | 482.5×44×507.5mm |
| Weight | 8.9 kg |
[ [167]]
Questions & Answers▲
What screen size and resolution does the Lilliput RM-1731S have?
The monitor has a 17.3-inch IPS panel with a native resolution of 1920×1080 pixels. The viewing angle is 170 degrees both horizontally and vertically, which enables precise image control even from side positions.
What rack installation size does the monitor have and how much space does it require in the rack?
The Lilliput RM-1731S is in one Compact 1RU design and therefore only occupies one rack unit in the cabinet. This makes it particularly suitable for space-saving setups in broadcast trucks and production cabinets.
What input and output connections are available?
The RM-1731S offers HDMI 2.0 inputs as well as HDMI Loop outputs that handle video signals up to 2160p at 60 Hz. There are also 3G-SDI inputs and outputs that support professional broadcast workflows. The pure HDMI version without SDI is available as RM-1731.
Which video formats and resolutions are supported?
The monitor supports 4K resolutions with up to 2160p in various frame rates as well as Full HD and HD-ready formats. Signals up to 2160p at 60 Hz can be processed via HDMI 2.0.
Which HDR standards are supported?
The Lilliput RM-1731S supports the HDR standards ST2084 300, ST2084 1000, ST2084 10000 and HLG. This allows bright and dark image areas to be displayed in a more differentiated manner, which makes it easier to assess HDR content in broadcast mode.
What is the 3D LUT function and how many LUTs are available?
The 3D LUT function enables professional color correction and color matching directly on the monitor. There are 17 pre-installed log profiles as well as 6 slots for user-defined LUTs, so that various camera workflows can be visualized directly on the device without external software.
Which are monitoring tools for exposure assessment integrated?
Waveform display, histogram and false color are available for exposure analysis. These tools help to precisely detect and correctly assess over- and under-exposure.
Does the monitor offer tools for sharpness control?
Yes, the monitor has focus peaking, which highlights sharp edges in the image in color and thus enables a quick assessment of sharpness directly on the monitor. In addition, a pixel zoom function is available for enlarged detailed views.
What other technical analysis tools are available?
In addition to the exposure and sharpness tools, the monitor offers a vector scope, level meter, check Field and H/V delay options. These tools enable detailed technical image analysis and are particularly relevant for professional broadcast productions.
Are marker functions available and what purpose do they serve?
The monitor supports various marker functions that help to define image sections, safety areas and To correctly assess image formats. This is particularly useful if different output formats are to be monitored during a production.
For which areas of application is the Lilliput RM-1731S suitable?
[The monitor is specifically designed for broadcast and live streaming applications. Typical areas of application include production cabinets in studios, broadcast trucks and other professional production environments where reliable and space-saving monitoring is required.
How does the RM-1731S differ from the model RM-1731?
The main difference lies in the connections: The RM-1731S also has 3G-SDI input and output, while the RM-1731 is only equipped with HDMI 2.0 connections. For broadcast environments where SDI signals are standard, the RM-1731S is the suitable choice.
Can the monitor be integrated into existing SDI infrastructures?
Yes, thanks to the 3G-SDI Loop outputs allow the RM-1731S to be seamlessly integrated into existing SDI signal chains without the signal having to be interrupted. This enables oneflexible integration into existing broadcast setups.
