Lilliput RM1731 HDMI 17.3 inch monitor rackmount
17 inch pullout HDMI rackmount monitor in full HD resolution
Artikelnummer: 12505 | Hersteller-Nummer: RM-1731 | EAN: 6950821602591
Product description Lilliput RM1731

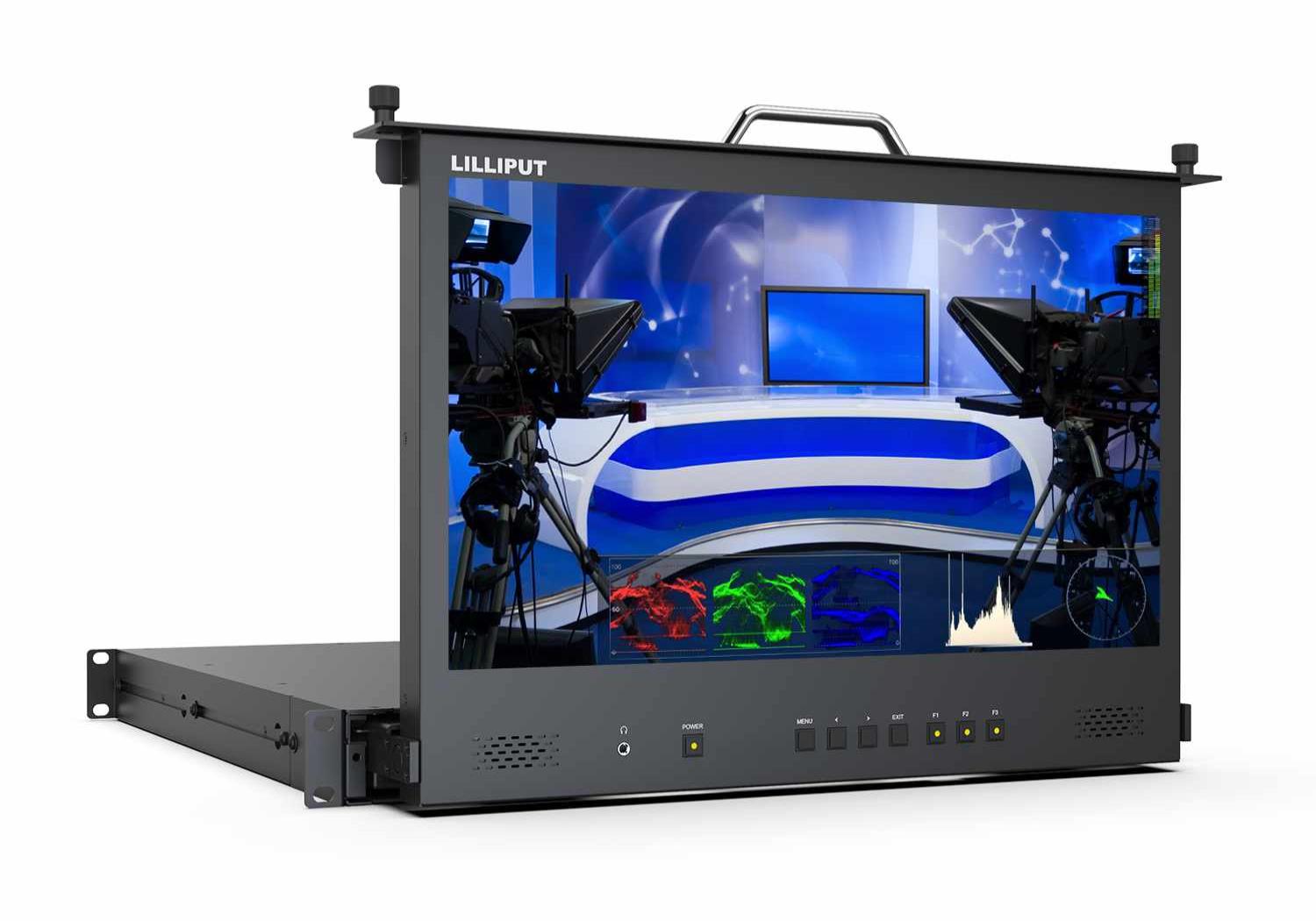

The Lilliput RM1731 is a 17.3 inch LCD rackmount monitor with full HD resolution (1920 x 1080 pixels) and 8 bit Color depth
Compatibility
This pull-out monitor is suitable for installation in 19 inch racks and only takes up 1 height unit (U). HDMI ports available on the back.
Features
- Resolution: Full HD (1920 x 1080)
- Image format: 16:9
- Color system: PAL/NTSC
- Brightness: 300 cd/m²
- Contrast ratio: 800:1
- Viewing angle (H/V): 170° / 170°
- Two built-in speakers (L / R)
- Time code
- Vector Scope
- Waveform Monitor
- Peaking
- False Color
- Histogram
- Exposure
- Check Field
- Color Bar
- Image Flip
- For installation in 19 inch rack - 1U
Connections
- 1 x HDMI input/output loop
- 1 x headphone output, 3.5 mm stereo jack
- 1 x Tally input
- 1 x power connection DC 10 volts to 18 volts
Scope of delivery
- 12V 2A DC Adapter
Real product can look different to picture
techn. Specs▲
Technical data
| Display | Panel | 17.3" IPS |
|---|---|---|
| Physical Resolution | 1920 × 1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 300 nits | |
| Contrast | 800:1 | |
| Viewing Angle | 170° / 170° (H/V) | |
| HDR Supported | HLG, ST2084 300 / 1000 / 10000 | |
| Input | HDMI | 1 × HDMI 2.0 |
| 3G-SDI | 1 (optional) | |
| Output | HDMI | 1 × HDMI 2.0 |
| 3G-SDI | 1 (optional) | |
| Supported Formats | HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| 3G-SDI | 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60 | |
| Audio In/Out | Speaker | 2 |
| HDMI | 8ch 24-bit | |
| Ear Jack | 3.5 mm – 2ch 48 kHz 24-bit | |
| Power | Input Voltage | DC 10-24V |
| Power Consumption | ≤14W (12V) | |
| Environment | Operating Temperature | 0°C – 50°C |
| Storage Temperature | -20°C – 60°C | |
| Dimension | Dimension (L × W × D) | 482.5 × 44 × 507.5mm |
| Weight | 8.9 kg |
