Lilliput RM-7028S Dual 7" Rack Monitor 3RU
3G-SDI broadcast monitor with IPS displays & TALLY
Special price: € 617.61
incl. VAT
( instead of 665.21 )
519.00 € w/o vat
in stock
Shipping costarticle number: 12200 | manufacturer number: RM-7028S | EAN/UPC: 6950821600948

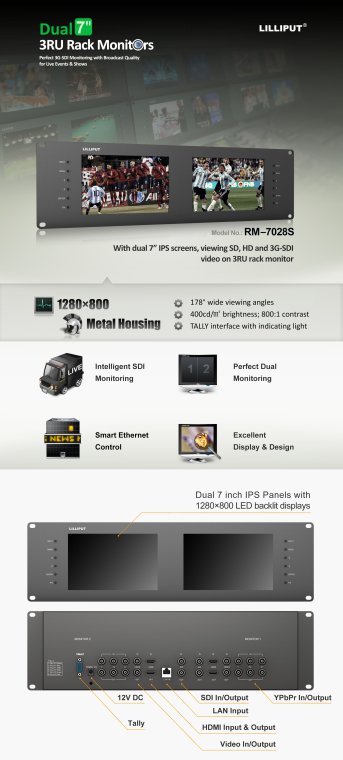

The LILLIPUT RM-7028S is a professional 3RU rack monitor with two 7-inch IPS displays for high-quality 3G-SDI monitoring in broadcast quality. The device was specially designed for Live events and shows and offers a perfect solution for professional video surveillance in rack systems. With a physical resolution of 1280×800 pixels per display, the system supports resolutions up to 1920×1080 and enables the simultaneous display of SD, HD and 3G-SDI video signals.
The RM-7028S has extensive input options with two 3G-SDI, two HDMI, two YPbPr and two composite inputs as well as TALLY support for live productions. The intelligent SDI monitoring automatically recognizes different SDI formats and adapts accordingly Indicator light enables seamless integration into professional broadcast workflows and live production environments.
With its two 7-inch IPS panels, the monitor offers 178° width Viewing angle, high brightness of 400cd/m², high contrast of 800:1 and an aspect ratio of 16:9. The displays enable fast response times and precise color representation, which is essential for critical monitoring applications in video production. The robust metal housing ensures durability and professional usability.
The Smart Ethernet Control System enables remote control via Mac or PC and simplifies setup and adjustment of monitor settings via network connections. This function is particularly valuable for complex production environments where central control and quick configuration changes are required. The monitor supports various network protocols for flexible integration into existing broadcast infrastructures.
The RM-7028S works with a 12V DC power supply with a power consumption of 51W and is designed for operating temperatures from -20°C to +60°C. With dimensions of 482.5×133.5×25.3mm and a weight of 2085g, the device fits perfectly into standard 19-inch racks. In addition to the video inputs, the device also includes a LAN connection, USB 2.0 and various outputs for flexible signal distribution in professional monitoring setups.
Real product can look different to picture
techn. Specs▲
| Size | Dual 7" LED backlight |
|---|---|
| Resolution | 1280×800 |
| Brightness | 400cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 800:1 |
| Viewing angle | 178°/178° (H/V) |
| SDI | 2×3G |
| HDMI | 2×HDMI 1.4 |
| YPbPr | 2×3 (BNC) |
| Composite | 2 |
| LAN | 1 |
| TALLY | 1 |
| Supported Input/output formats | 720p 50/60, 1080i 50/60, 1080p5F 24/25/30, 1080p 24/25/30/50/60 |
| 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 | |
| Operating power | ≤18W |
| DC In | DC 7-24V |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C |
| 482.5×133.5×25.3mm | |
| Weight | 2885g |
Questions & Answers▲
How many displays does the Lilliput RM-7028S have and what size are they?
The RM-7028S has two 7-inch IPS displays that are installed next to each other in a 3RU rack housing, making them ideal for simultaneous use in broadcast productions
What native resolution do the displays have and which signal resolutions are supported?
Each of the two displays has a physical resolution of 1280×800 pixels. The system supports input signals up to a resolution of 1920×1080 and can display SD, HD and 3G-SDI signals simultaneously.
Which video inputs are available?
The monitor offers two per display 3G-SDI inputs, two HDMI inputs, two YPbPr inputs and two composite inputs, so that a wide range of signal sources can be connected.
Does the device automatically recognize different SDI formats?
Yes, that Intelligent SDI monitoring automatically recognizes different SDI formats and adjusts the display accordingly without the need to manually switch the input source.
Is a TALLY function integrated and how is it used?
The RM-7028S has one TALLY interface with indicator light. This enables seamless integration into professional broadcast workflows and live production environments to clearly identify active signal sources.
How large are the viewing angles of the IPS panels?
Both IPS panels offer viewing angles of each 178° horizontal and vertical, which enables precise image assessment even from lateral positions.
What brightness and contrast values do the displays achieve?
The displays achieve a brightness of 400 cd/m² and a contrast ratio of 800:1, which ensures clear and detailed image reproduction in professional monitoring applications.
What aspect ratio do the displays have?
Both displays work in the 16:9 format, which corresponds to the common broadcast standard and a True-to-format display of HD and Full HD video material is guaranteed.
Can the monitor be controlled remotely via a network?
Yes, the integrated Smart Ethernet Control System enables the remote control and configuration of the monitor via Mac or PC via a network connection, which is particularly important in complex production environments central control is an advantage.
For which areas of application is the RM-7028S particularly suitable?
The device was developed specifically for live events, shows and professional broadcast productions. Thanks to the robust metal housing and the extensive input options, it is suitable for permanent use in rack systems for demanding productions.
How many rack units does the device take up in the rack?
The monitor occupies three rack units (3RU) in one Standard 19-inch rack and can be integrated into existing rack infrastructures to save space.
What material is the housing made of and how does this affect its longevity?
The housing is made of robust metal, which gives the monitor a high level of mechanical stability and makes it suitable for makes it suitable for continuous professional use in demanding production environments.
