Lilliput RM7026-12G Dual 7" Rack Monitor 1000 Nits
3RU 12G-SDI Broadcast Rack Monitor with HDR
article number: 12564 | manufacturer number: RM7026-12G | EAN/UPC: 6950821602737

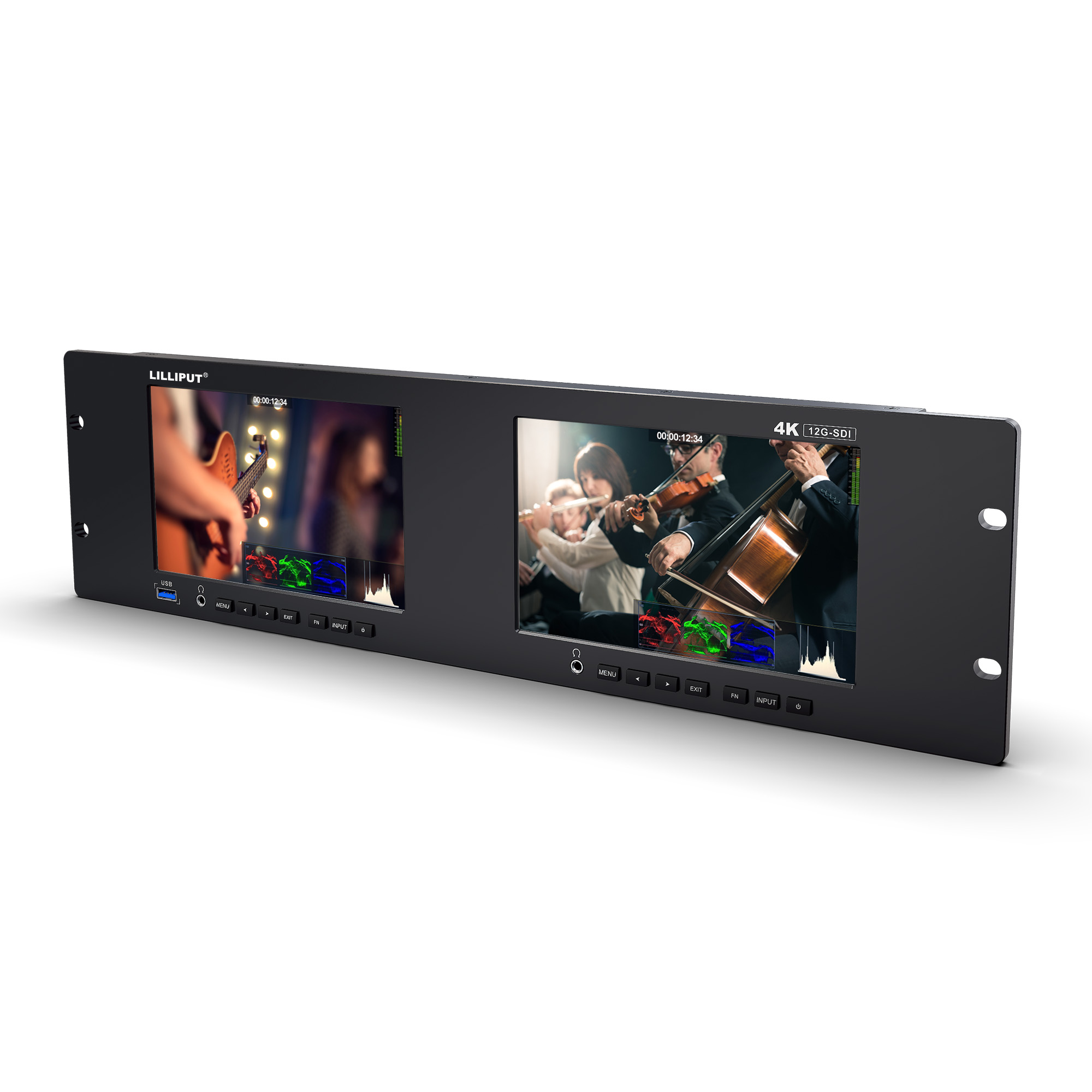

The LILLIPUT RM7026-12G 12G-SDI 3RU High-Bright Rack Mount Monitor is a professional dual monitor for broadcast and live streaming applications. The 3RU rack system offers two 7-inch displays with Full HD resolution of 1920x1200 pixels and enables simultaneous monitoring of two independent video signals. With its compact 3RU design, the monitor fits perfectly into 19-inch racks and is ideal for video walls, broadcast trucks and professional monitoring setups.
The two 7-inch LTPS displays deliver an exceptional brightness of 1000 nits and ensure clear and true-color display even when used outdoors or in bright environments. The HDR system supports ST2084 300, ST2084 1000, ST2084 10000 and HLG standards for extended dynamic range representation. With a contrast ratio of 1200:1 and a viewing angle of 160° horizontally and vertically, the monitor offers optimal viewing conditions from different viewing angles.
The RM7026-12G supports both 12G-SDI and HDMI 2.0 inputs with loop outputs for both displays. The 12G-SDI connections enable video signals up to 2160p at 60Hz, while the HDMI 2.0 interfaces can also handle 4K signals. Each display has separate inputs and outputs, enabling flexible signal distribution for complex monitoring scenarios. The loop-out function supports the easy daisy chaining of multiple monitors.
The monitor offers professional analysis tools such as waveform display, histogram, false color, focus peaking, check field and color bar. These tools support camera operators and technicians in precise image control during recording or transmission. The device can be controlled remotely via the LAN connection, with PC applications enabling control of signal sources, functions and audio settings. The tally function via a separate interface allows integration into professional broadcast workflows.
The system works with an input voltage of DC 12-24V with a maximum power consumption of 21W. The operating temperature is between 0°C and 50°C, the storage temperature is between -20°C and 60°C. With dimensions of 480mm x 131.6mm x 32.5mm and a weight of 1.83kg, the monitor fits perfectly into standard racks. The scope of delivery includes a 12V 3A DC power adapter, a tally connector and an E-User Manual. The audio system supports HDMI 8-channel and SDI 16-channel audio as well as a 3.5mm headphone jack with 2-channel 48kHz 24-bit output.
Real product can look different to picture
techn. Specs▲
| Size | Dual 7" |
|---|---|
| Resolution | 1920×1200 |
| Hey brightness | 1000cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 1200:1 |
| Consideration swinkel | 160°/160°(H/V) |
| HDR support | HLG / ST2094 300 / 1000 / 10000 |
| SDI | 2×12G (supports up to 4K 60Hz) |
| HDMI | 2×HDMI (supports up to 4K 60Hz) |
| LAN | 1 |
| Video loop output SDI | 2×12G (supports up to 4K 60 Hz) |
| Video loop output HDMI | 2×HDMI 2.0 (supports up to 4K 60 Hz) |
| Supported in/out formats SDI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50... |
| Supported Input/output formats HDMI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50... |
| Speakers | - |
| Earphone slot | 3.5 mm |
| DC In | DC 12-24V |
| Power consumption | ≤21W |
| Operating temperature | 0°C~50°C |
| Storage temperature | -20°C~60°C |
| Dimension (LWD) | 480×131.6×32.5mm |
| Weight | 1.83 kg |
Questions & Answers▲
What display size and resolution do the two screens of the RM7026-12G offer?
Each of the two screens measures 7 inches diagonally and offers a Full HD resolution of 1920x1200 pixels. The LTPS panel technology ensures precise and detailed image display.
How bright are the displays and what lighting conditions are they suitable for?
The displays achieve a brightness of 1000 nits, which also ensures a clear and true-color display Outdoor use and in strongly lit environments. This makes the monitor particularly suitable for broadcast trucks, video walls and professional setups under variable lighting conditions.
Which HDR standards are supported?
The RM7026-12G supports the HDR standards ST2084 300, ST2084 1000, ST2084 10000 and HLG. This ensures an extended dynamic range display for various professional production requirements.
Which video inputs are available for each display?
Each of the two displays has a 12G-SDI input and an HDMI 2.0 input. Both inputs are provided with a loop output so that signals can be passed on directly.
What maximum video resolutions and frame rates does the RM7026-12G process?
Both the 12G-SDI and the HDMI 2.0 interfaces can handle 4K signals at up to 2160p at 60 Hz. This makes the monitor suitable for current and demanding broadcast productions.
Can both displays show different signals at the same time?
Yes, both 7-inch displays work completely independently of each other and allow the simultaneous monitoring of two different video signals. Each display has its own separate inputs and outputs.
How should the RM7026-12G be installed in a rack system and which rack format is required?
The monitor is designed to be installed in a standard 19-inch rack designed and occupies 3 height units, i.e. 3RU. The compact design enables space-saving integration into existing rack infrastructures.
Which professional monitoring tools are available to the user?
The monitor offers, among other things, waveform display, histogram, false color, focus Peaking, Check Field and Color Bar as integrated analysis tools. These support camera operators and technicians in precise image control during recording or production.
How large is the viewing angle of the displays?
The displays offer a viewing angle of 160 degrees both horizontally and vertically. This means that the image remains easy to read even from the side, which is an advantage in multi-person production teams.
What contrast ratio do the displays have?
The contrast ratio is 1200:1, which provides a differentiated representation of bright and dark image areas and makes image assessment easier in professional monitoring situations.
Is it possible to link several monitors using the loop-out function?
Yes, the loop-out outputs of both displays allow several monitors to be easily linked Monitors. This makes it easier to set up larger monitoring setups without additional signal distributors.
For which areas of application is the RM7026-12G particularly suitable?
The monitor is for professional broadcast productions, live streaming, broadcast trucks and use in Video walls designed. The combination of 12G-SDI, HDMI 2.0 and high brightness means it covers a wide range of professional production environments.
Can the monitor be controlled remotely?
According to the product description, the RM7026-12G has a Remote control function that enables convenient operation even from a greater distance or with a built-in rack system.
