Lilliput BM150-4KS – 15.6 inch 4K field monitor
HDR monitor in a flight case with IPS panel and SDI
Special price: € 999.00
incl. VAT
( instead of 1188.81 )
839.50 € w/o vat
in stock
Shipping costarticle number: 12175 | manufacturer number: BM150-4KS | EAN/UPC: 6950821601563
The Lilliput BM150-4KS is a 15.6 inch HDR field monitor with real 4K resolution (3840 x 2160 pixels) professional 8-bit FRC IPS panel for best image quality at 330 cd brightness.
According to experts, an 8-bit FRC panel displays the colors/grayscales even better than a pure 10-bit panel.
Almost 40cm image diagonal, 3G HD-SDI, DVI and 4 x HDMI IN.
Operation with V-Mount batteries or with the included power supply.

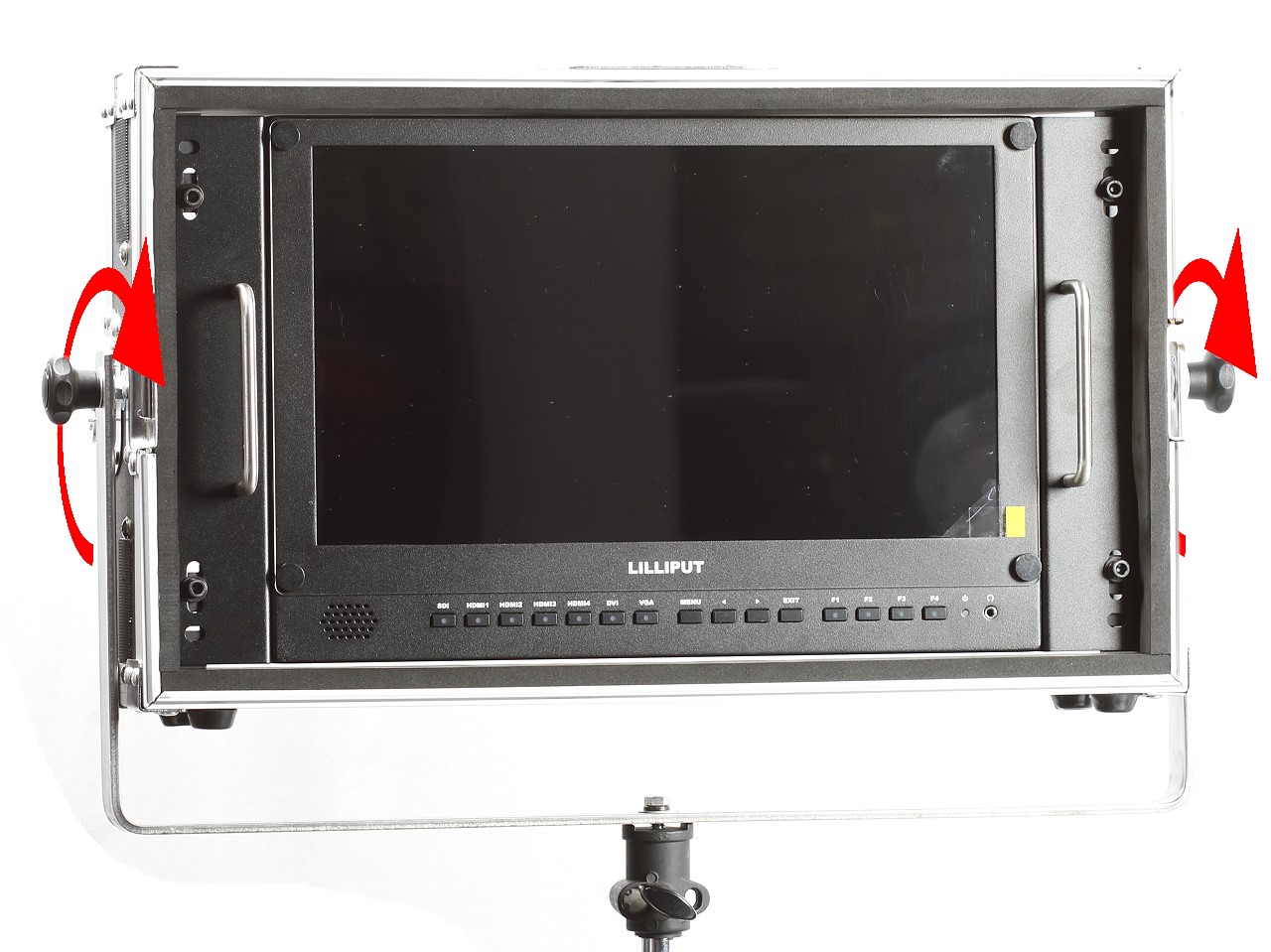

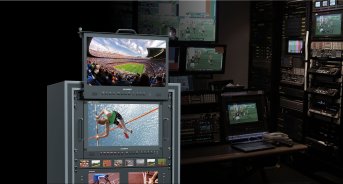

Includes flight case with front and rear lids. This monitor also fits perfectly into any 19 inch 6U rack.
Desktop foot for setting up on a table also included.
Scope of delivery: monitor, 19 inch flight case, glare protection, power supply, desktop feet.
- HDR-capable
- Supports 3D LUTs (also Native and Rec.709)
- Own 3D LUTs via USB stick
- Color Space
- 3D LUT and HDR
- HDR
- Time Code
- Histogram
- Exposure
- Level Meter
- False Color
- Improved Interlaced Display
Real product can look different to picture
techn. Specs▲
| Size | 15.6" |
|---|---|
| Resolution | 3840×2160 |
| Brightness | 330cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 176°/176°(H/V) |
| HDR | HDR 10 (under HDMI model) |
| Supported Log formats | Sony SLog / SLog2 / SLog3... |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Technology | Calibration to Rec.709 with optional calibration unit |
| SDI | 1×3G |
| HDMI | 2×HDMI 2.0, 2×HDMI 1.4 |
| DVI | 1 |
| VGA | 1 |
| SDI | 1×3G |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 1 |
| Operating power | ≤18W |
| DC In | DC 12-24V |
| Compatible batteries | V-Lock or Anton Bauer Mount |
| Input voltage (battery) | 14.4V nominal |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Dimension(LWD) | 389×267×38mm / 524×305×170mm (with case) |
| Weight | 3.4kg / 12kg (with case) |
Questions & Answers▲
What screen size and resolution does the BM150-4KS have?
The monitor has a 15.6 inch IPS panel with a native 4K resolution of 3840 x 2160 pixels with an aspect ratio of 16:9.

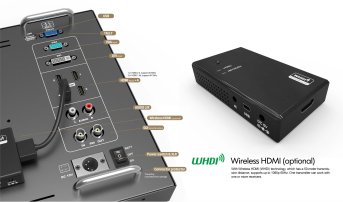

Which video inputs are available?
The monitor offers a 3G-SDI input, two HDMI 2.0 inputs, two HDMI 1.4 inputs, a DVI input and a VGA Input.
Does the monitor support HDR?
Yes, HDR 10 is supported. This function is available under HDMI model. In addition, 3D LUTs can be loaded for HDR workflows.
Which 3D LUT formats are supported and how do you load them?
The monitor supports 3D LUTs in.cube format. Your own LUT files can be easily read in via a USB stick. Native LUTs and Rec.709 are also integrated.
Which log formats are supported for image evaluation?
The monitor supports, among others, Sony SLog, SLog2 and SLog3 as well as other common log formats for the color-critical image assessment on set.
How is the monitor supplied with power?
Operation is possible via the included power supply as well as via V-Mount or Anton Bauer batteries. The nominal battery voltage is 14.4 V, the maximum operating power is 18 W.
Is a flight case included in the scope of delivery?
Yes, the BM150-4KS comes with a flight case with lids at the front and back as well Anti-glare protection supplied. The monitor can also be installed in a 19-inch rack with 6 rack units.
Can the monitor also be placed on a table?
Yes, a stand for placement on a table surface is included in the scope of delivery included.
Which monitoring functions are available for camera use?
The monitor offers, among other things, Histogram, False Color, Exposure, Level Meter, Time Code as well as an improved display of interlaced material as practical features Monitoring tools.
What brightness and contrast does the panel achieve?
The IPS panel achieves a brightness of 330 cd/m² with a contrast ratio of 1000:1, which enables good image assessment even under difficult conditions lighting conditions.
How large is the viewing angle of the panel?
The IPS panel offers a viewing angle of 176 degrees horizontally and vertically, so that the image can be perceived in true color and with high contrast even from side positions can.
Does the monitor have audio output?
Yes, there is a built-in speaker. There is also a 3.5 mm jack output for headphones or external speakers. Up to 12 audio channels with 48 kHz and 24 bit are transmitted via SDI, 2 channels with 24 bit via HDMI.
Can the monitor be calibrated for professional use?
Yes, the monitor supports calibration according to Rec.709 using an optional calibration unit and is therefore suitable for color-accurate assessments in professional production environments.
Which SDI signal formats are supported?
The following formats are supported via the 3G-SDI input: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30 and 1080p 24/25/30/50/60.
