Stainless steel tripod frame for Lilliput BM150 series
Compatible with BM150-4K, BM150-6G and BM150-12G
Special price: € 189.00
incl. VAT
( instead of 209.00 )
158.82 € w/o vat
in stock
Shipping costarticle number: 12414 | manufacturer number: LP150

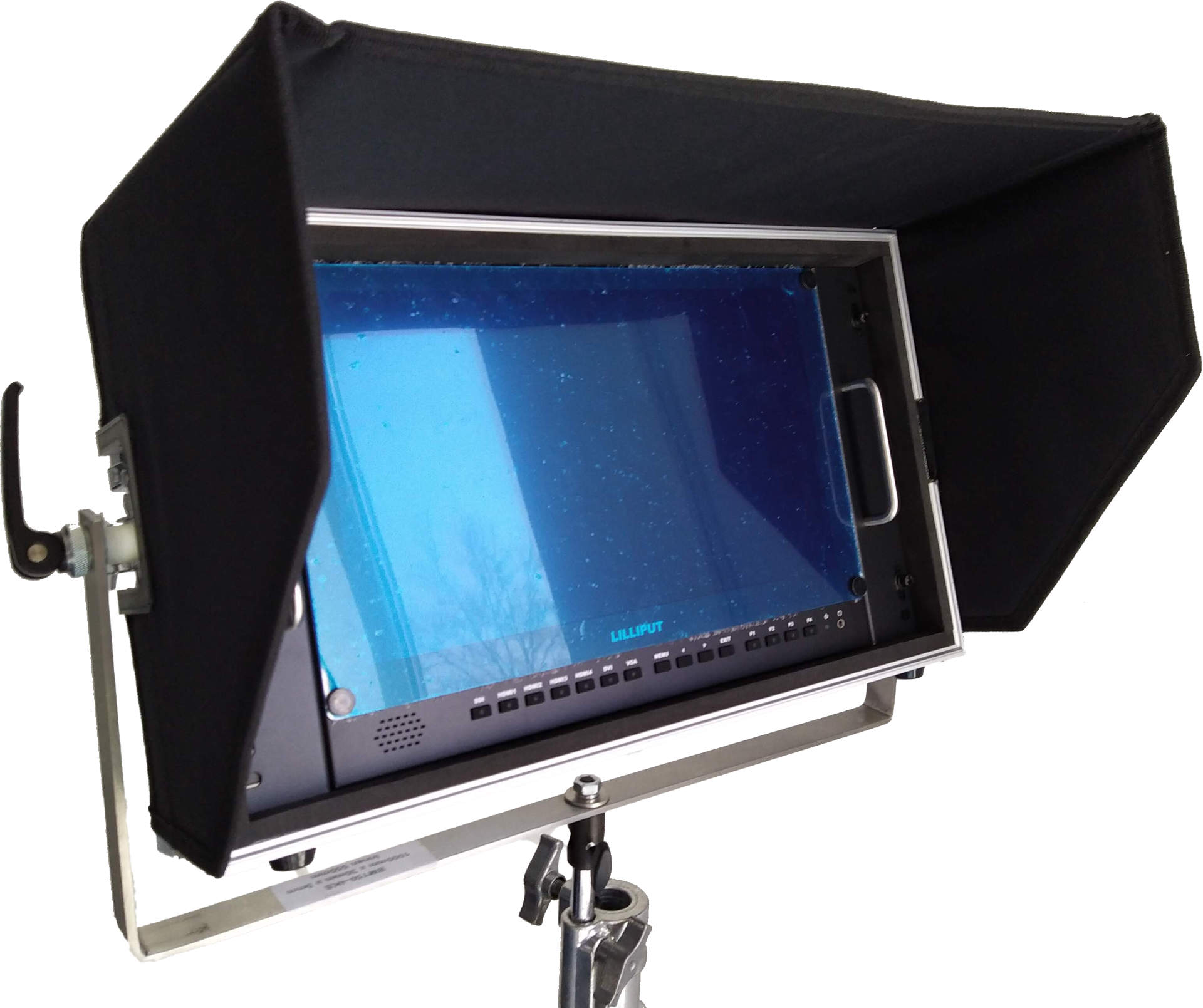

Custom-made tripod frame made of stainless steel for mounting Lilliput monitors of the BM150 Series on tripods.
The frame enables stable and at the same time flexible positioning of the monitor. The tilt angle is freely adjustable.
For the BM150 Series, a slim stainless steel profile with 30 mm width is used.
The existing sun shade is integrated with a precisely fitted cutout and cover frame.
Mounting is done using the included insert nuts. Assembly instructions are included.
Note: Delivery without monitor and flight case.
- Stainless steel swivel frame
- Clamping screw set
- Insert nuts
- Washers and spacer sleeves
- Cover frame for sun shade
- Tripod mount (optional)
- Assembly instructions
BM150-4K, BM150-4KS, BM150-6G, BM150-12G
| A | 30 mm standard spigot DIN 14640 (fire brigade / THW) |
|---|---|
| B | 28 mm (1 1/8") TV spigot |
| C | 16 mm (5/8") Spigot |
Real product can look different to picture
techn. Specs▲
| A | Fire brigade, THW standard spigot 30mm DIN 14640 |
|---|---|
| B | 28mm (1 1/8 inch) TV spigot (TV-Spigot) |
| C | 16mm (5/8 inch) spigot receiver (spigot) |
Questions & Answers▲
Which Lilliput monitor models is this tripod frame compatible with?
The frame is compatible with the Lilliput BM150-4K, BM150-4KS, BM150-6G, and BM150-12G monitors.
What material is the tripod frame made of?
The frame is individually manufactured from stainless steel, providing a robust and durable construction for professional use.
What is the profile width of the stainless steel frame?
The frame uses a slim stainless steel profile with a width of 30 mm, specifically designed for the BM150 series.
Can the tilt angle of the monitor be adjusted after mounting?
Yes, the tilt angle is freely adjustable, allowing flexible positioning of the monitor during use.
Is the existing sun shade of the BM150 monitor compatible with this frame?
Yes, the existing sun shade is integrated through a precisely fitted cutout and is additionally secured with an included cover frame.
What tripod mount options are available?
Three mount options are available: a 30 mm standard spigot DIN 14640 for fire brigade and THW use, a 28 mm TV spigot, and a 16 mm standard spigot receiver.
Is the tripod mount included in the standard delivery?
The tripod mount is available as an optional add-on and is not part of the standard scope of delivery.
What is included in the scope of delivery?
The delivery includes the stainless steel swivel frame, a clamping screw set, insert nuts, washers and spacer sleeves, a cover frame for the sun shade, and assembly instructions. The tripod mount is optional. The monitor and flight case are not included.
Are assembly instructions provided?
Yes, assembly instructions are included in the delivery to guide you through the mounting process.
Is the monitor included in the delivery?
No, the monitor is not included. The delivery contains only the tripod frame and the associated mounting accessories.
How is the frame attached to the monitor?
Mounting is done using the included insert nuts together with the clamping screw set and the provided washers and spacer sleeves.
Is the 30 mm DIN 14640 spigot suitable for fire brigade and THW deployments?
Yes, mount option A is a 30 mm standard spigot conforming to DIN 14640, which is the standard used by fire brigades and THW units in Germany.
