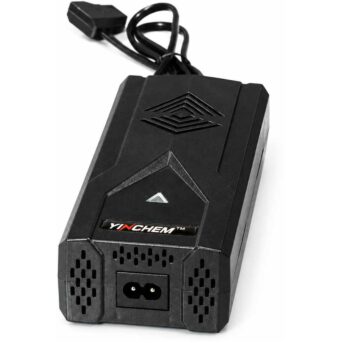

ROLUX YC-ZNC Fast Charger for V-Mount Batteries
120 W, 8 A with automatic capacity and resistance detection
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 11807 | manufacturer number: YC-ZNC | EAN/UPC: 758263170465
The ROLUX fast charger was developed for compatible V-Mount batteries of the YC series and enables short charging times directly on set, in the studio, or on the go.
The charging current is automatically adjusted to the capacity and condition of the inserted battery. This allows lithium-ion batteries with different capacities to be charged reliably and appropriate charging times to be supported.
The charger determines the internal resistance of the battery and adjusts the charging process accordingly. An integrated temperature-controlled fan supports heat dissipation during operation.
Additionally, the charger features short-circuit protection on the output.
- Automatic adjustment of charging current to battery capacity
- Suitable for lithium-ion batteries with different capacities
- Automatic adjustment of the charging process based on the determined battery internal resistance
- Integrated temperature-controlled fan
- Short-circuit protection on the output
Real product can look different to picture
techn. Specs▲
| Model | YC-ZNC |
|---|---|
| Input Voltage | 90–240 V AC |
| Charging Voltage | 16,8 V DC |
| Maximum Charging Current | 8,0 A |
| Maximum Charging Power | 120 W |
| Display | LED Display |
| Dimensions | 184 x 74 x 45 mm |
| Weight | 500 g |
Questions & Answers▲
Which batteries is this charger compatible with?
The ROLUX YC-ZNC is designed for V-Mount lithium-ion batteries of the YC series. It is not intended for use with batteries from other manufacturers or series unless they use the V-Mount form factor and meet the required voltage specifications.
What is the maximum charging power and current output?
The charger delivers a maximum charging power of 120 W at up to 8.0 A. The actual charging current is automatically adjusted based on the capacity and internal resistance of the connected battery.
Does the charger work with different input voltages?
Yes, the input voltage range is 90 to 240 V AC, which makes it suitable for use in most countries without requiring a voltage converter or adapter.
What charging voltage does the charger output?
The output charging voltage is 16.8 V DC, which corresponds to the nominal full-charge voltage of compatible V-Mount lithium-ion batteries in the YC series.
How does the automatic current adjustment work?
The charger measures the capacity and internal resistance of the inserted battery and adjusts the charging current accordingly. This means that batteries with different capacities are charged at an appropriate rate without manual configuration.
Is there any protection against short circuits?
Yes, the charger includes integrated short-circuit protection on the output, which helps prevent damage to both the charger and the connected battery in the event of a fault.
Does the charger have a cooling system?
An integrated temperature-controlled fan activates as needed during operation to support heat dissipation. The fan speed adjusts based on the internal temperature, which helps keep noise to a minimum when the thermal load is low.
How can I monitor the charging status?
The charger is equipped with an LED display that provides visual feedback on the current charging status during operation.
What are the physical dimensions and weight of the charger?
The charger measures 184 x 74 x 45 mm and weighs 500 g, making it compact and manageable enough to transport to a filming location or studio.
Can this charger be used on location or while traveling?
Due to its wide input voltage range of 90 to 240 V AC, its compact dimensions, and its weight of 500 g, the charger is well suited for use on set, in the studio, or when traveling internationally.
How long does it take to fully charge a battery?
The charging time depends on the capacity of the connected battery. Because the charger automatically adjusts the current based on the battery's capacity and internal resistance, charging times will vary. No fixed charging duration applies to all compatible batteries.
Is it possible to charge batteries with different capacities using the same charger?
Yes, the automatic detection of battery capacity and internal resistance allows the charger to handle V-Mount lithium-ion batteries of the YC series with varying capacities without requiring manual adjustments.
