Lilliput BM230-4KS 23.8 inch 4K HDR field monitor
Professional broadcast monitor with flight case
Artikelnummer: 12176 | Hersteller-Nummer: BM230-4KS | EAN: 6950821601587
The Lilliput BM230-4KS is a professional 23.8 inch HDR field monitor with native 4K resolution (3840 x 2160 pixels). The high-quality IPS panel with 8-bit FRC delivers detailed image reproduction, stable viewing angles and reliable image control for professional applications.
With a screen diagonal of over 60 cm and professional connectivity including 3G-HD-SDI, DVI and 4 x HDMI inputs, the monitor is ideal for broadcast, studio production, video editing, live production and camera monitoring.

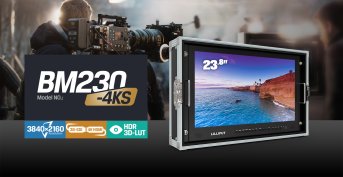

The unit can be operated either via V-mount batteries or the included power supply. Delivery includes a robust flight case with front and rear covers, glare protection and desktop stands for use on a table or workstation.
- Support for 3D LUTs, including Rec.709 and native presets
- Import custom 3D LUTs via USB stick
- Color space selection
- Timecode display
- Histogram for exposure control
- Exposure monitoring
- Audio level meter
- False color function
- Improved interlaced signal display
- 23.8 inch display with over 60 cm screen diagonal
- Native 4K resolution with 3840 x 2160 pixels
- 300 cd/m² brightness
- IPS technology with wide viewing angles
- 3G-HD-SDI, DVI and 4 x HDMI inputs
- Operation via power supply or V-mount battery
- Ideal for broadcast, studio, control room and mobile use
- Lilliput BM230-4KS monitor
- Flight case
- Glare protection
- Power supply
- Desktop stands
Suitable protective screen available for a small additional charge.
Real product can look different to picture
techn. Specs▲
| Size | 23.8" |
|---|---|
| Resolution | 3840×2160 |
| Brightness | 330cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 178°/178°(H/V) |
| HDR | HDR 10 (under HDMI model) |
| Supported Log formats | Sony SLog / SLog2 / SLog3... |
| Look up table (LUT) support | 3D LUT (.cube format) |

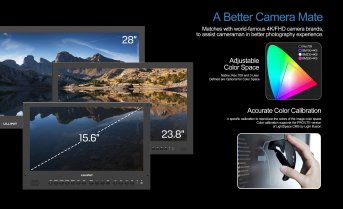

| Technology | Calibration to Rec.709 with optional calibration unit |
| SDI | 1×3G |
| HDMI | 2×HDMI 2.0, 2×HDMI 1.4 |
| DVI | 1 |
| VGA | 1 |
| SDI | 1×3G |
| SDI | 720p 50/60, 1080i 50/60, 1080p5F 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
| Operating power | ≤61.5W |
| DC In | DC 12-24V |
| Compatible batteries | V-Lock or Anton Bauer Mount |
| Input voltage (battery) | 14.4V nominal |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Dimension(LWD) | 579×376.5×45mm / 666×417×173mm (with case) |
| Weight | 8.6kg / 17kg (with case) |
Questions & Answers▲
What screen size and resolution does the Lilliput BM230-4KS offer?
The monitor has a screen diagonal of 23.8 inches, which corresponds to around 60 cm, and has a native resolution of 3840 x 2160 pixels, i.e. in real life 4K.
What type of panel is used and what viewing angles are possible?
An IPS panel with 8-bit FRC technology is installed. The viewing angle is 178 degrees both horizontally and vertically, which enables a stable and color-accurate display from almost all positions.
Which input ports are available?
The monitor offers 3G-HD-SDI, DVI and four HDMI inputs. This allows it to be flexibly integrated into professional broadcast and studio environments.
How is the monitor supplied with power?
Operation is possible either via the included power supply or via a V-mount battery, which allows for both stationary and mobile use allowed.
Is a flight case included in the scope of delivery?
Yes, a robust flight case with lids for the front and back is included in the scope of delivery. Desktop feet are also included for placement on a table or workstation.

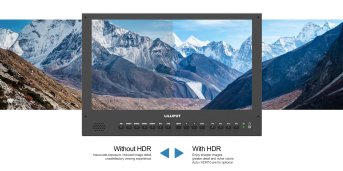

Does the monitor support HDR content?
Yes, HDR is supported. The monitor is therefore suitable for displaying and controlling high-dynamic-range material in professional production environments.
Can your own 3D LUTs be loaded?
Your own 3D LUTs can be loaded via USB stick import. In addition, presets such as Rec.709 and other native color space profiles are already preinstalled.
What monitoring functions does the monitor offer for image control?
Among other things, a histogram for exposure control is available Monitoring, an audio level meter, the false color function and a timecode display.
What is the maximum brightness of the display?
The brightness is 330 cd/m², which makes the image display easy to read even under brighter conditions Ambient conditions in the studio or control room area ensure.
What contrast ratio and aspect ratio does the monitor have?
The contrast ratio is 1000:1, the aspect ratio is 16:9, which is the common broadcast and video format corresponds.
For which areas of application is the monitor suitable?
The monitor is aimed at professional users in directing, studio, live production, video editing and camera monitoring. The V-mount power supply and the flight case make it also suitable for mobile field use.
Is a protective screen available for the monitor?
Yes, a suitable protective screen is available for a small additional charge and can be ordered separately
