Lilliput TK1019T – 10.1" Industrial Touch Monitor
1500 Nits Brightness, IP65 Front, HDMI/VGA/USB-C
Special price: € 299.00
incl. VAT
( instead of 309.00 )
251.26 € w/o vat
product already ordered
Shipping cost More from LilliputNo returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12777 | manufacturer number: TK1019T | EAN/UPC: 6950821602652
The Lilliput TK1019T is a 10.1-inch industrial touch monitor for control, monitoring, and visualization applications. The integrated capacitive 10-point touch function enables direct operation of user interfaces, machine controls, panel systems, and industrial applications.
With its high brightness of 1500 nits, the monitor is particularly suitable for bright production environments, outdoor areas, and applications with challenging lighting conditions. The display offers a resolution of 1920 x 1200 pixels in 16:10 format and enables detailed rendering of operator interfaces, camera images, measurement data, and dashboard applications.
The Lilliput TK1019T is the touchscreen variant of the TK1019 series. The version without touch function is available separately as the Lilliput TK1019C.
The capacitive 10-point touchscreen supports precise and convenient operation directly on the display. This makes the TK1019T particularly suitable for HMI applications, machine controls, operator panels, smart locker systems, and interactive control interfaces.
The touch function can be connected via USB-C, facilitating integration into modern control and computer systems.
With a luminance of 1500 nits, the image remains clearly visible even in strong ambient light. The wide viewing angle supports reliable readability from various positions.
The automatic brightness adjustment can regulate display brightness depending on ambient light, adapting the image to changing operating conditions.
The robust metal housing is designed for use in demanding industrial environments. The front panel is rated IP65, protecting it against dust and water jets.
The TK1019T offers connectivity options such as HDMI, VGA, and USB-C, enabling flexible connection to computers, controllers, and industrial playback systems.
Depending on the application, the monitor can be integrated into operator panels or mounted using compatible VESA accessories. This makes it suitable for machine controls, control cabinets, production systems, vehicle and marine applications, automation technology, and industrial control systems.
The scope of delivery includes a power supply, HDMI cable, USB-C cable, and mounting hardware. Optional accessories include a VESA 75 mm stand, a remote control, and an HDMI cable lock.
Please note: Images may differ from the product currently supplied. Some product photos have been scaled, background-removed or visually enhanced using artificial intelligence. The product features shown were not intentionally altered.
techn. Specs▲
| Model | TK1019T |
|---|---|
| Touchscreen | 10-Point PCAP Touchscreen |
| Panel | 10.1-inch LCD |
| Resolution | 1920 x 1200 Pixels |
| Aspect Ratio | 16:10 |
| Brightness | 1500 Nits |
| Contrast | 1000:1 |
| Viewing Angle | 170° / 170° (H/V) |

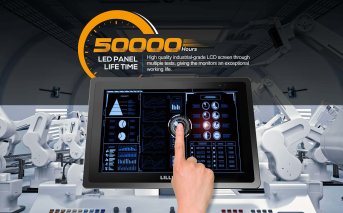

| LED Panel Lifespan | 50,000 Hours |
| Video Inputs | 1 x HDMI, 1 x VGA, 1 x USB Type-C |
| USB Type-C | For touch function, video signal or power supply |
| HDMI Formats | 2160p 24 / 25 / 30, 1080p 24 / 25 / 30 / 50 / 60, 1080i 50 / 60, 720p 50 / 60 and more |
| VGA Formats | 1080p 24 / 25 / 30 / 50 / 60, 1080psF 24 / 25 / 30, 1080i 50 / 60, 720p 50 / 60 and more |
| USB Type-C Formats | 2160p 24 / 25 / 30 / 50 / 60, 1080p 24 / 25 / 30 / 50 / 60, 1080i 50 / 60, 720p 50 / 60 and more |
| Speaker | 1 x Built-in |
| HDMI Audio | Available |
| Headphone Jack | 3.5 mm, 2-Channel, 48 kHz, 24 Bit |
| Input Voltage | 12–24 V DC |
| Power Consumption | ≤ 19 W at 12 V |
| IP Rating | IP65 Front Panel |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Dimensions | 264 x 183 x 35.6 mm (W x H x D) |
| Weight | 1.31 kg |
Questions & Answers▲
What screen size and resolution does the Lilliput TK1019T offer?
The Lilliput TK1019T features a 10.1-inch display with a resolution of 1920 x 1200 pixels in 16:10 format. This makes the monitor well suited for detailed display of user interfaces, measurement data, camera images and dashboard applications.
Does the TK1019T have a touch function?
Yes, the TK1019T is the touchscreen variant of the TK1019 series. It features a capacitive 10-point PCAP touchscreen for direct operation on the display.
How bright is the display?
The display achieves a brightness of 1500 nits. This keeps the image clearly readable even in strong ambient light, in bright production environments and in near-outdoor applications.
Does the monitor support automatic brightness adjustment?
Yes, the TK1019T supports automatic brightness adjustment. The display brightness can be regulated depending on ambient light conditions.
What connections are available?
The monitor features HDMI, VGA and USB Type-C. The USB-C port can be used for touch function, video signal or power supply depending on the connected device.
What is the protection rating of the front panel?
The front panel of the monitor is rated IP65. This means the front panel is protected against dust and water jets.
What applications is the TK1019T suitable for?
The TK1019T is suitable for industrial control, monitoring and visualisation applications. Typical use cases include HMI systems, machine controls, operator panels, smart locker systems, automation technology and production environments with high ambient brightness.
Is there also a variant without a touchscreen?
Yes, the version without touch function is available separately as the Lilliput TK1019C. The TK1019T is the version with capacitive touchscreen.
