Lilliput TK1019C – 10.1" Industrial Monitor
1500 Nits brightness, IP65 front, HDMI/VGA/USB-C
Special price: € 269.00
incl. VAT
( instead of 289.00 )
226.05 € w/o vat
product already ordered
Shipping cost More from LilliputNo returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12776 | manufacturer number: TK1019C | EAN/UPC: 6950821603932

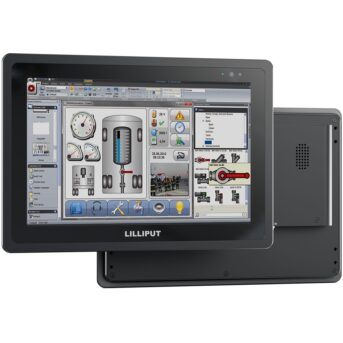

The Lilliput TK1019C is a 10.1-inch industrial monitor without touch functionality for control, monitoring, and visualization applications. With its high brightness of 1500 Nits, the monitor is particularly suited for bright production environments, outdoor areas, and applications with challenging lighting conditions.
The display offers a resolution of 1920 x 1200 pixels in 16:10 format and enables detailed rendering of control interfaces, camera images, measurement data, machine controls, or dashboard applications.
The Lilliput TK1019C is the variant without a touchscreen. The version with capacitive touch functionality is available separately as the Lilliput TK1019T.
With a luminance of 1500 Nits, the image remains clearly visible even in strong ambient light. The wide viewing angle supports reliable readability from different positions.
The automatic brightness adjustment can adapt the display brightness to the ambient light. This improves the image quality depending on the environment and supports energy efficiency during operation.
The robust metal housing is designed for use in demanding environments. The front panel is IP65-rated and therefore protected against dust and water jets.
Typical areas of application include machine controls, control cabinets, production facilities, vehicle and marine applications, smart locker systems, automation technology, as well as industrial operating and control systems.

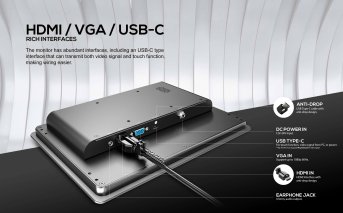

The TK1019C offers various connection options, including HDMI, VGA, and USB-C. This allows the monitor to be flexibly integrated into existing systems and connected to computers, controllers, or industrial playback devices.
Various mounting options are available. Depending on the application, the monitor can be integrated into control panels or mounted using compatible VESA accessories.
The scope of delivery includes a power supply, HDMI cable, USB-C cable, and mounting hardware. Optional accessories include a VESA 75 mm stand, a remote control, and an HDMI cable lock.
Please note: Images may differ from the product currently supplied. Some product photos have been scaled, background-removed or visually enhanced using artificial intelligence. The product features shown were not intentionally altered.
techn. Specs▲
| Model | TK1019C |
|---|---|
| Touchscreen | Not available |
| Panel | 10.1-inch LCD |
| Resolution | 1920 x 1200 pixels |
| Aspect Ratio | 16:10 |
| Brightness | 1500 Nits |
| Contrast | 1000:1 |
| Viewing Angle | 170° / 170° (H/V) |
| LED Panel Lifespan | 50,000 hours |
| Video Inputs | 1 x HDMI, 1 x VGA, 1 x USB Type-C |
| USB Type-C | For video signal or power supply |
| HDMI Formats | 2160p 24 / 25 / 30, 1080p 24 / 25 / 30 / 50 / 60, 1080i 50 / 60, 720p 50 / 60 and more |
| VGA Formats | 1080p 24 / 25 / 30 / 50 / 60, 1080psF 24 / 25 / 30, 1080i 50 / 60, 720p 50 / 60 and more |
| USB Type-C Formats | 2160p 24 / 25 / 30 / 50 / 60, 1080p 24 / 25 / 30 / 50 / 60, 1080i 50 / 60, 720p 50 / 60 and more |
| Speaker | 1 x built-in |
| HDMI Audio | Available |
| Headphone Jack | 3.5 mm, 2-channel, 48 kHz, 24 bit |
| Input Voltage | 12–24 V DC |
| Power Consumption | ≤ 19 W at 12 V |
| IP Protection Rating | IP65 front panel |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Dimensions | 264 x 183 x 35.6 mm (W x H x D) |
| Weight | 1.31 kg |
Questions & Answers▲
What resolution does the Lilliput TK1019C offer?
The Lilliput TK1019C offers a resolution of 1920 x 1200 pixels in 16:10 format. This makes the monitor suitable for detailed display of control interfaces, measurement data, camera images and dashboard applications.
How bright is the display of the TK1019C?
The display achieves a brightness of 1500 Nits. This keeps the display clearly readable even in strong ambient light, bright production environments and near-outdoor applications.
Does the Lilliput TK1019C have a touch function?
No, the TK1019C is the version without a touchscreen. For applications requiring touch operation, the Lilliput TK1019T is available as a separate variant with a capacitive 10-point touchscreen.
What connections does the monitor have?
The TK1019C features HDMI, VGA and USB Type-C. Via USB-C, either a video signal or power supply can be used depending on the connected device.
Is the TK1019C suitable for industrial applications?
Yes, the monitor is designed for industrial control, monitoring and visualisation applications. Typical areas of use include machine controls, control cabinets, production systems, vehicle and marine applications as well as automation technology.
What protection rating does the Lilliput TK1019C have?
The front of the monitor is protected to IP65. This means the front panel is protected against dust and water jets.
Does the brightness adjust automatically?
Yes, the monitor supports automatic brightness adjustment. The display brightness can be regulated depending on the ambient light.
What mounting options are available?
The TK1019C can be integrated into control panels or mounted with suitable VESA accessories depending on the application. Optional accessories include a VESA 75 mm stand, among others.
