Lilliput TK1330 – 13.3-Inch IPS Display
For industrial, media production and digital signage applications
Special price: € 332.00
incl. VAT
( instead of 389.00 )
278.99 € w/o vat
in stock
Shipping cost More from LilliputNo returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12510 | manufacturer number: TK1330-NP/C/T | EAN/UPC: 6950821601198

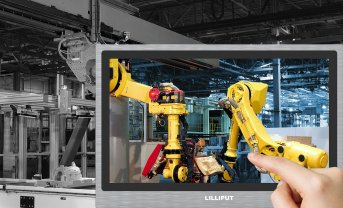

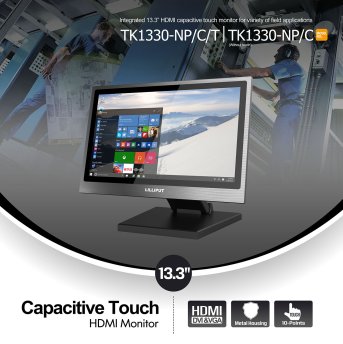

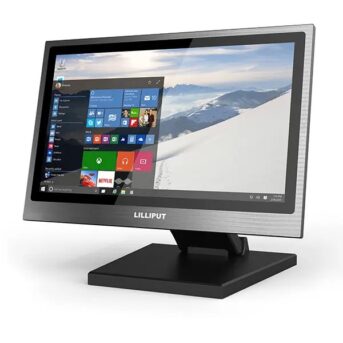

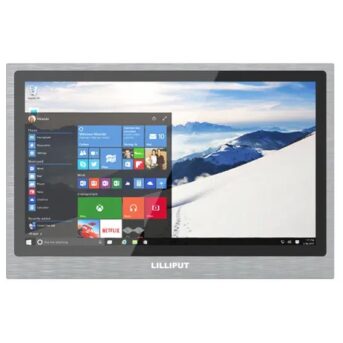

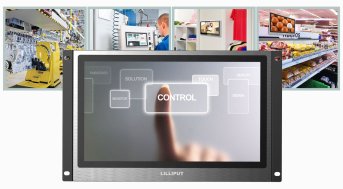

The Lilliput TK1330 is a versatile 13.3-inch monitor for professional applications in industry, media production, digital signage, surveillance, presentation, and OEM integration. Depending on the version, it is available with touch or non-touch functionality, making it suitable for both pure display tasks and interactive user interfaces.
The IPS panel provides a clear image with a wide viewing angle and is well suited for applications where content must be reliably readable from various positions. The touch variant supports convenient multi-point operation and can be used, for example, for control surfaces, information systems, or embedded operating solutions.
Thanks to its various video inputs, the TK1330 can be flexibly connected to computers, cameras, playback devices, control systems, or surveillance equipment. This makes the monitor suitable as an additional PC monitor, a control monitor for film and video production, a display for conference technology, or as a display unit in professional installations.
The robust metal housing supports use in more demanding environments and facilitates integration into fixed installations, equipment enclosures, showrooms, trade show booths, industrial controls, or custom display solutions.

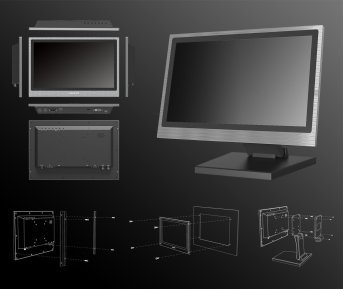

Thanks to various mounting options, the monitor can be flexibly attached to walls, brackets, tables, ceiling solutions, or in embedded applications. This makes the Lilliput TK1330 a practical solution for professional display and control concepts in a wide range of application areas.
Please note: Images may differ from the product currently supplied. Some product photos have been scaled, background-removed or visually enhanced using artificial intelligence. The product features shown were not intentionally altered.
techn. Specs▲
| Touchpanel | 10-point capacitive |
|---|---|
| Display Size | 13.3 inches |
| Resolution | 1920 x 1080 |
| Brightness | 300 cd/m² |
| Aspect Ratio | 16:9 |
| Contrast | 800:1 |
| Viewing Angle | 170° / 170° (H / V) |
| Video Input HDMI | 1 x HDMI |
| Video Input DVI | 1 x DVI |
| Video Input VGA | 1 x VGA |
| Video Input Composite | 1 x Composite Video |
| Supported HDMI Formats | 720p 50 / 60, 1080i 50 / 60, 1080p 50 / 60 |
| Audio Output | 3.5 mm headphone jack, 2 channels, 48 kHz, 24 bit |
| Speaker | Built-in speaker |
| Power Consumption | ≤ 8 W |
| DC Input | 7–24 V DC |
| Operating Temperature | -20 to 60 °C |
| Storage Temperature | -20 to 70 °C |
| Dimensions | 333.5 x 220 x 34.5 mm (L x W x D) |
| Weight | 1.9 kg |
Questions & Answers▲
What panel type does the Lilliput TK1330 use, and what viewing angle does it offer?
The TK1330 uses an IPS panel, which provides accurate color reproduction and wide viewing angles. This makes it suitable for applications where content must be clearly readable from various positions, such as control rooms, trade show booths, or digital signage installations.
What is the native resolution and screen size of this monitor?
The display measures 13.3 inches diagonally and offers a native resolution of 1920×1080 pixels at a 16:9 aspect ratio, delivering a sharp full HD image suitable for professional display and control tasks.
How bright is the display, and is that sufficient for use in well-lit environments?
The panel has a brightness of 300 cd/m², which is adequate for most indoor professional environments including control surfaces, conference rooms, and industrial settings. Direct sunlight or very high ambient light conditions may reduce visibility.
Which video inputs does the TK1330 support?
The monitor supports HDMI, DVI, and VGA inputs. This range of connections allows flexible integration with computers, cameras, playback devices, control systems, and surveillance equipment without requiring additional adapters in most standard setups.
Does this monitor support touch input, and how many touch points does it recognize?
The touch variant of the TK1330 features a 10-point capacitive touchscreen. This enables multi-touch gestures and makes the monitor suitable for interactive applications such as control panels, information kiosks, or embedded operating interfaces.
Is a non-touch version of this monitor also available?
Yes, the TK1330 is available in both touch and non-touch versions. The non-touch variant is intended for pure display applications where interactive input is not required, such as digital signage, surveillance monitoring, or secondary display outputs.
What power supply does the TK1330 require?
The monitor operates on a DC input voltage range of 7 to 24 volts. This wide voltage tolerance makes it compatible with a variety of power sources, including standard adapters, vehicle power systems, and industrial power supplies.
What housing material is used, and is the monitor suitable for demanding installation environments?
The TK1330 features a robust metal housing that supports use in more demanding professional environments. It is well suited for fixed installations in equipment enclosures, industrial control systems, showrooms, and trade show applications.
What mounting options are available for installing this monitor?
The monitor supports multiple mounting configurations, including wall mounts, brackets, table stands, ceiling solutions, and embedded installation options. This flexibility makes it practical for a wide range of professional display and control concepts.
Can this monitor be used in film and video production environments?
Yes, the TK1330 is suitable as a control monitor in film and video production. Its HDMI input, full HD resolution, and IPS panel allow reliable monitoring of camera feeds and playback signals in production setups.
Is this monitor suitable for OEM integration into custom systems or equipment?
The TK1330 is explicitly designed with OEM integration in mind. Its compact 13.3-inch form factor, metal housing, wide input voltage range, and available mounting options make it a practical choice for embedding into custom display solutions or professional equipment enclosures.
Can the TK1330 be used as a secondary monitor connected to a standard PC?
Yes, the monitor can function as an additional PC monitor. With HDMI, DVI, and VGA inputs available, it connects directly to most computers and can serve as an extended or mirrored display in workstation or presentation setups.
