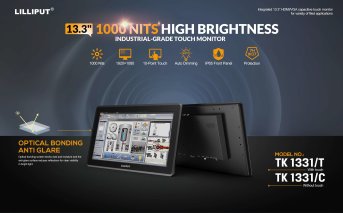

Lilliput TK1331T – 13.3" Industrial Touch Monitor
Full HD, 1000 Nits, Optical Bonding & Capacitive Touch
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12773 | manufacturer number: TK1331/T | EAN/UPC: 6950821605134
The Lilliput TK1331T is a rugged 13.3-inch industrial touch monitor for professional control and display applications in industry, automation technology, mechanical engineering, maritime applications, smart locker systems, surveillance and digital signage.

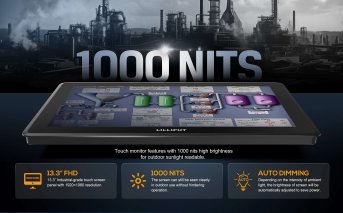

The bright Full HD display with 1000 nits is particularly suitable for bright environments and changing lighting conditions. The capacitive touch function enables direct on-screen operation and is suited for interactive control interfaces, machine visualization, operator panels and customer-specific OEM applications.

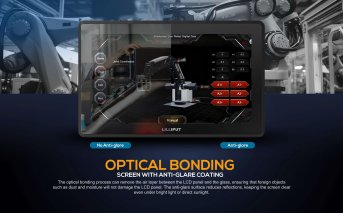

Optical bonding reduces or eliminates the air gap between the LCD panel and the protective glass. In combination with the anti-glare surface, this improves readability and reduces unwanted reflections in bright ambient light.

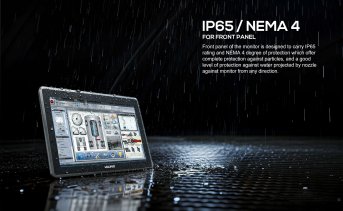

The rugged front panel is protected against dust and water jets. The durable front glass provides additional protection against mechanical stress in everyday industrial use.

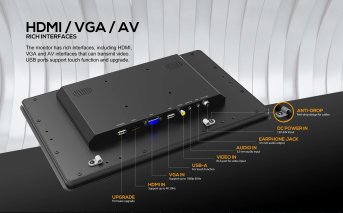

HDMI, VGA and AV are available for signal input. The touch function is connected via USB. This allows the TK1331T to be flexibly connected to computers, control systems, cameras, playback devices or industrial applications.

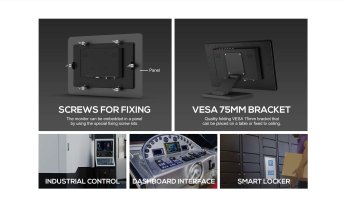

Depending on the application, the monitor can be installed as a built-in unit or mounted using a VESA bracket. Typical areas of use include industrial controls, dashboard displays, machine visualization, maritime displays, smart lockers, surveillance systems, information displays and professional touch control solutions.
Note: For pure display applications without touch functionality, the model Lilliput TK1331C is available as an alternative.
Please note: Images may differ from the product currently supplied. Some product photos have been scaled, background-removed or visually enhanced using artificial intelligence. The product features shown were not intentionally altered.
techn. Specs▲
| Panel | 13.3 inch LCD |
|---|---|
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 1000 cd/m² |
| Contrast | 1000:1 |
| Viewing Angle | 160° / 160° (H / V) |
| Touch Function | Yes, capacitive touchscreen |
| Touch Operation | 10-point touch |
| Glove Operation | Supports operation with suitable gloves |
| Coating | Anti-Glare |
| Optical Bonding | Yes |

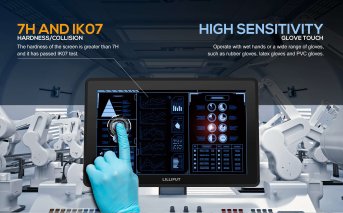

| Front Glass | Hardness ≥ 7H per ASTM D3363 |
| Impact Resistance | IK07 per IEC 6262 / EN 62262 |
| Video Input HDMI | 1 x HDMI |
| Video Input VGA | 1 x VGA |
| Video / Audio Input | 1 x AV / Audio |
| USB-A | 2 x USB-A for touch function and firmware upgrade |
| Supported HDMI Formats | 2160p 24 / 25 / 30, 1080p 24 / 25 / 30 / 50 / 60, 1080i 50 / 60, 720p 50 / 60 |
| Supported VGA Formats | 1080p 24 / 25 / 30 / 50 / 60, 1080pSF 24 / 25 / 30, 1080i 50 / 60, 720p 50 / 60 |
| Supported AV Formats | 480i 60 Hz, 576i 50 Hz |
| Speakers | 2 built-in speakers |
| HDMI Audio | 2 channels |
| Headphone Jack | 3.5 mm, 2 channels, 48 kHz, 24 bit |
| Input Voltage | DC 12–24 V |
| Power Consumption | ≤ 13 W at 12 V |
| Front Panel Protection Rating | IP65 per IEC 60529, Front NEMA 4 |
| Vibration | 1.5 Grms, 5–500 Hz, 1 hour per axis per IEC 6068-2-64 |
| Shock | 10G, half-sine wave, 11 ms per IEC 6068-2-27 |
| Operating Temperature | -20 to 60 °C |
| Storage Temperature | -30 to 70 °C |
| Dimensions | 339.5 x 211 x 35.5 mm (W x H x D) |
| Weight | 1.8 kg |
Questions & Answers▲
What screen size and resolution does the Lilliput TK1331T offer?
The TK1331T features a 13.3-inch LCD panel with a Full HD resolution of 1920 x 1080 pixels and a 16:9 aspect ratio.
How bright is the display and is it suitable for use in bright environments?
The display reaches a brightness of 1000 nits, making it well suited for bright ambient conditions and changing lighting situations, such as those found in industrial facilities or outdoor-facing installations.
What type of touch technology is used and how many touch points does it support?
The monitor uses a 10-point capacitive touch panel, which enables responsive and precise multi-touch interaction directly on the screen surface.
What is optical bonding and what advantage does it provide?
Optical bonding is a process that eliminates or significantly reduces the air gap between the LCD panel and the protective glass. Combined with the anti-glare surface, this improves readability and reduces unwanted reflections in bright ambient light.
Which video inputs are available on the TK1331T?
The monitor provides HDMI, VGA and AV inputs, allowing flexible connection to a wide range of source devices including computers, industrial control systems, cameras and playback devices.
How is the touch function connected to a computer or control system?
The capacitive touch function is connected via USB, making integration straightforward with most computers and industrial systems without requiring additional drivers in many cases.
Is the monitor protected against dust and water ingress?
The rugged front panel is protected against dust and water jets, and the durable front glass provides additional resistance to mechanical stress, making the unit suitable for demanding industrial environments.
What mounting options are supported?
The TK1331T can be installed as a built-in panel unit or mounted using a standard VESA bracket, offering flexibility for a variety of installation scenarios.
For which industries and applications is this monitor designed?
Typical areas of use include industrial automation, mechanical engineering, machine visualization, maritime displays, smart locker systems, surveillance installations, digital signage and professional touch control interfaces.
Is there a version of this monitor available without touch functionality?
Yes. The Lilliput TK1331C is available as an alternative for applications where only display output is required and touch interaction is not needed.
Can the TK1331T be used as an operator panel or HMI in machine environments?
Yes, the combination of Full HD display quality, 10-point capacitive touch and rugged construction makes it suitable for use as an operator panel, HMI or machine visualization interface in industrial settings.
Is the monitor suitable for OEM or custom integration projects?
The TK1331T is designed with OEM and custom integration in mind. Its built-in installation option, standard signal inputs and USB touch connection make it adaptable for customer-specific solutions.
