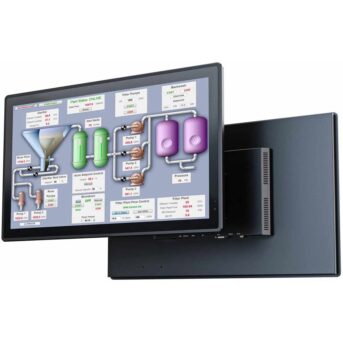

Lilliput TK2380/T 23.8 inch industrial touch monitor
1000 cd/m² Full HD display with 10-point touch and IP65 front
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12793 | manufacturer number: TK2380/T
The Lilliput TK2380/T is a professional 23.8 inch industrial touch monitor with a capacitive 10-point touchscreen, high screen brightness and a robust metal housing. With a brightness of 1000 cd/m², Full HD resolution and an anti-glare display surface, it is suitable for industrial control and visualisation applications as well as installations with demanding lighting conditions.
The IPS display offers a native resolution of 1920 × 1080 pixels, a contrast ratio of 1000:1 and a viewing angle of 178° horizontally and vertically. The robust front meets the protection requirements IP65 and NEMA 4.
The TK2380/T combines touch operation, flexible video connections and an extended operating temperature range in an industrially rated design.
The touch version TK2380/T features a capacitive PCAP touchscreen supporting up to ten simultaneous touch points. This makes the monitor suitable for interactive user interfaces, control terminals and industrial HMI applications.
According to the manufacturer, the touch technology also supports operation with suitable gloves. This allows the monitor to be used in working environments where operators wear protective gloves.
The touchscreen distinguishes the TK2380/T from the model variant TK2380/C, which has no touch function.
With a screen brightness of 1000 cd/m², the Lilliput TK2380/T is designed for bright indoor environments and suitable industrial outdoor installations. The anti-glare coating reduces unwanted reflections and supports good readability under varying lighting conditions.
The 23.8 inch IPS panel offers a native Full HD resolution of 1920 × 1080 pixels at an aspect ratio of 16:9. The wide viewing angle of 178° enables good image reproduction even when viewed from the side.

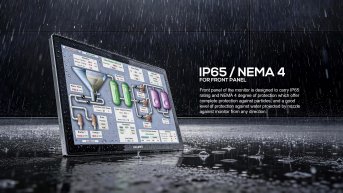

The front of the TK2380/T is protected to IP65 and NEMA 4. This makes the monitor particularly suitable for installation in industrial control panels, switch cabinets and comparable applications where the front face may be exposed to dust or spray water.
The display surface has a hardness of at least 7H per ASTM D3363. In addition, an impact resistance rating of IK07 per IEC 62262 is specified.

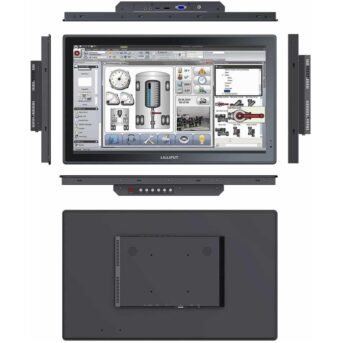

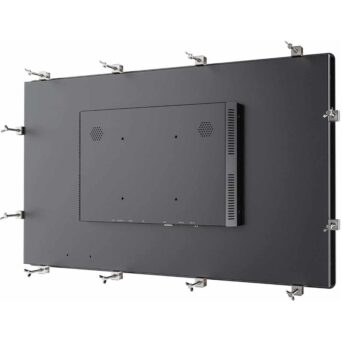

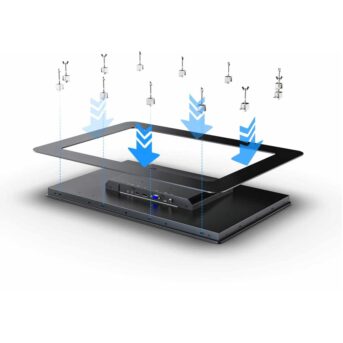

The robust metal housing supports long-term use in industrial environments. According to the manufacturer, both horizontal and vertical installation are possible.
Note: The IP65 protection rating applies specifically to the monitor front, not to the complete housing including connections.

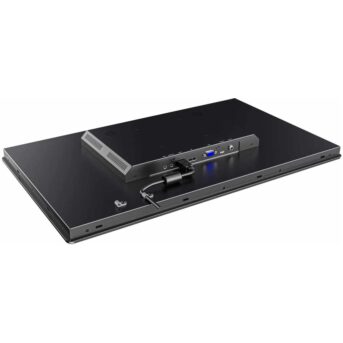

HDMI, VGA and DisplayPort are available for video connectivity. This allows the TK2380/T to be connected to both modern digital signal sources and existing VGA systems.
USB-C is listed by the manufacturer as an optional interface and should only be mentioned as an included feature if the specific unit being offered is equipped accordingly.
A 3.5 mm headphone jack is available as an audio output.
The monitor supports a DC input voltage range of 9 to 36 V, making it suitable for a variety of industrial power supply systems.
The specified operating temperature range extends from -20 °C to +60 °C. A VESA mount with 100 × 100 mm is available for installation.
With its robust metal housing, flexible mounting options and protected touch front, the TK2380/T is suitable for machine control systems, industrial visualisation systems, building automation and interactive information systems.
- 23.8 inch IPS industrial touch monitor
- Capacitive 10-point multitouch (PCAP)
- Support for touch operation with suitable gloves
- Native Full HD resolution of 1920 × 1080 pixels
- High screen brightness of 1000 cd/m²
- Anti-glare display surface
- IP65 and NEMA 4 protected front
- Surface hardness of at least 7H and impact resistance IK07
- HDMI, DisplayPort and VGA input
- USB-C for touch and video optionally available
- Two integrated speakers and 3.5 mm audio jack
- VESA mount 100 × 100 mm
- DC power supply from 9 to 36 V
- Operating temperature from -20 °C to +60 °C
- Robust metal housing
techn. Specs▲
| Manufacturer | Lilliput |
|---|---|
| Model | TK2380/T |
| Product Type | Industrial Touch Monitor |
| Screen Size | 23.8 inches |
| Panel Technology | IPS |
| Native Resolution | 1920 × 1080 pixels |
| Aspect Ratio | 16:9 |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° / 178° (H/V) |
| Touch Technology | 10-point capacitive touchscreen |
| Video Inputs | HDMI, VGA, DisplayPort |
| USB-C | Optional |
| Audio Output | 3.5 mm headphone jack |
| Input Voltage | DC 9–36 V |
| Power Consumption | ≤55 W (12 V) |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -30 °C to +70 °C |
| Dimensions (W × H × D) | 587.4 × 356.8 × 54.9 mm |
| VESA Mount | 100 mm |
| Weight | 7.6 kg |
Note: USB-C is listed by the manufacturer as an optional interface and is not part of the confirmed standard configuration. The TK2380/T variant is the version with a 10-point touchscreen.
Explore product ▲
Questions & Answers▲
What touch technology does the Lilliput TK2380/T use?
The Lilliput TK2380/T features a capacitive 10-point PCAP touchscreen. It supports multi-touch operation and can, according to the manufacturer, also be operated with suitable gloves. The model variant TK2380/C, on the other hand, does not have a touchscreen.
Is the Lilliput TK2380/T suitable for outdoor use?
The monitor has a brightness of 1000 cd/m², an anti-glare surface, and a front panel protected to IP65 and NEMA 4. It is therefore suitable for appropriate installations in bright and demanding environments. However, the IP65 protection rating applies only to the front panel, not to the complete enclosure.
Can the Lilliput TK2380/T display 4K video signals?
Yes. Via HDMI the monitor supports input signals up to 3840×2160p30, and via DisplayPort up to 3840×2160p60. The display itself has a native Full HD resolution of 1920×1080 pixels. 4K signals are scaled accordingly for display.
Does the Lilliput TK2380/T have USB-C?
USB-C is listed by the manufacturer as an optional interface for this product line. USB-C should therefore not be advertised as standard equipment for the TK2380/T unless this option has been explicitly confirmed.
What mounting and power supply options does the TK2380/T offer?
The Lilliput TK2380/T features a VESA mount with 100×100 mm and supports both horizontal and vertical installation. Power is supplied via DC 9 to 36 V. The specified operating temperature range extends from -20 °C to +60 °C.
