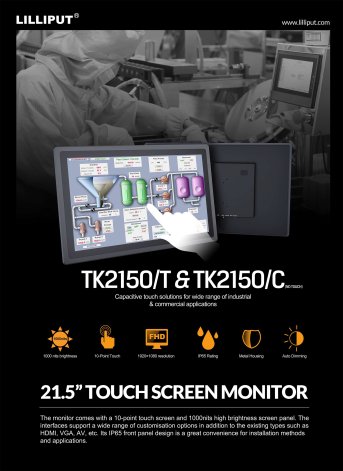

Lilliput TK2150/T 21.5" industrial touch monitor IP65
Full HD, 1000 nits, 10-point capacitive touch
article number: 12509 | manufacturer number: TK2150/T | EAN/UPC: 6950821602096
The Lilliput TK2150/T is a rugged 21.5 inch industrial touch monitor with Full HD resolution, 1000 cd/m² brightness and capacitive 10-point touch. It is ideal for industrial applications, control systems and interactive operator solutions in demanding environments.

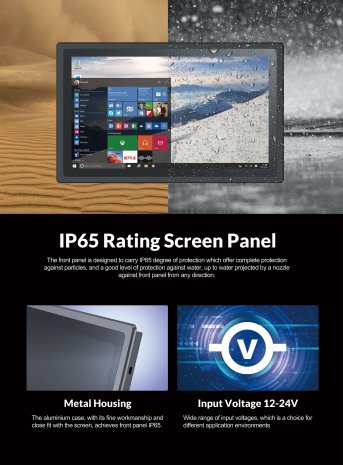

The IP65-protected front panel provides reliable protection against dust and water jets, enabling use in production environments, kiosk systems or outdoor settings.
- 21.5 inch Full HD display (1920 × 1080)
- Brightness: 1000 cd/m² (High Brightness)
- Capacitive 10-point touchscreen
- Good readability even at high ambient light levels
- HDMI
- VGA
- AV (Composite)
- Audio: integrated speakers and 3.5 mm headphone output
- IP65 front panel (dust- and water jet-protected)
- Rugged metal housing
- Suitable for industrial and demanding environments

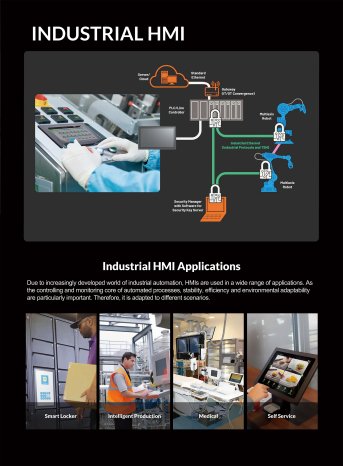

- Industrial and machine control
- Kiosk and POS systems
- Building automation
- Outdoor and semi-outdoor applications
Real product can look different to picture
techn. Specs▲
| Display Size | 21.5" LCD |
|---|---|
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Touchscreen | Capacitive, 10-point |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° / 178° (H/V) |
| Video Input (HDMI) | 2160p 24/25/30 · 1080p 24/25/30/50/60 · 1080i 50/60 · 720p 50/60 |

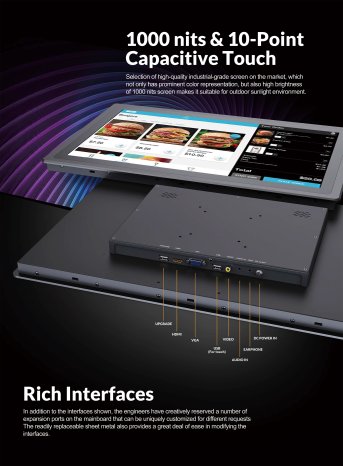

| Connections | 1× HDMI 1.4b · 1× VGA · 1× AV (Composite) |
| Audio | 2× built-in speakers · HDMI Audio (2-channel) · 3.5 mm headphone (2ch, 48 kHz, 24 bit) |
| Input Voltage | DC 12–24 V |
| Power Consumption | ≤ 37 W (at 15 V) |
| Protection Class | IP65 (front panel) |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | −20 °C to +60 °C |
| Dimensions (W × H × D) | 556 × 344.5 × 48.2 mm |
| Weight | approx. 6.0 kg |
Questions & Answers▲
What is the screen size and resolution of the Lilliput TK2150/T?
The monitor features a 21.5 inch LCD panel with a Full HD resolution of 1920 × 1080 pixels and a 16:9 aspect ratio.
How bright is the display and is it suitable for use in bright environments?
The display offers a brightness of 1000 cd/m², which ensures good readability even under high ambient light conditions, making it well suited for production floors, kiosk systems and semi-outdoor applications.
What type of touchscreen does the TK2150/T use and how many touch points does it support?
It uses a capacitive touchscreen that supports up to 10 simultaneous touch points, enabling precise multi-touch input for interactive operator solutions.
What protection rating does the monitor have?
The front panel is rated IP65, meaning it is fully protected against dust ingress and resistant to water jets. This protection applies to the front panel only.
Which video inputs are available on the TK2150/T?
The monitor provides one HDMI 1.4b input, one VGA input and one AV composite input, covering a wide range of signal sources used in industrial and legacy systems.
What resolutions and frame rates does the HDMI input support?
Via HDMI the monitor accepts 2160p at 24, 25 and 30 Hz, 1080p at 24, 25, 30, 50 and 60 Hz, 1080i at 50 and 60 Hz, as well as 720p at 50 and 60 Hz.
Does the monitor have built-in audio output?
Yes, it includes two built-in speakers and a 3.5 mm headphone output supporting 2-channel audio at 48 kHz and 24 bit. Audio can also be transmitted via HDMI.
What power supply does the TK2150/T require and how much power does it consume?
The monitor operates on a DC input voltage between 12 and 24 volts. Power consumption is 37 watts or less when measured at 15 V.
What are the operating and storage temperature ranges?
The operating temperature range is 0 °C to +50 °C. For storage, temperatures between −20 °C and +60 °C are permitted.
What are the physical dimensions and weight of the monitor?
The unit measures 556 × 344.5 × 48.2 mm (W × H × D) and weighs approximately 6.0 kg.
What viewing angles does the display offer?
The panel provides viewing angles of 178 degrees both horizontally and vertically, ensuring consistent image quality from nearly any viewing position.
What contrast ratio does the TK2150/T have?
The monitor has a contrast ratio of 1000:1, which contributes to clear image reproduction in typical industrial lighting conditions.
For which applications is the TK2150/T designed?
It is designed for industrial machine control, kiosk and POS systems, building automation and outdoor or semi-outdoor deployments where robustness, high brightness and reliable touch input are required.
