Lilliput Q23 23.8 Inch 12G-Sdi 8K Monitor
8K 12G-Sdi 23.8 Inch Monitor For Video Editing And Field Use
Artikelnummer: 12581 | Hersteller-Nummer: Q23-8k | EAN: 6950821602966
A 23.8 inch broadcast monitor with 8K capability for professional video production
The Lilliput Q23-8K is a state-of-the-art, 8K capable 23.8 inch broadcast monitor for film productions, studios and live broadcasts.
With With a variety of inputs including 12G-SDI, 12G-SFP+, 3G-SDI, HDMI 2.0 and more, this monitor offers exceptional flexibility for different broadcast setups.
With a native 4K resolution (3840 x 2160) and support for 8K over 12G-SDI Quadlink, the Lilliput delivers Q23-8K delivers impressive image clarity for high-resolution video applications.
Thanks to HDR support, this monitor offers improved color and brightness reproduction with support for the ST.2084 300, ST.2084 1000, ST.2084 10000 and HLG HDR formats. The monitor supports the Rec. 709 color space and 3D LUTs in .cube format, which can be uploaded via a USB stick to enable precise color calibration. The IPS display ensures a stable viewing angle of 176° in both directions and guarantees consistent color and image reproduction from every viewing angle. With 5 selectable color temperatures (3200K, 5500K, 6500K, 7500K, 9300K), the Lilliput Q23-8K allows complete control over color presentation and can be adjusted to suit different lighting situations. The Lilliput Q23-8K is the ideal choice for broadcast professionals, filmmakers and studio setups that require 8K-capable monitors with high image quality, HDR support and flexible connectivity options. Whether for live broadcasts, film productions or studio editing, this monitor offers the tools necessary to achieve precise and detailed results.

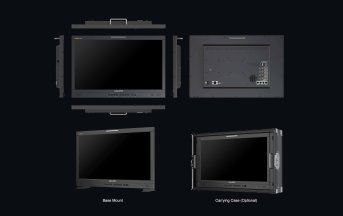

Real product can look different to picture
techn. Specs▲
- 12G-SDI quad-link support for 8K signal transmission
- Native 4K resolution (3840 × 2160)
- HDR support: ST.2084 300 / 1000 / 10000 and HLG
- Rec.709 color space for precise color reproduction
- Support 3D LUTs (.cube format) for advanced color calibration
- IPS panel with 176° viewing angle (horizontal / vertical)
- Maximum brightness: 350 cd/m²
- Contrast ratio: 1000:1
- Adjustable color temperatures: 3200K / 5500K / 6500K / 7500K / 9300K
- Ethernet and RS422 interface for remote control
- VESA mounting: 75 mm and 100 mm
- Four freely assignable function keys
- Integrated stereo speakers
- 12G SFP+ slot for expansion modules (module optional)
- Lissajous diagram for representing stereo audio signals
- Visualization of phase position and stereo balance for audio monitoring
- Video inputs: 12G-SDI, 3G-SDI, 12G-SFP+, HDMI 2.0
- Ethernet and RS422 port for remote control
- USB port for charging 3D LUTs
- V-mount battery plate for mobile operation (battery optional)
- AC power adapter for stationary operation
- V-mount battery plate for mobile use (battery not included)
| Display | Panel | 23.8" |
|---|---|---|
| Physical resolution | 3840 × 2160 | |
| Aspect ratio | 16:9 | |
| Brightness | 300 cd/m² | |
| Contrast | 1000:1 | |
| Viewing angle | 178° / 178° (H/V) | |
| HDR | ST2084 300 / 1000 / 10000 / HLG | |
| Supported log formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog / User | |
| LUT support | 3D LUT (.cube format) | |
| Calibration | Calibration to Rec.709 with optional calibration unit | |
| Video Input | SDI | 4 × 12G (8K SDI Quad Link) |
| SFP | 1 × 12G SFP+ (optional fiber module) | |
| HDMI | 1 × HDMI 2.0 | |
| Video Loop Output | SDI | 4 × 12G (8K SDI Quad Link) |
| HDMI | 1 × HDMI 2.0 | |
| Supported Formats | SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60 |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60 | |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60 | |
| Audio I/O (48kHz PCM) | SDI | 16 ch 48kHz 24-bit |
| HDMI | 8 ch 24-bit | |
| Ear Jack | 3.5mm | |
| Built-in Speakers | 2 | |
| Remote Control | RS422 | In / Out |
| GPI | 1 | |
| LAN | 1 | |
| Power | Input voltage | DC 12-24V |
| Power consumption | ≤ 60 W (15 V) | |
| Compatible batteries | V-Lock or Anton Bauer Mount | |
| Battery voltage | 14.8 V nominal | |
| Environment | Operating temperature | 0 °C – 50 °C |
| Storage temperature | -20 °C – 60 °C | |
| Other | Dimensions (L × W × H) | 567 × 376.4 × 45.7mm |
| Weight | 7.4 kg |
Questions & Answers▲
What maximum resolution does the monitor support?
The monitor has a native 4K resolution (3840 x 2160) and supports 8K over 12G-SDI Quadlink connection.
Which inputs are available?
The monitor offers 12G-SDI, 12G-SFP+, 3G-SDI, HDMI 2.0 and other inputs for flexible connection options in professional broadcast setups.
Which HDR formats are supported?
The monitor supports the HDR formats ST.2084 300, ST.2084 1000, ST.2084 10000 and HLG for improved color and brightness reproduction.
How big is the screen diagonal?
The monitor has a screen diagonal of 23.8 inches and is therefore ideal for editing and directing.
Which color space is supported?
The monitor supports the Rec. 709 color space for precise color reproduction in professional video applications.
Can you load your own LUTs?
Yes, the monitor supports 3D LUTs in .cube format, which can be uploaded via a USB stick for precise color calibration.
What color temperatures are available?
The monitor offers 5 selectable color temperatures: 3200K, 5500K, 6500K, 7500K and 9300K for different lighting situations.
What display technology is used?
The monitor uses an IPS display with a viewing angle stability of 176° in both directions for consistent color and image reproduction from any viewing angle.
For which areas of application is the monitor suitable?
The monitor is ideal for broadcast professionals, film productions, studios, live broadcasts and professional video editing.
What does 12G-SDI quad link mean?
12G-SDI Quad-Link enables the transmission of 8K signals by using four 12G-SDI connections in parallel for the highest data transfer rates.
