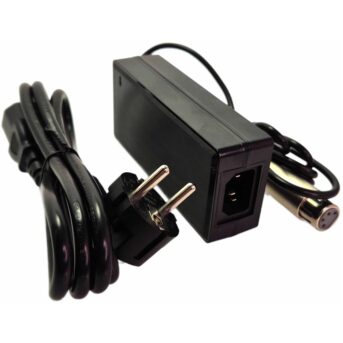

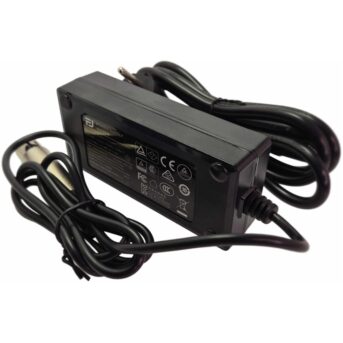

Lilliput LP-PS-15-4.8 – 72W Power Supply with XLR
15V / 4.8A DC Output for Broadcast Monitors
article number: 12697 | manufacturer number: LP-PS-15-4.8
The Lilliput LP-PS-15-4.8 is a high-performance 15V power supply for professional broadcast and studio monitors with an XLR power connection.
With an output power of 72 watts and a stable voltage supply, the power supply is ideal for stationary studio use as well as mobile productions.
The locking XLR connection ensures a secure and reliable power connection even in professional production environments.
Suitable for various Lilliput broadcast monitors as well as compatible devices with XLR power connection, including:
- Lilliput Q28 / Q28-8K
- Lilliput Q24 / Q24-8K
- Lilliput Q23 / Q23-8K
- Lilliput BM310-4KS
Real product can look different to picture
techn. Specs▲
| Model | Lilliput LP-PS-15-4.8 |
|---|---|
| Output | XLR socket 3-pin, 15 V DC / 4.8 A |
| Input | IEC connector 3-pin, 100–240 V AC, 50/60 Hz |
| Power | 72 Watt |
| Dimensions | 120 × 31 × 54 mm |
| Weight | approx. 460 g |
| Application | Broadcast, studio and production monitors |
Questions & Answers▲
What output voltage and current does the Lilliput LP-PS-15-4.8 provide?
The power supply delivers a stable DC output of 15 volts at 4.8 amperes, resulting in a total output power of 72 watts.
Which connector type is used for the DC output?
The DC output uses a locking 3-pin XLR socket, which ensures a secure and reliable connection in professional production environments.
What type of mains connector is used for the AC input?
The AC input uses a standard 3-pin IEC connector, compatible with mains voltages from 100 to 240 V AC at 50 or 60 Hz.
Is this power supply compatible with the Lilliput Q28 monitor?
Yes, the LP-PS-15-4.8 is compatible with both the Lilliput Q28 and the Q28-8K broadcast monitor.
Which other Lilliput monitors are officially supported?
In addition to the Q28 and Q28-8K, the power supply is compatible with the Q24, Q24-8K, Q23, Q23-8K, and the BM310-4KS broadcast monitor.
Can this power supply be used with non-Lilliput devices?
It can be used with other devices that require a 15V DC power input via a locking 3-pin XLR connector, provided the voltage and current requirements are compatible.
Is the LP-PS-15-4.8 suitable for mobile productions?
Yes, the power supply is designed for both stationary studio use and mobile productions, and its compact dimensions of 120 × 31 × 54 mm make it easy to transport.
How much does the power supply weigh?
The LP-PS-15-4.8 weighs approximately 460 grams.
Does the XLR connection have a locking mechanism?
Yes, the 3-pin XLR output connector features a locking mechanism, which prevents accidental disconnection during professional production use.
Is the power supply compatible with both 110V and 230V mains systems?
Yes, the input voltage range of 100 to 240 V AC makes it suitable for use worldwide, covering both 110V and 230V mains systems.
What is the physical size of the power supply unit?
The unit measures 120 millimetres in length, 31 millimetres in width, and 54 millimetres in height.
Is this power supply intended for professional broadcast applications?
Yes, it is specifically designed for use with broadcast, studio, and production monitors that require a stable and secure DC power source via XLR connection.
