Lilliput PVM160S-H – 15.6" Broadcast Monitor
1200 Nits, HDR, 3D-LUT, SDI & HDMI for Video Production
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12766 | manufacturer number: PVM160S-H | EAN/UPC: 6950821604908

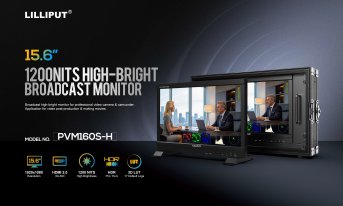

The Lilliput PVM160S-H is a bright 15.6-inch broadcast monitor for video production, live broadcast, film sets and mobile production environments. Its high panel brightness makes it particularly suitable for use in daylight, outdoor shoots and changing lighting conditions.

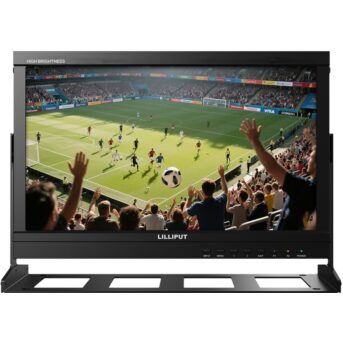

The Full HD panel in 16:9 format delivers a clear monitor image and supports professional workflows with SDI and HDMI signal sources. This allows the monitor to be used in both classic broadcast setups and with modern cameras, camcorders and playback devices.
For on-set image control, the PVM160S-H offers numerous monitoring tools for evaluating color, exposure, focus, framing and signal quality. This allows the monitor to support camera operators, directors and technical teams in reliably checking the camera image directly on set.

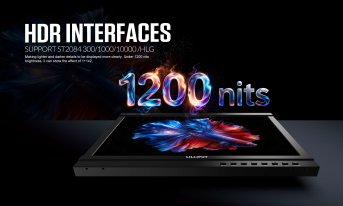

The monitor supports HDR workflows and enables realistic evaluation of bright and dark image areas directly during recording. The integrated 3D LUT function allows looks and log signals to be better assessed on set.
Custom LUTs can be imported via USB. Additionally, pre-installed LUTs and user-defined memory slots are available, allowing the PVM160S-H to be flexibly adapted to different cameras, production styles and color workflows.

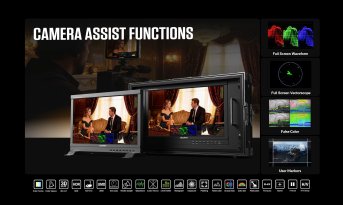

Extensive assist functions are available for professional image control. These include color temperature, color space, 3D LUT, HDR, gamma, UMD, timecode, vectorscope, waveform, audio vector, level meter, histogram, exposure, peaking, false color, check field, color bar, pixel zoom, pixel-to-pixel, markers, freeze and H/V delay.
These functions assist with monitoring exposure, focus, color reproduction, framing, audio signal and signal quality. Particularly in live productions, multi-operator camera setups and HDR or log workflows, the monitor provides practical on-set support.
The Lilliput PVM160S-H features SDI and HDMI connections with loop outputs, making it easy to integrate into existing signal chains. A headphone output and a built-in speaker are available for audio monitoring.
Power can be supplied via the included power supply. Optionally, the monitor can be prepared for mobile use with compatible battery plates. Through VESA mounting options and optional accessories, the monitor can be used on set, on tripods, in production cases or in rack-style installations.
- 15 V / 4 A DC power supply
- Stand / Base Bracket
- Battery plate with D-Tap cable
- Flight case with sun hood
- Rack mount bracket for case installation
- Gimbal bracket
The PVM160S-H is suitable for camera monitoring, director's workstations, mobile broadcast applications, film productions, live events, studio use and outdoor shoots where a bright and versatile production monitor is required.
Please note: Images may differ from the product currently supplied. Some product photos have been scaled, background-removed or visually enhanced using artificial intelligence. The product features shown were not intentionally altered.
techn. Specs▲
| Display Size | 15.6 inches |
|---|---|
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 1200 cd/m² |
| Contrast | 1000:1 |
| Viewing Angle | 160° / 160° (H / V) |
| HDR Support | ST2084 300 / 1000 / 10000 / HLG |
| Supported Log Formats | SLog2, SLog3, CLog, NLog, ArriLog, JLog and custom log formats |
| LUT Support | 3D LUT in .cube format |
| Calibration | Rec.709 calibration with optional calibration unit |
| Video Input SDI | 1 x 3G-SDI |
| Video Input HDMI | 1 x HDMI 2.0 |
| Video Loop Output SDI | 1 x 3G-SDI |
| Video Loop Output HDMI | 1 x HDMI 2.0 |
| Supported SDI Formats | 1080p 24 / 25 / 30 / 50 / 60, 1080pSF 24 / 25 / 30, 1080i 50 / 60 |
| Supported HDMI Formats | 2160p 24 / 25 / 30 / 50 / 60, 1080p 24 / 25 / 30 / 50 / 60, 1080i 50 / 60, 720p 50 / 60 |
| SDI Audio | 2 channels, 48 kHz, 24 bit |
| HDMI Audio | 8 channels, 24 bit |
| Headphone Jack | 3.5 mm |
| Speaker | Built-in speaker |
| Input Voltage | DC 9–24 V |
| Power Consumption | 39 W at 15 V |
| Battery Operation | V-Lock or Anton Bauer battery mounts optional |
| Battery Input Voltage | 14.8 V nominal |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 60 °C |
| Dimensions | 376 x 247.7 x 49.3 mm (W x H x D) |
| Weight | 3.15 kg |
Questions & Answers▲
What is the panel brightness of the Lilliput PVM160S-H?
The panel delivers a brightness of 1200 nits, making it well suited for outdoor shoots, daylight conditions and environments with strong ambient light.
What screen size and resolution does this monitor offer?
The monitor features a 15.6-inch Full HD panel in a 16:9 aspect ratio, providing a clear and detailed image for professional on-set monitoring.
Which video inputs and outputs are available?
The monitor is equipped with both SDI and HDMI connections, including loop outputs, allowing it to be integrated into classic broadcast setups as well as modern camera and playback workflows.
Does the monitor support HDR workflows?
Yes, HDR is supported. This allows bright and dark image areas to be evaluated realistically during recording, which is particularly useful in HDR and log-based production workflows.
What 3D LUT capabilities does the PVM160S-H provide?
The monitor includes an integrated 3D LUT function with pre-installed LUTs and user-defined memory slots. Custom LUTs can be imported via USB, enabling adaptation to different cameras, color workflows and production styles.
Which exposure and focus assist tools are built in?
Built-in tools include peaking for focus control, false color and histogram for exposure evaluation, as well as pixel zoom and pixel-to-pixel display for detailed image inspection.
What scopes and signal analysis tools are available?
The monitor provides vectorscope, waveform, audio vector and level meter, allowing camera operators and technical teams to evaluate color accuracy, exposure levels and audio signals directly on set.
Does the monitor display timecode and UMD information?
Yes, both timecode and UMD (Under Monitor Display) are supported, which is useful for identifying sources and maintaining overview in multi-camera and live production setups.
Can framing markers be configured on the display?
Configurable markers are available to assist with framing, safe area control and composition checks during recording or live broadcast situations.
Is the monitor suitable for outdoor and mobile production use?
The high panel brightness of 1200 nits and the comprehensive set of monitoring tools make this monitor well suited for outdoor shoots, mobile production units and changing lighting conditions on location.
Which color and gamma settings are supported?
The monitor offers adjustable color temperature, color space settings and gamma options, allowing the display to be calibrated and adapted to different signal characteristics and production requirements.
Does the monitor include a freeze function and H/V delay?
Yes, both a freeze function and horizontal and vertical delay are available, providing additional options for signal analysis and image timing checks during production.
