Lilliput PVM220S-FC 21.5" multiview monitor with flight case
SDI HDMI USB-C monitor for live streaming
Special price: € 769.00
incl. VAT
( instead of 799.00 )
646.22 € w/o vat
in stock
Shipping costarticle number: 12373 | manufacturer number: PVM220S-FC | EAN/UPC: 6950821602027
The Lilliput PVM220S-FC is a professional 21.5" Full HD multiview monitor for live streaming, multi-camera productions, events, studio use and mobile production setups. The unit can display up to four 1080p video signals simultaneously, making it particularly suitable for productions where multiple cameras or sources need to be monitored clearly.

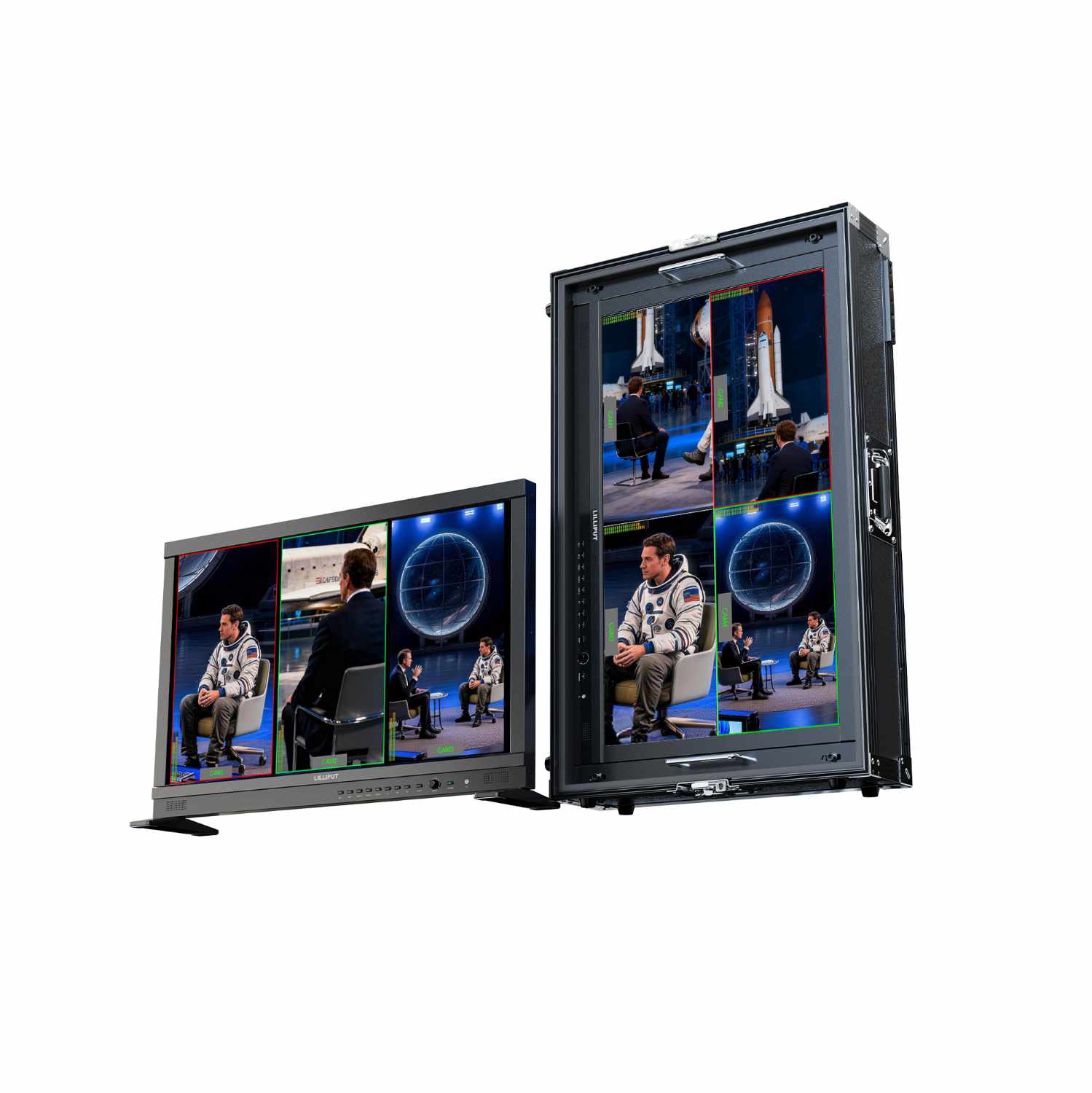

The FC version is supplied with a flight case and sun hood, making it designed for frequent transport, quick setup and use in changing production environments. A pan/tilt bracket for tripod mounting is available as an optional accessory.
The PVM220S-FC combines multiview monitoring with functions for simple live switching. Via SDI, HDMI and USB Type-C, up to four signal sources can be integrated and monitored as a quad-split or in other views.
With PVW and PGM functionality, sources can be checked in advance and then output as the program signal. This makes the monitor suitable for compact live setups where monitoring and signal switching are to be combined in a single device.
The integrated phone mode supports the display of vertical video signals from mobile devices. This is particularly useful for modern streaming productions, social media formats, online presentations and hybrid events where content from smartphones needs to be incorporated directly into the production workflow.
This feature allows the PVM220S-FC to flexibly integrate not only conventional camera sources but also mobile video sources into multi-camera workflows.
Numerous assist functions are available for professional image control. These include focus peaking, exposure display, histogram, false color, aspect marker, safety marker and center marker. These tools assist in assessing sharpness, exposure, framing and brightness distribution.
The integrated level meter displays the audio levels of the input signals. False color supports ARRI- and RED-oriented displays among others, and makes it easier to assess different brightness ranges in the image.
The 21.5" panel offers a resolution of 1920x1080 pixels in 16:9 format. With 500 nit brightness, 1500:1 contrast and a viewing angle of 170° horizontally and vertically, the monitor is suitable for production desks, control positions and mobile production environments.
The feature set includes two SDI inputs, two HDMI inputs and one USB Type-C input. Various HD signal formats from 720p to 1080p are supported. Additionally, the monitor features a 3.5 mm headphone jack, an integrated speaker and audio processing for SDI and HDMI signals.
- Live streaming with multiple cameras
- Mobile production desks and compact production setups
- Church events, lectures and presentations
- Interviews, training sessions and hybrid events
- Live music events, sports broadcasts and club productions
- Monitoring of DSLR, camcorder, SDI, HDMI and USB-C sources
Standard accessories include a 15 V DC power supply, stand, USB Type-C cable and user manual. The PVM220S-FC version offered here is additionally supplied with a flight case and sun hood.
Optional accessories include a battery plate with D-Tap cable as well as a pan/tilt bracket for tripod mounting.
Real product can look different to picture
techn. Specs▲
| Panel | 21.5" |
|---|---|
| Physical Resolution | 1920×1080 |
| Aspect Ratio | 16:9 |
| Brightness | 500 nit |
| Contrast | 1500:1 |
| Viewing Angle | 170°/170° (H/V) |
| SDI × 2 | 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more signals... |
| HDMI × 2 | 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more signals... |
| USB Type-C × 1 | 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more signals... |
| SDI × 2 | 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more signals... |
| PGM HDMI/SDI × 1 | PGM HDMI/SDI × 1 1080p 60/50/30/25/24 |
| SDI | 2ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speaker | 1 |
| Input Voltage | DC 12-24V |
| Power Consumption | ≤33W (15V) |
| Operating Temperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C |
| Dimension (LWD) | 508mm×321mm×47mm |
| Weight | 5.39kg |
Questions & Answers▲
What screen size and resolution does the Lilliput PVM220S-FC offer?
The monitor features a 21.5-inch Full HD display, providing a resolution of 1920x1080 pixels for sharp and detailed image representation across all connected sources.
How many video sources can be displayed simultaneously?
Up to four 1080p video signals can be displayed at the same time using the quad-split view, allowing operators to monitor multiple cameras or sources on a single screen without switching between them.
Which video input connections are supported?
The monitor supports SDI, HDMI and USB Type-C inputs, allowing a wide range of professional cameras, computers and mobile devices to be connected directly.
Does the monitor support live switching between sources?
Yes, the unit includes PVW and PGM functionality, which allows sources to be previewed before being selected as the active program signal. This makes it suitable for compact live production setups where monitoring and basic switching are combined in one device.
What is included in the FC version?
The FC version comes supplied with a flight case and a sun hood. These accessories make the unit ready for frequent transport, quick deployment and use in outdoor or changing production environments.
Is a tripod mount available for the monitor?
A pan/tilt bracket for tripod mounting is available as an optional accessory, offering additional flexibility for positioning the monitor in different production setups.
Can vertical video signals from smartphones be displayed?
Yes, the integrated phone mode supports vertical video signals from mobile devices. This is particularly useful for social media productions, online streaming formats and hybrid events where smartphone content needs to be incorporated directly into the multi-camera workflow.
What monitoring and image control tools are available?
The monitor includes a range of professional assist functions such as focus peaking, false color, histogram, exposure display, aspect marker, safety marker and center marker, supporting accurate image control and signal evaluation during live productions.
Is the Lilliput PVM220S-FC suitable for mobile productions?
Yes, the combination of the flight case, sun hood, compact form factor and broad input connectivity makes it well suited for mobile production environments, events and locations where equipment needs to be transported and set up quickly.
Can the monitor be used in a fixed studio environment as well?
Yes, the monitor is designed for both mobile and studio use. Its multiview capabilities and monitoring tools make it a practical choice for permanent studio setups where multiple signal sources need to be evaluated continuously.
