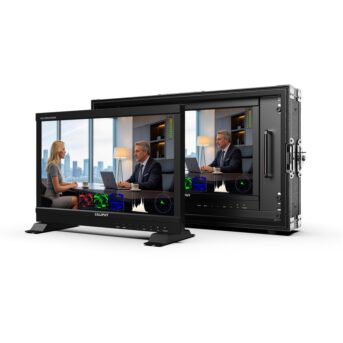

Lilliput PVM160S-H-FC broadcast monitor with flight case

The Lilliput PVM160S-H-FC combines a professional 15.6-inch broadcast monitor with 1200 cd/m² brightness and a matching flightcase for mobile video and broadcast productions. The set includes the Lilliput PVM160S-H Full HD monitor as well as the flightcase of the PVM160 series with rackmount frame and sun shade.

The combination is particularly suited for applications where a high-performance preview monitor needs to be transported regularly, set up on location, and used under varying lighting conditions.

The integrated high-brightness monitor offers professional image control with 3G-SDI, HDMI 2.0, HDR, 3D-LUT, as well as waveform and vectorscope functions. The flightcase adds a protected transport and deployment solution.

In mobile productions, control monitors must not only deliver a reliable image, but also be transported safely and positioned quickly at the deployment location. The PVM160S-H-FC therefore combines the monitor and a matching flightcase in a coordinated set.

The included rackmount frame allows the monitor to be mounted in the flightcase. This enables the system to be used at changing production locations for camera control, mobile director's stations, live events or field productions.

The sun shade reduces disruptive lateral light. Together with the monitor's high brightness of 1200 nits, this improves the readability of the camera image in bright ambient conditions.

The included PVM160S-H monitor features a 15.6-inch display with a native Full HD resolution of 1920×1080 pixels. It supports HDR display as well as 3D-LUTs in .cube format for previewing different log and color profiles.

Professional monitoring tools such as waveform, vectorscope, histogram, false color, focus peaking and audio level metering assist in evaluating exposure, focus, color and audio.

Image control can thus be performed directly in mobile production environments without relying on the camera's built-in displays.

For integration into professional video signal chains, a 3G-SDI input and an HDMI 2.0 input are available. Both interfaces each have a corresponding loop output for passing the video signal on to additional devices.

Via HDMI 2.0, the monitor processes input signals up to 3840×2160p60. The image is scaled to the panel's native Full HD resolution. The 3G-SDI input supports common HD broadcast formats up to 1080p60.

This range of connections is suitable for cameras, video mixers, director systems and other professional signal sources.

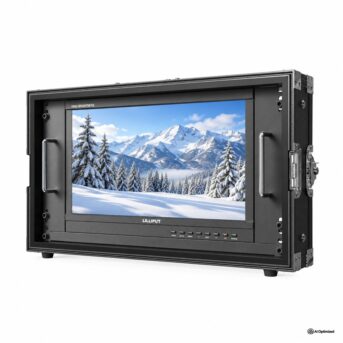

The included Lilliput PVM160 flightcase is specifically designed for monitors of the PVM160 series. It serves as protected storage and transport for the monitor between different production locations.

The rackmount frame included with the set allows the monitor to be secured in the flightcase. The sun shade assists with image evaluation in the presence of lateral light and changing lighting conditions.

For additional mounting requirements, a stainless steel swivel frame is available on request. This is not part of the standard set configuration.

• 1 × Lilliput PVM160S-H 15.6-inch High-Brightness Broadcast Monitor
• 1 × Lilliput PVM160 Flightcase
• 1 × Matching Rackmount Frame
• 1 × Sun Shade for flightcase operation
• 1 × 15 V / 4 A DC power supply for the monitor
• Stand / Base Bracket for the monitor

Note: Optional battery plates and the stainless steel swivel frame available on request are not part of the standard scope of delivery. The flightcase is part of this complete set and does not need to be ordered separately.
