Lilliput PVM220S-H 21.5 inch broadcast monitor 1000 cd/m²
Full HD professional monitor with HDR, 3D LUT and SDI/HDMI
article number: 12612 | manufacturer number: PVM220S-H | EAN/UPC: 6950821604182
The LILLIPUT PVM220S-H is a professional 21.5 inch broadcast Monitor with Full HD resolution and a high brightness of 1000 cd/m². It was developed for demanding applications in video production, broadcasting and on film sets. With its resolution of 1920 x 1080 pixels in a 16:9 format, the monitor offers precise and clear image representation. Thanks to the high brightness, the image remains clearly visible even in strong ambient light and outdoor use, making the PVM220S-H ideal for professional productions under changing lighting conditions.
The PVM220S-H supports various HDR standards, including ST2084 300 / 1000 / 10000 as well as HLG. This means that brightness gradations in light and dark image areas can be displayed much more precisely. With a brightness of 1000 cd/m², a contrast ratio of 1000:1 and a wide viewing angle of 178° horizontally and vertically the monitor enables consistent image and color representation from almost every perspective. This is particularly important for the reliable assessment of image signals in professional production environments.
One of the important functions of the LILLIPUT PVM220S-H is the built-in 3D LUT support with 17 preset LUTs and 6 custom LUTs. Your own LUT files can be imported via USB to use different color styles and looks directly on the monitor. This is particularly practical for professional users who want to carry out precise color assessment and preview on set. Various log formats are supported such as SLog2, SLog3, CLog, NLog, Arri Log and JLog.
The monitor has extensive monitoring and analysis functions for professional use. These include, among others, Waveform, Vectorscope, False Color, Histogram, Peaking, Exposure, Timecode, Level Meter, Check Field, Color Bar, Pixel Zoom and Freeze. These features help camera operators, image engineers and video producers precisely control exposure, focus, signal levels and color representation.
The PVM220S-H offers versatile connection options with HDMI 2.0 input and Output as well as 3G-SDI input and output. This allows the monitor to be flexibly integrated into professional video workflows. Various video formats and frame rates are supported via HDMI and SDI. A 3.5 mm headphone jack and integrated speakers are available for audio monitoring. The power supply is provided via DC 9 to 24 V with a power consumption of 53 W. Optionally, V-Lock or Anton Bauer battery plates can be used, which makes mobile use even easier.
With its dimensions of 508 x 321 x 47 mm and a weight of 4.7 kg is the LILLIPUT PVM220S-H designed for professional continuous use. On the back there are VESA 75 mm and VESA 100 mm mounting points for brackets, tripods and battery plates available. The scope of delivery includes a 15 V / 4 A DC adapter, a base bracket as well as a electronic operating instructions. Optionally available are a transport bag with sun protection, various battery plates with D-Tap cable and a rack-mount bracket for the bag. The operating temperature range of 0 °C to 50 °C as well as the storage temperature of -20 °C to 60 °C enable reliable use even under demanding conditions.

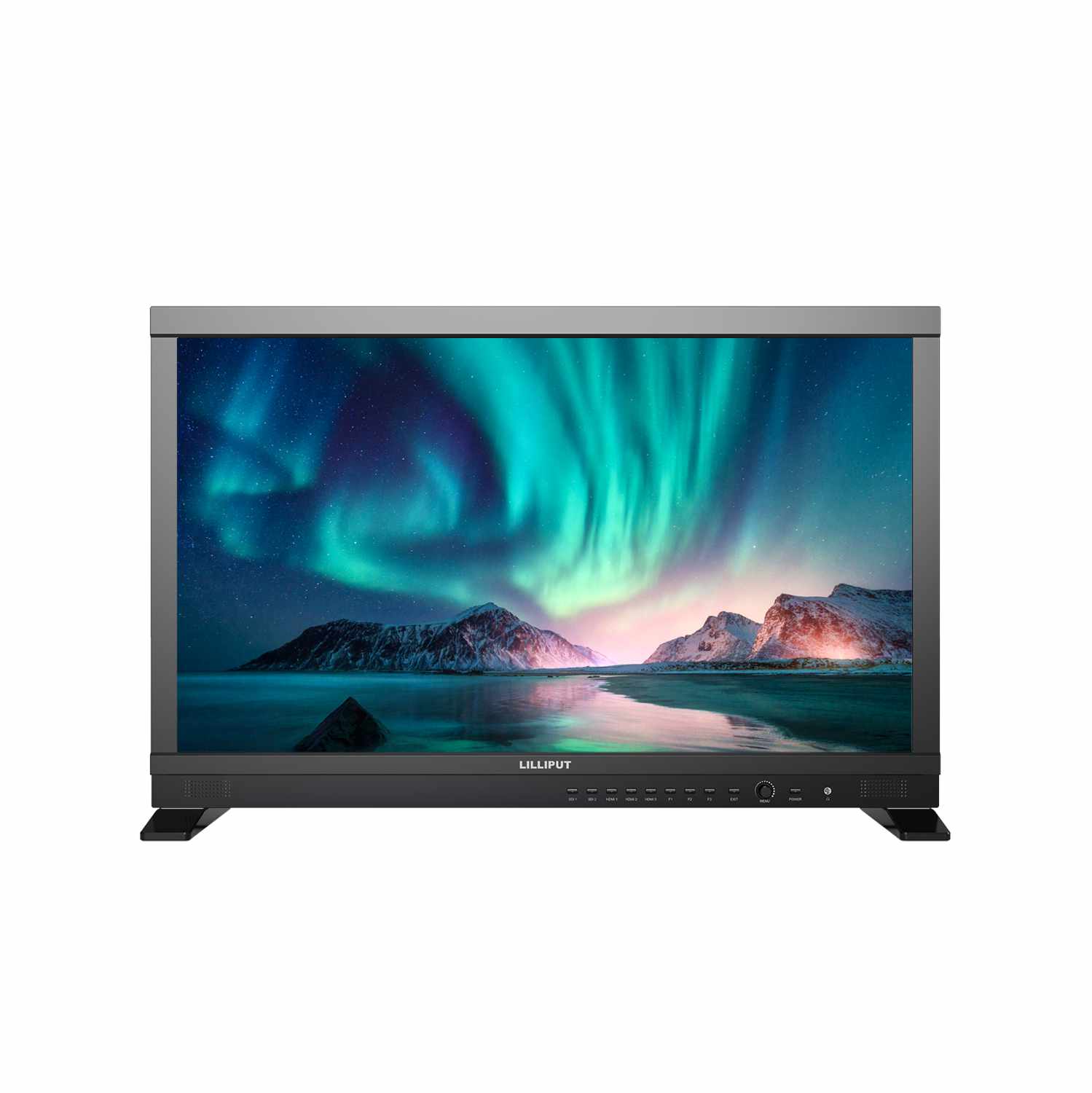

Real product can look different to picture
techn. Specs▲
| Panel | 21.5" |
|---|---|
| Physical Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Brightness | 1000 cd/m² |
| Contrast | 1000: 1 |
| Viewing Angle | 178°/178° (H/V) |
| HDR | ST2084 300/1000/10000 HLG |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLogC / JLog or User... |
| Look up Table(LUT)support | 3D LUT (.cube format) |
| Technology | Calibration to Rec. 709 with optional calibration unit |
| SDI | 1×3G |
| HDMI | 1×HDMI 2.0 |
| SDI | 1×3G |
| HDMI | 1×HDMI 2.0 |
| SDI | 1080p 24/25/30/50/60, 1080PSF 24/25/30, 1080i 50/60, 720p 50/60... |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... |
| SDI | 2ch 48kHz 24-bit |
| HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 1 |
| Input Voltage | DC 9-24V |
| Power Consumption | ≤53W (15V) |
| Compatible Batteries | V-Lock or Anton Bauer Mount |
| Input Voltage(battery) | 14.8V nominal |
| Operating Temperature | 0°C-50°C |
| Storage Temperature | -20°C-60°C |
| Dimension(LWD) | 508mm × 321mm × 47mm |
| Weight | 4.7kg |
Questions & Answers▲
What screen size and resolution does the Lilliput PVM220S-H have?
The monitor has a screen size of 21.5 inches and a Full HD resolution of 1920 x 1080 pixels in 16:9 format. This combination ensures a precise and clear image display that is suitable for professional video productions.
What is the maximum brightness of the monitor?
The maximum brightness is 1000 cd/m². This means that the image remains clearly visible even in strong ambient light and when used outdoors, which makes the monitor particularly suitable for professional productions under changing lighting conditions.
Which HDR standards are supported?
The PVM220S-H supports the HDR standards ST2084 in levels 300, 1000 and 10000 as well as HLG. This means that brightness gradations in light and dark image areas can be displayed much more precisely than on conventional monitors.
What contrast ratio and viewing angle does the monitor offer?
The contrast ratio is 1000:1. The viewing angle is 178° both horizontally and vertically, which enables consistent image and color representation from almost any perspective.
What ports are available?
The monitor has SDI and HDMI ports that provide flexible Enable integration into professional production environments. This makes it suitable for both broadcast setups and for use on film sets.
Does the monitor support 3D LUTs and how do you load your own LUT files?
Yes, the PVM220S-H has an integrated one 3D LUT support with 17 preset LUTs and 6 custom LUT locations. Your own LUT files can be easily imported via USB in order to use different color styles and looks directly on the monitor.
Which log formats are supported for color assessment?
Various log formats are supported, including SLog2, SLog3, CLog, NLog, Arri Log and JLog. This enables precise color assessment and preview directly on the set, regardless of which camera is used.
What areas of application is the Lilliput PVM220S-H intended for?
The monitor was designed for demanding applications in video production and in the broadcast sector and developed on the film set. The high brightness, HDR support and extensive color correction tools make it suitable for professional production environments.
Is the monitor suitable for use outdoors or in bright ambient light?
Yes, thanks to the high brightness of 1000 cd/m², the image remains clearly visible even in strong ambient light. The monitor is therefore suitable for professional productions under changing lighting conditions, including outdoor use.
Can the monitor be used for precise color assessment on set?
Yes, thanks to the 3D LUT function and support for various log formats and the HDR display, the PVM220S-H is suitable for precise color assessment directly on set. Professional users can make informed image composition decisions while shooting.
How many custom LUT slots are available?
There are 6 custom LUT storage slots available. In addition, 17 preset LUTs are stored in the monitor, so that a wide selection of color profiles can be accessed directly.
