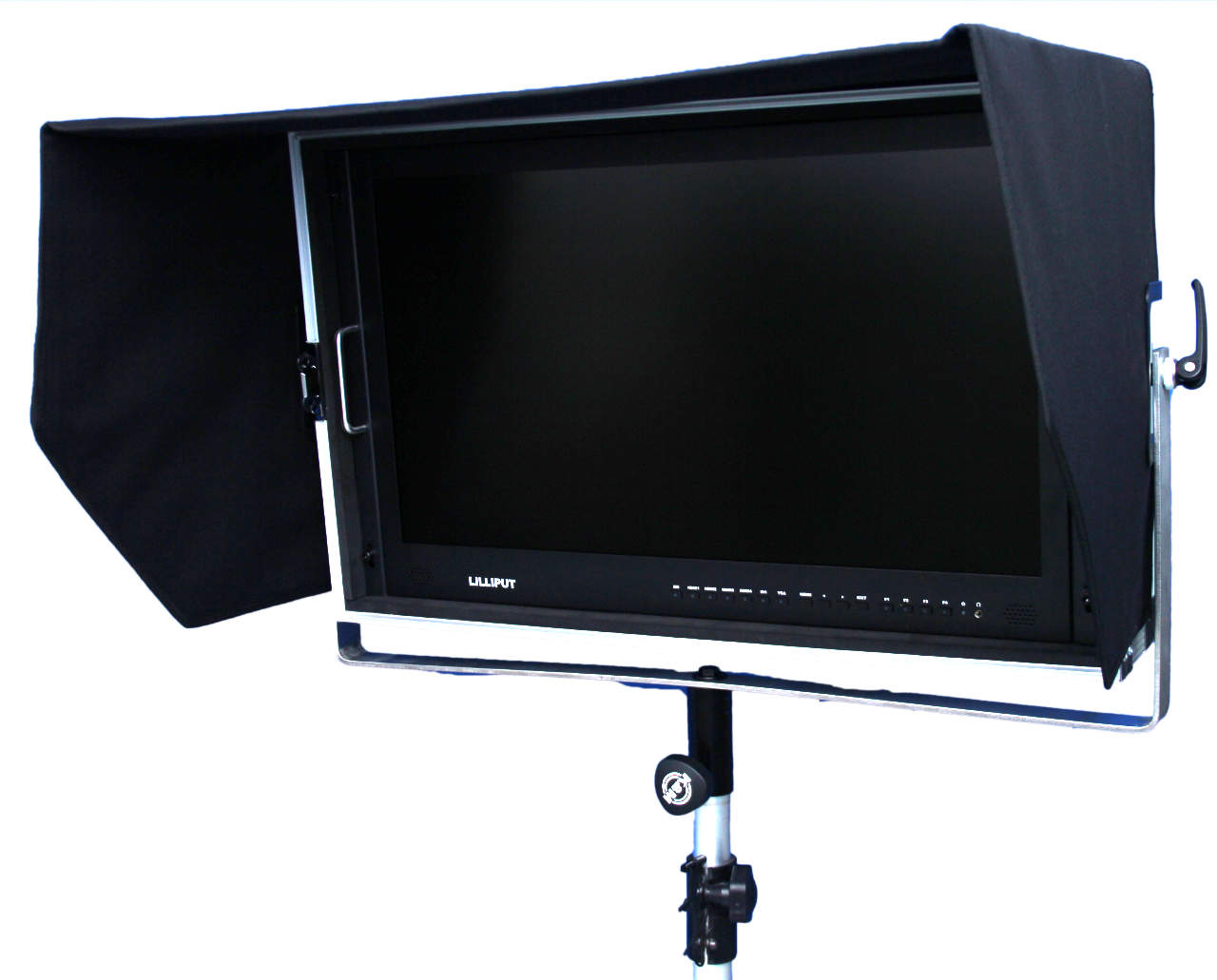

Lilliput tripod frame for PVM220 series
Swivel frame kit for tripod mounting
article number: 12662 | manufacturer number: LPPVM220
- Swivel frame made of stainless steel
- Clamping screw set
- Insert nuts
- Washers
- Spacer sleeves
- Cover frame for the sun shade
- Tripod mount -> optionally for speaker stands or TV spigot
- Conversion instructions ( A hole must be drilled in the flight case )
| A | 30mm fire brigade, THW standard spigot DIN 14640 |
|---|---|
| B | 28mm (1 1/8 inch) TV spigot |
| C | 16mm (5/8 inch) sleeve |
| D | 36mm (1 3/8 inch) speaker stand sleeve |
Real product can look different to picture
techn. Specs▲
| A | 30mm fire brigade, THW standard spigot DIN 14640 |
|---|---|
| B | 28mm (1 1/8 inch) TV spigot |
| C | 16mm (5/8 inch) socket |
| D | 36mm (1 3/8 inch) speaker stand socket |
Questions & Answers▲
For which monitors is this swivel frame suitable?
The swivel frame is designed exclusively for monitors from the Lilliput PVM220 series, for example for the models PVM220S, PVM220S-E and PVM220S-H.
Is the monitor included?
No. You only purchase the swing frame kit. The monitor and a flight case are not included in the scope of delivery.
Which parts are included in the kit?
The kit includes a swivel frame made of stainless steel, a set of clamping screws, drive-in nuts, washers, spacer sleeves, a cover frame for the sun protection visors, a tripod holder and conversion instructions.
What material is the swivel frame made of?
The swivel frame is made of stainless steel and is therefore robust and durable for the professional Use.
Which tripod spigot sizes are available?
There are three versions to choose from: the fire brigade and THW standard spigot with 30 mm according to DIN 14640, the 28 mm TV spigot (1 1/8 inch) as well as the 16 mm spigot mount (5/8 inch), as is common in speaker stand systems.
How do I specify the desired tripod mount?
Please enter the desired tripod mount as a comment in the shopping cart. To do this, use the identifier A for the 30 mm standard spigot, B for the 28 mm TV spigot or C for the 16 mm spigot mount.
Do I need the original flight case of the PVM220 for installation Series?
Yes. The swivel frame can only be used in conjunction with the optional flight case of the PVM220 series. Assembly is not possible without this flight case.
Are conversion instructions included?
Yes, the kit comes with conversion instructions that will guide you through installing the swivel frame on your monitor
Is the swivel frame also suitable for fire brigade or THW operations?
Yes, thanks to the available tripod mount with 30 mm standard pin according to DIN 14640, the frame is suitable for use in fire brigade and THW stands.
Can the frame be mounted on standard speaker stands?
Yes, with variant C a 16 mm spigot mount (5/8 inch) is available that is compatible with standard speaker stands
Are all the required screws and fasteners included in the scope of delivery?
Yes, the kit contains a complete set of tension screws, drive nuts, washers and spacer sleeves, so no additional fasteners are required
What is the cover frame for the sun protection visors?
The cover frame included in the kit is used to cleanly cover the recesses for the sun protection hoods of the monitor when they are not used during tripod mounting
