Lilliput PVM220S – 21.5 Inch Multiview Monitor
Full-HD LCD with SDI, HDMI and PVW/PGM Switching
Special price: € 653.31
incl. VAT
( instead of 736.61 )
549.00 € w/o vat
in stock
Shipping costNo returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12357 | manufacturer number: PVM220S | EAN/UPC: 6950821601952

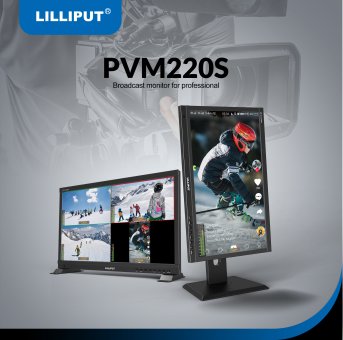

The Lilliput PVM220S is a 21.5 inch Full-HD LCD video monitor with multiview function for live production, streaming, events, theatre, concerts, wedding video, training and further multi-camera applications.

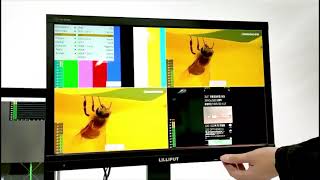

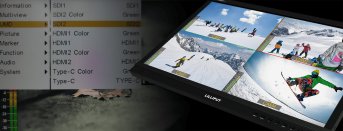

The monitor can display up to four live video signals connected via SDI, HDMI or USB Type-C. The 4-way split-screen display enables clear monitoring of multiple signal sources on a single screen.

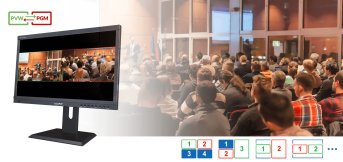

With PVW/PGM switch function, the PVM220S can be used as a preview and programme monitor. This allows multi-camera sources to be conveniently monitored and switched for live streaming, video recording or online productions.

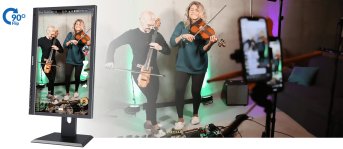

The Lilliput PVM220S supports multiview applications with up to four input signals. In addition, the monitor features a phone mode, which allows vertical video signals to be displayed directly in the multi-camera view.
PGM output is provided via HDMI and 3G-SDI. This allows the programme signal to be passed on to further devices, recorders or streaming setups.

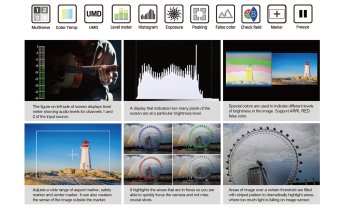

Various assistance functions are available for image monitoring, including audio level meters, histogram, false colour, peaking and further monitoring tools. These functions support the assessment of focus, exposure and signal quality during production.
- 21.5 inch Full-HD LCD video monitor
- 1920 x 1080 pixel resolution
- 4-way split-screen display
- SDI, HDMI and USB Type-C connections
- PVW/PGM switch function
- PGM output via HDMI and 3G-SDI
- Phone mode for vertical video signals
- Brightness 500 nits
- Contrast ratio 1500:1
- Integrated stereo speakers
- VESA mounting option

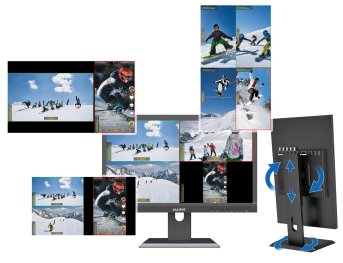

- Rotatable 90° vertically
- 2 function buttons
Real product can look different to picture
techn. Specs▲
500nits brightness
UMD input for mobile devices
Level Meter| Histogram | False color | Exposure | Peaking and more

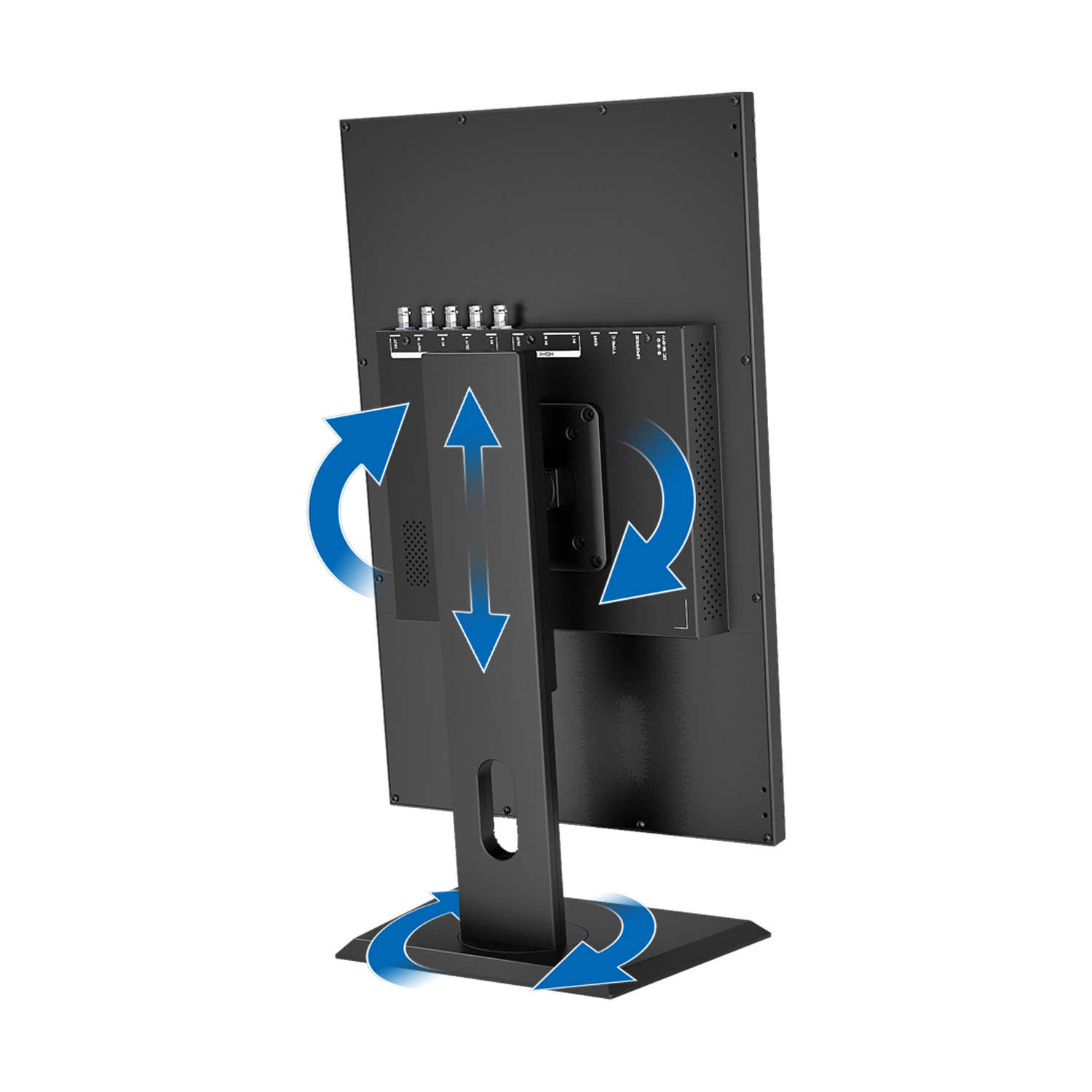

- Swivel mount
- Wall mount

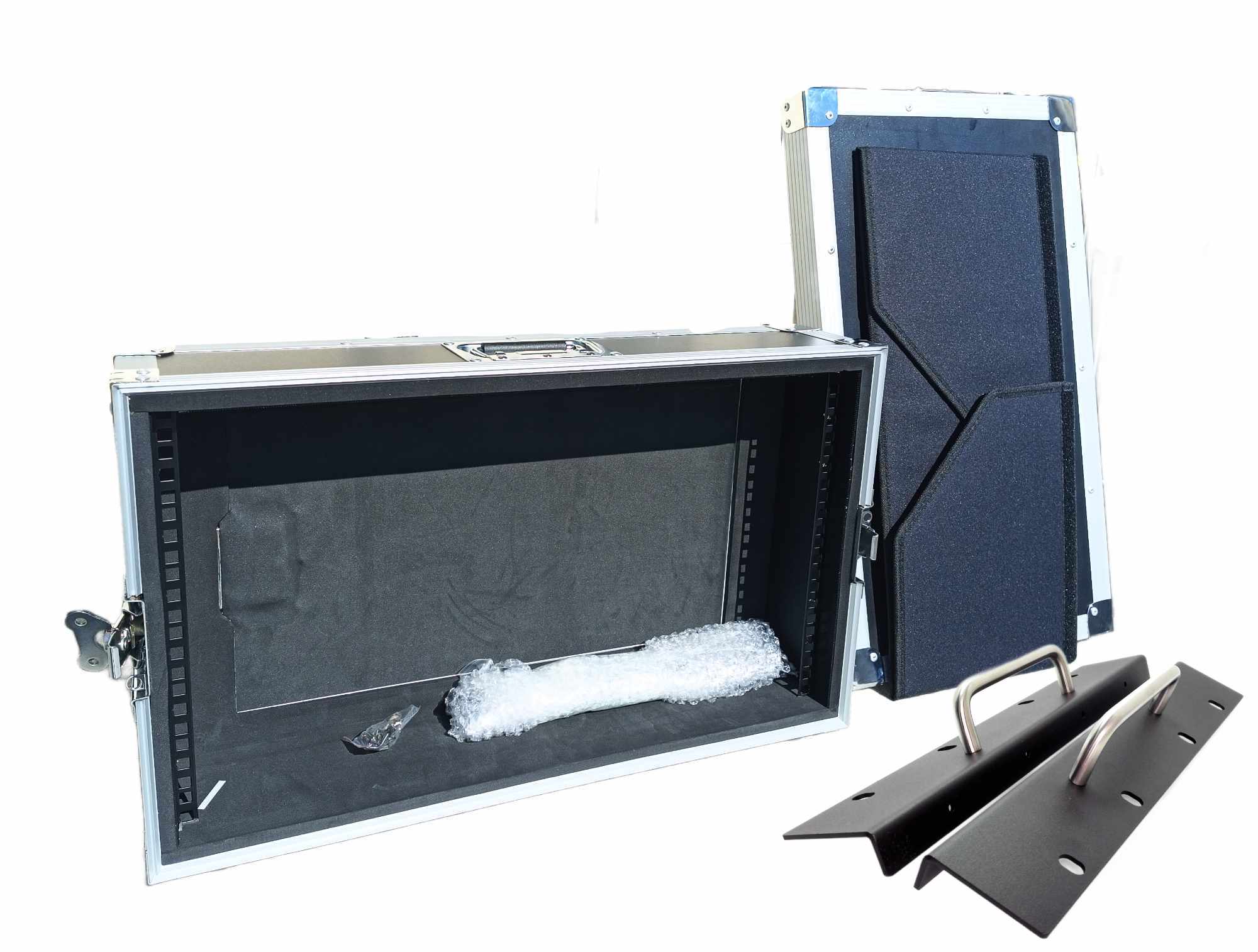

- Suitcase
- V-Mount battery holder
Technical data
| Display | Panel | 21.5" |
|---|---|---|
| Physical Resolution | 1920 × 1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 500 nits | |
| Contrast | 1500:1 | |
| Viewing Angle | 170° / 170° (H/V) | |
| Video Input | SDI ×2 | 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 |
| HDMI ×2 | 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 | |
| USB Type-C ×1 | 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 | |
| Video Output | SDI ×2 | 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 |
| PGM HDMI/SDI ×1 | 1080p 60/50/30/25/24 | |
| Audio In/Out | SDI | 2ch 48kHz 24-bit |
| HDMI | 2ch 24-bit | |
| Ear Jack | 3.5mm | |
| Built-in Speakers | 1 | |
| Power | Input Voltage | DC 12–24V |
| Power Consumption | ≤33W (15V) | |
| Environment | Operating Temperature | -20°C – 60°C |
| Storage Temperature | -30°C – 70°C | |
| Others | Dimension (LWD) | 508 × 321 × 47mm |
| Weight | 5.39 kg |
Questions & Answers▲
How many video signals can the Lilliput PVM220S display simultaneously?
The PVM220S supports up to four input signals displayed simultaneously using its 4-way split-screen function, allowing multiple camera sources to be monitored on a single 21.5-inch screen.
Which video inputs does this monitor support?
The monitor is equipped with SDI, HDMI and USB Type-C inputs, enabling connection to a wide range of cameras, switchers and production devices.
Can the monitor be used as both a preview and a programme monitor?
Yes, the built-in PVW/PGM switch function allows it to serve as a preview and programme monitor, making it suitable for live streaming, video recording and multi-camera productions.
What outputs are available for passing the programme signal to other devices?
The PGM output is provided via both HDMI and 3G-SDI, allowing the programme signal to be forwarded to recorders, streaming encoders or additional monitors.
What is the screen resolution of the PVM220S?
The monitor features a Full-HD LCD panel with a native resolution of 1920 x 1080 pixels.
What is the brightness and contrast ratio of the display?
The panel delivers a brightness of 500 nits and a contrast ratio of 1500:1, providing clear image reproduction in a variety of production environments.
Does the monitor support vertical video signals?
Yes, a dedicated phone mode allows vertical video signals to be displayed directly within the multi-camera view, which is useful for productions involving smartphone or portrait-format sources.
Which monitoring assistance functions are available for image assessment?
The monitor offers audio level meters, histogram, false colour and peaking, supporting the evaluation of focus, exposure and overall signal quality during live production.
Can the monitor be rotated for vertical use?
Yes, the PVM220S can be rotated 90 degrees to a vertical orientation, expanding its flexibility for different installation and production scenarios.
Does the monitor have integrated audio output?
The monitor includes integrated stereo speakers, allowing audio monitoring without the need for external speakers in standard production setups.
Is VESA mounting supported?
Yes, the monitor features a VESA mounting option, making it compatible with standard monitor arms, rack mounts and other VESA-compatible mounting solutions.
For which production environments is this monitor suitable?
The PVM220S is designed for live production, live streaming, events, theatre, concerts, wedding video, training and other multi-camera applications where simultaneous monitoring of several video sources is required.
