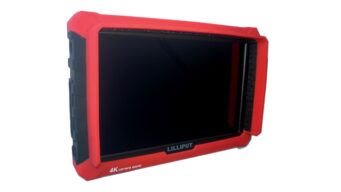

Lilliput A7S 4K HDMI Monitor – 7" camera top
Full HD monitoring with HDMI loop for camera setups
article number: 11826 | manufacturer number: A7S | EAN/UPC: 6950821601396

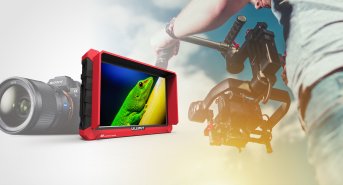

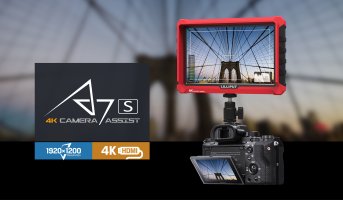

The A7s 4K camera-top monitor with 1920x1200 native resolution offers filmmakers and content creators a high-quality monitoring solution for professional camera work. The 7-inch display with 4K HDMI support enables precise image control directly on the camera and is a reliable partner for demanding productions. The compact design makes it the ideal companion for mobile shoots and gimbal setups.
With its native Full HD resolution of 1920x1200 pixels, the monitor offers a detailed display that enables critical focusing and image composition. The 4K HDMI input & loop output ensures seamless integration into existing workflows and enables simultaneous monitoring and forwarding of the signal to other devices.

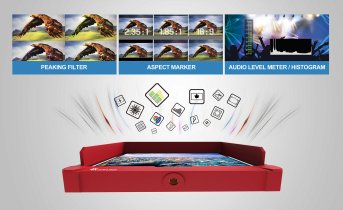

The monitor has professional camera auxiliary functions that are indispensable in critical recording situations. Peaking filters support precise Focusing, while aspect markers make it easier to compose images for various output formats. Audio level meters and histogram displays provide additional control over technical parameters during recording.
These auxiliary functions enable camera operators and directors to monitor important quality parameters during recording and react accordingly. The combination of visual aids makes the workflow more efficient and reduces the need for effort Post-processing.

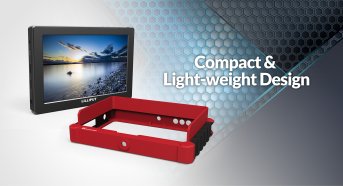

The compact and lightweight design of the A7s was specially developed for mobile use. The robust construction with durable protection ensures reliable operation even under demanding production conditions enables secure mounting on various camera setups without adding additional weight.
The easy-to-use operating philosophy makes the monitor accessible to less experienced users, while the professional features support experienced users in their work.

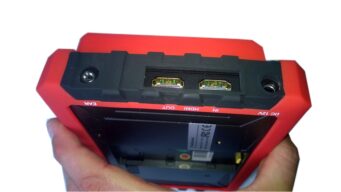

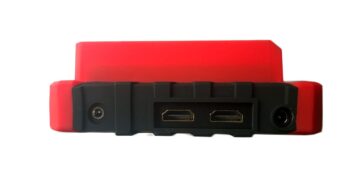

The monitor offers extensive connectivity options for various camera setups and production environments. The 4K HDMI input enables the display of high-resolution signals, while the loop output enables integration into more complex monitoring setups. This flexibility makes the A7s a valuable addition for both solo productions and for larger camera teams.

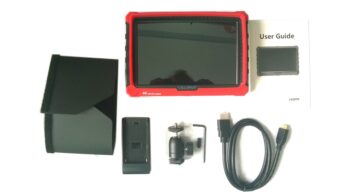

The well thought-out connection design ensures secure connections even during intensive use. Various accessory options expand the possible uses and enable adaptation to specific production requirements.
Real product can look different to picture
techn. Specs▲
| Size | 7" |
|---|---|
| Resolution | 1920 x 1200 |
| Brightness | 500cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/170°(H/V) |
| HDMI INPUT | 1×HDMI 1.4 |
| HDMI OUTPUT | 1×HDMI 1.4 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Operating power | ≤12W |
| DC In | DC 7-24V |

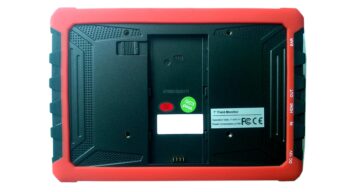

| Compatible batteries | NP-F Series |
| Input voltage (battery) | 7.2V nominal |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Dimension(LWD) | 182.1×124×20.5mm |
| Weight | 320g |
Questions & Answers▲
What native resolution does the Lilliput A7S have?
The monitor offers a native resolution of 1920x1200 pixels. This Full HD resolution enables a detailed display and supports precise focusing and precise image composition directly during shooting.
Does the monitor support 4K signals?
Yes, the A7S has a 4K HDMI input. The signal is displayed on the 7-inch display, with the panel's native resolution being 1920x1200 pixels. An incoming 4K signal is displayed scaled accordingly.
What is the HDMI loop output and what is it used for?
The HDMI loop output passes the incoming signal unchanged to another device, for example to a recorder or a second monitor. In this way, the signal can be monitored at the same time and forwarded to other devices in the setup without interrupting the connection chain.
What auxiliary functions for focusing does the monitor offer?
The A7S has a peaking filter that colors the edges of the image highlights and thus facilitates precise manual focusing. This function is particularly helpful for critical shots with a shallow depth of field.
What are aspect markers and how do they help with image composition?
Aspect markers show frame lines on the display that visualize different aspect ratios and output formats. Camera operators and directors can use this to ensure that the subject is correctly composed for the planned output format during the recording.
Does the monitor have a histogram display?
Yes, the A7S displays a histogram that shows the Displays the brightness distribution of the image in real time. This allows you to precisely control the exposure during recording and specifically avoid over- or under-exposure.
Is there an audio display on the monitor?
The monitor has an audio level meter that visually displays the audio level of the incoming signal. This means that the sound level can be monitored during filming without having to rely on a separate audio device.
Is the monitor suitable for use on a gimbal?
Yes, the compact and lightweight housing of the A7S was specially developed for mobile use. The low weight makes it a suitable monitor for gimbal setups where balanced weight distribution is important.
How is the monitor attached to the camera?
The A7S is designed as a camera-top monitor and can be attached to the camera via a mount mount. The housing design allows it to be securely attached to various camera setups without adding unnecessary weight.
For which areas of application is the monitor particularly suitable?
The A7S is aimed at filmmakers, content creators and cameramen who need a reliable monitoring solution for professional productions need. It is suitable for setups in the studio as well as for mobile shoots under demanding conditions.
Can the monitor be integrated into existing production workflows?
Yes, thanks to the 4K HDMI input and the loop output, the monitor can be seamlessly integrated into existing setups incorporate. The signal can be received, shown on the display and at the same time forwarded to other devices such as recorders or switchers.
Can the monitor be used reliably even under difficult production conditions?
The housing of the A7S was robustly constructed and offers lasting protection for operation even under demanding conditions Conditions. The solid workmanship ensures reliable function in mobile and intensive production operations.
