Lilliput Q5 – 5.5 inch FHD camera top monitor
IPS panel, SDI & HDMI for professional camera work
Special price: € 391.51
incl. VAT
( instead of 415.31 )
329.00 € w/o vat
in stock
Shipping costarticle number: 11723 | manufacturer number: Q5 | EAN/UPC: 6950821601204

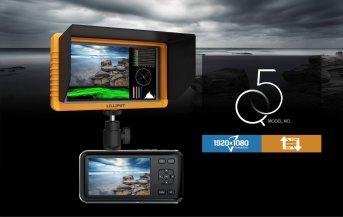

The LILLIPUT 5.5"FHD CAMERA-TOP MONITOR is a compact field monitor that was specially developed for professional camera work. With its 5.5 inch Full HD display, it offers a precise image reproduction for filmmakers, content creators and broadcast professionals. The high-resolution IPS panel with 1920x1080 pixels enables detailed control of the recordings directly on the set and supports various video formats for a wide range of applications.

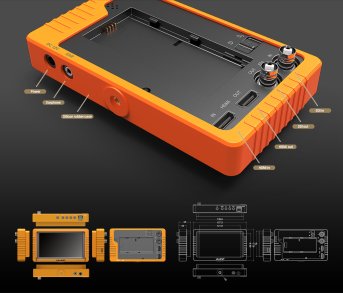

The monitor design is characterized by its striking orange-black color and robust construction. The monitor has a slim and portable design that is ideal for mobile use. The compact dimensions and low weight make it the ideal companion for gimbal setups and handheld recordings. Various connection options such as HDMI and other video inputs ensure flexible integration into existing camera workflows.

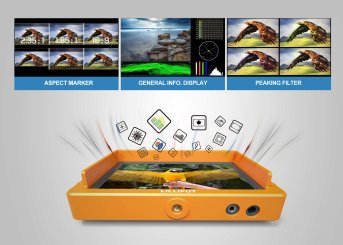

The monitor offers extensive professional monitoring tools that support image control. The advanced functions include various analysis tools that enable precise assessment of exposure, sharpness and color reproduction. The cross conversion function expands compatibility with various video signals, while the robust protective functions protect the monitor from external influences. These features make the monitor a valuable tool for demanding productions.
The LILLIPUT Camera-Top Monitor is suitable for various professional applications, from film production to live streaming setups. Its properties as an on-camera monitor make it particularly valuable for DSLR and mirrorless cameras that have limited internal monitoring options. The precise color reproduction and professional monitoring tools help camera operators achieve the desired image quality during recording and avoid expensive post-corrections.
Real product can look different to picture
techn. Specs▲
| Size | 5.5" |
|---|---|
| Resolution | 1920 x 1080 |
| Brightness | 500cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 160°/160°(H/V) |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| SDI | 720p 50/60, 1080i 50/60, 1080p5F 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Operating power | ≤12W |
| DC In | DC 7-24V |
| Compatible batteries | NP-F Series and LP-E6 |
| Input voltage (battery) | 7.2V nominal |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Dimension(LWD) | 154.5×90×20mm / 157.5×93×23mm (with case) |
| Weight | 320g / 340g (with case) |
Questions & Answers▲
What screen size and resolution does the Lilliput Q5 offer?
The Lilliput Q5 has a 5.5-inch IPS display with a Full HD resolution of 1920x1080 pixels. The panel enables detailed and color-accurate image control directly on the set.
Which video inputs are available?
The monitor offers both an SDI and an HDMI input. This allows it to be flexibly integrated into various camera workflows and production environments.
How bright is the display of the Lilliput Q5?
The IPS panel achieves a brightness of 500 cd/m², which also ensures an easy-to-read image display under more difficult lighting conditions on set.
Is the monitor suitable for use on a gimbal?
Yes, thanks to its compact format and low weight, the Lilliput Q5 is well suited for gimbal setups. The slim design puts minimal strain on the gimbal and does not restrict freedom of movement.
Is the monitor compatible with DSLR and mirrorless cameras?
The Lilliput Q5 is designed as an on-camera monitor and is particularly suitable for DSLR cameras. as well as mirrorless cameras that have a limited integrated display or none at all.
What professional monitoring functions does the monitor offer?
The Lilliput Q5 provides various analysis tools that enable a precise assessment of exposure, sharpness and Enable color reproduction. These tools support filmmakers and broadcast professionals in reliable image control directly on the camera set.
What is the cross conversion function?
The cross conversion function expands the monitor's compatibility with various video signals. It allows conversion between different signal formats and thus increases flexibility in professional production use.
For which production environments is the Lilliput Q5 suitable?
The monitor is suitable for a wide range of professional applications, including film productions, broadcast setups, Content creation and live streaming. It can be used as a reliable monitoring tool both in the studio and during mobile filming.
How is the monitor's housing designed?
The housing is characterized by a striking orange-black color scheme and a robust construction. The compact and slim design is aimed at mobile use and at the same time protects the monitor from external influences.
Can the monitor be used for handheld recordings?
Yes, the low weight and compact dimensions make the Lilliput Q5 a suitable companion for Handheld recordings. It can be easily mounted on the camera without significantly affecting handling.
What type of panel is installed and what advantages does it offer?
The Lilliput Q5 uses an IPS panel. This type of panel offers better color accuracy and wider viewing angles compared to TN panels, making it easier to check the image from different positions on set.
Is the monitor suitable for live streaming setups?
The Lilliput Q5 can be installed in Integrate live streaming setups. Thanks to the existing video inputs and the compact design, it can be used as a monitoring solution for live productions.
