Finevideo Hydro2 Big Swivel Arm 297Mm With Shoe Mount
Articulated Arm For Mounting Headlights And Monitors Hydro2. Load Capacity Up To 3 Kg
Artikelnummer: 9198 | Hersteller-Nummer: hydro2 | EAN:
Product Description

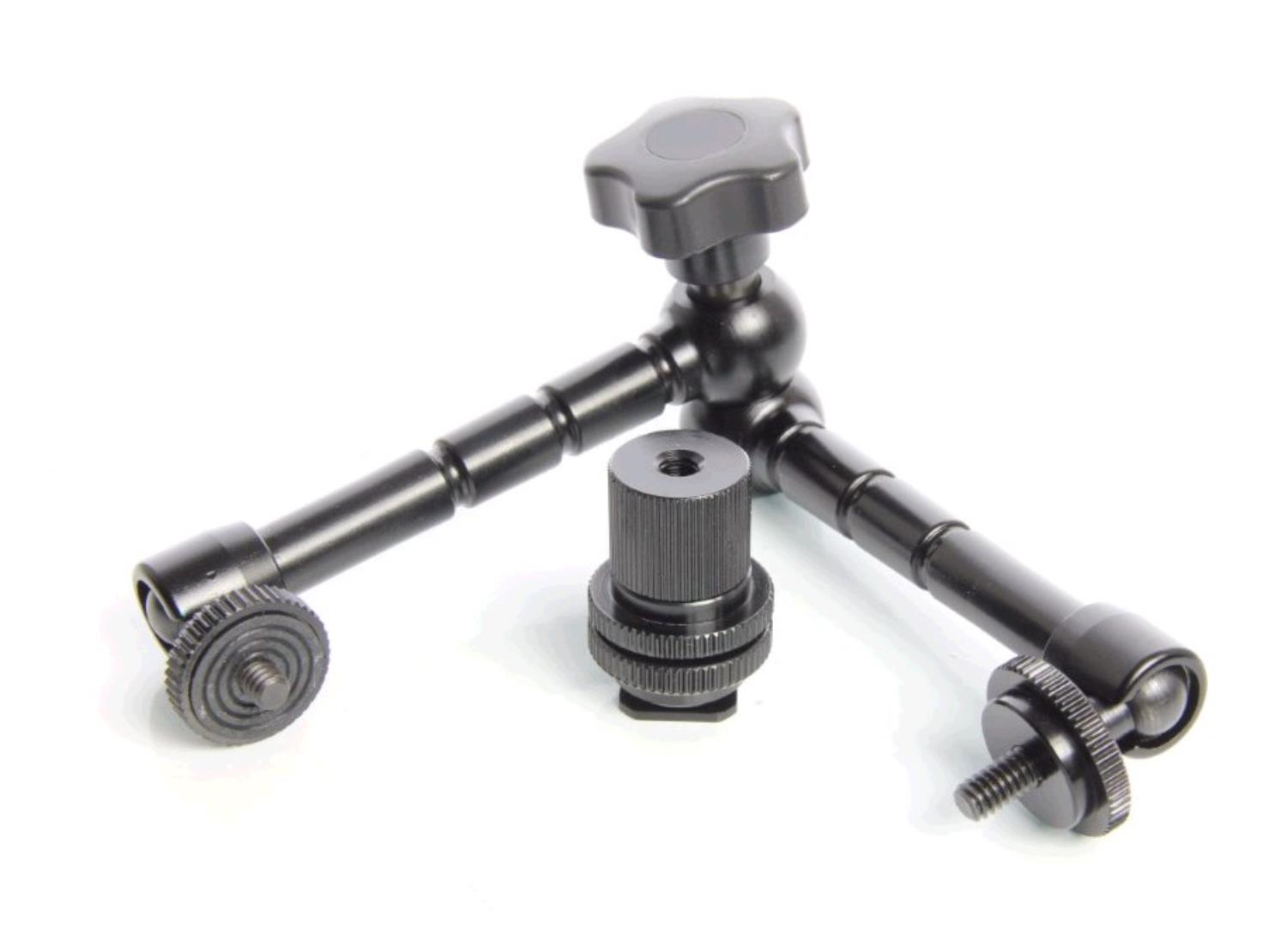

The highly stable aluminum articulated arm FineVideo Hyro2 is equipped with 3 joints, which can be locked simultaneously with a central screw. The included flash shoe adapter is very flexible for attaching the arm to various mounting points. The adapter is removable to attach the swivel arm directly to 1/4 inch mounting threads. The central locking capability with a screw allows the light or monitor to be precisely positioned with one hand and fixed with the other hand. It doesn't get any better or more stable.
The lock nut on the device side is rubberized to prevent the mounted devices from loosening.
| All threads | 1/4 inch (at the flash shoe in 3/8 inch) |
|---|
Scope of Delivery
- Articulated arm with 2 ball joints at the top and bottom and a 360-degree joint in the middle.
- Flash shoe adapter, 3 lock nuts 1/4 inch (one rubberized) and connecting piece in 1/4 inch.
Real product can look different to picture
techn. Specs▲
Technical Data
- Material: Aluminum
- Locking: internal steel push rods
| Total length | approx. 297 mm (arm + shoe) |
|---|---|
| Total weight | approx. 240 g (arm 200g, shoe 40g) |
| Load capacity | up to approx. 3 kg |
| Tubing diameter | approx. 12 mm |
| All threads | 1/4 inch photo thread |
