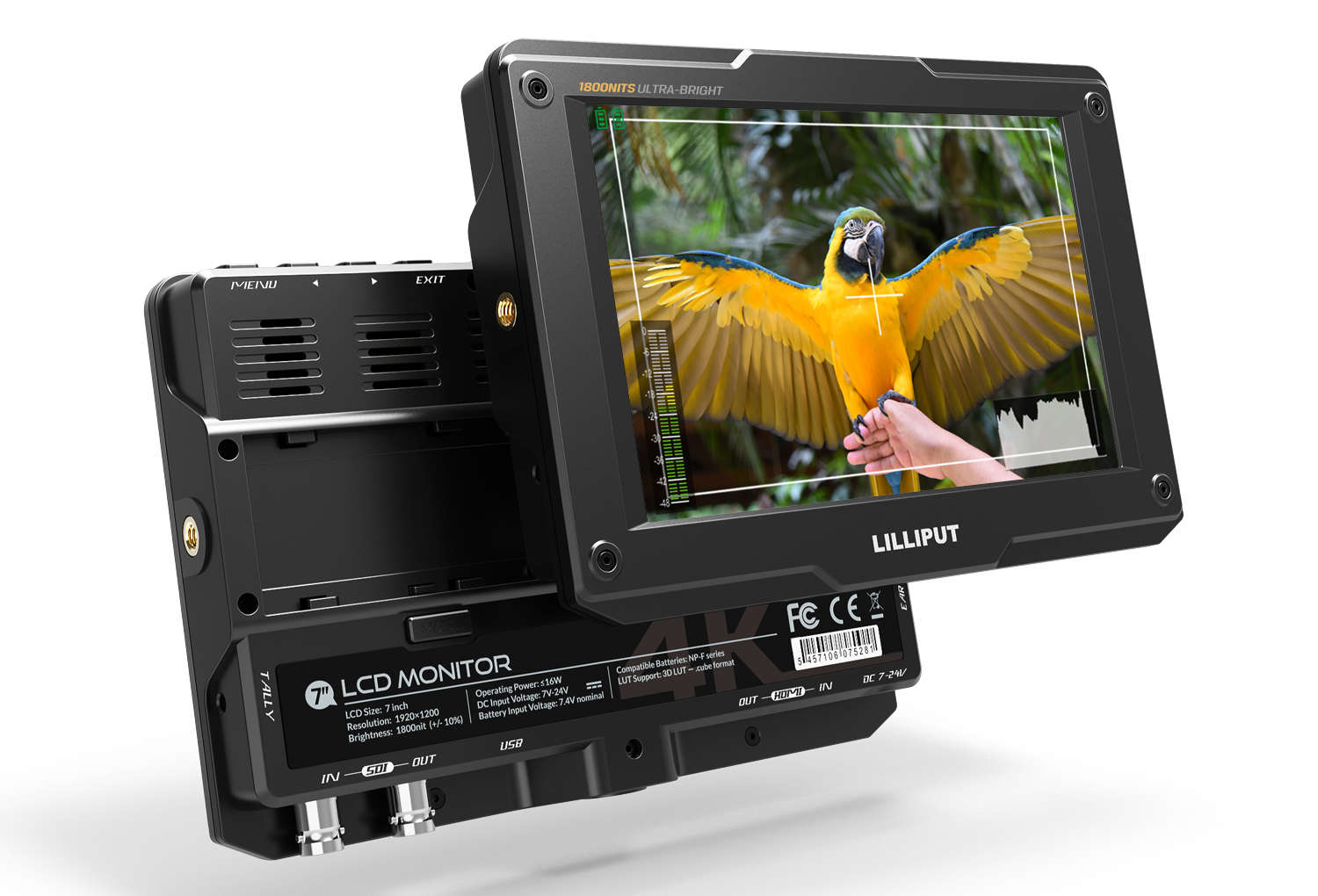

Lilliput H7 – 7 inch HDR monitor with 1800 nits
WUXGA display with 4K HDMI for video production
article number: 12292 | manufacturer number: H7 | EAN/UPC: 6950821601785
The Lilliput H7 is a professional HDR LCD video monitor with high-resolution WUXGA resolution (1920 x 1200 pixels). Equipped with HDMI inputs and outputs as well as professional monitoring functions such as peaking, histogram, false color and zebra, the monitor is ideal for camera monitoring, video production and mobile use.
The HDMI interface according to HDMI 1.4b standard supports 4K signals up to 3840 x 2160 pixels at 25/30 Hz. Thanks to the high brightness of 1800 nits, the display is very easy to read even outdoors.
- 1800 nits brightness – can also be used outdoors without anti-glare protection
- 3D LUT.cube support with uploading your own LUT files
- 4K signals are displayed in high quality the WUXGA display scales
- Pixel zoom function for pixel-precise display and precise focusing [
- Light and stable housing for camera, rig or hot shoe mounting
- Optional power supply separately available
- Official Lilliput service partner with many spare parts from stock
- Resolution: 1920 x 1200 pixels (WUXGA)
- Image format: 16:10, video display also in 16:9
- Color system: PAL / NTSC
- Brightness: 1800 cd/m²
- Contrast ratio: 1000:1
- Viewing angle: 170° / 170° (H/V)
- IPS Panel with LED backlight
- Built-in speaker
- Histogram display
- Audio level display
- Peaking function
- False color display
- Exposure / Zebra function
- Pixel-to-pixel display
- Mirror image
- 2 x 1/4 inch thread for horizontal or vertical mounting
- 1 x HDMI input/output (HDMI 1.4b to 4K 25/30 Hz)
- 1 x headphone jack 3.5 mm stereo jack
- 1 x DC input 7–24 V (2.1 mm Hollow socket)
- Built-in speaker
- Operation via 12 V power supply or battery possible
- 2 x battery holder for Sony NP-F batteries
- Maximum power consumption: 16 watts
- New swivel head
- Mini HDMI (Type C) to HDMI (Type A) cable
- Tally cable
- Transport bag
- User manual in English
- No batteries included
Real product can look different to picture
techn. Specs▲
| Size | 7" |
|---|---|
| Resolution | 1920 x 1200 |
| Brightness | 1800 cd/m² (+/- 10% in the Center) |
| Aspect Ratio | 16:10 |
| Contrast | 1200:1 |
| Viewing angle | 160°/160°(H/V) |
| HDMI | 1×HDMI 1.4 |
| HDMI | 1×HDMI 1.4 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
| HDMI | 2ch 24-bit |
| ear socket | 3.5 mm – 2 channels 48 kHz 24 bit |
| Built-in Speakers | 1 |
| Operating power | ≤15W |
| DC In | DC 7-24V |
| Compatible Batteries | NP-F Series |
| Input Voltage (Battery) | 7.2V nominal |
| Operating temperature | 0°C~50°C |
| Storage temperature | -10°C~60°C |
| Dimension(LWD) | 225×155×23mm |
| Weight{ {125}} | 535g |
Questions & Answers▲
What resolution does the monitor have and does it support 4K signals?
The monitor has a native resolution of 1920 x 1200 pixels (WUXGA). It can receive 4K signals up to 3840x2160 at 25/30 Hz via HDMI 1.4b and scales them to the Full HD panel. With the pixel zoom function, individual pixels of the 4K signal can be viewed.
How bright is the monitor and is it suitable for outdoor use?
The monitor achieves an exceptional brightness of 1800 cd/m² (1800 nits) and can therefore easily be used outdoors without additional glare protection.
Which connections are available?
The monitor has an HDMI input/output (HDMI 1.4b), a 3.5 mm stereo headphone jack, a built-in speaker and a DC input jack (2.1 mm) for power supply of 7-24 V.
Which professional monitor functions are integrated?
The monitor offers peaking display, false color, histogram display, audio level display, exposure/zebra function, pixel-to-pixel display, image mirroring and 3D LUT .cube functions with upload option.
How is the monitor powered?
The power supply is provided via DC 7-24 V through a 12V power supply or battery. The monitor has 2 slots for Sony NP-F batteries and has a maximum power consumption of 16 watts.
How can the monitor be attached to the camera?
Thanks to the high-quality housing and low weight, the monitor can be easily mounted on the camera's hot shoe. It features 2 x 1/4 inch threads for vertical or horizontal mounting options.
What is included?
The scope of delivery includes a new joint head, a mini-HDMI (C) to HDMI (A) cable, a tally cable, a transport bag and an English user manual.
Which image format and color systems are supported?
The monitor has a 16:10 image format and can display videos in 16:9 format. It supports the PAL and NTSC color systems.
What is the viewing angle?
The monitor offers a viewing angle of 170° horizontally and 170° vertically thanks to the IPS LED backlight panel.
What is the contrast ratio?
The contrast ratio is 1000:1, which ensures clear image representation even in different lighting conditions.
