Lilliput H7S – 7 inch HDR monitor with 1800 nits
HDMI & 3G-SDI video monitor for camera monitoring
article number: 12291 | manufacturer number: H7S | EAN/UPC: 6950821601792
The Lilliput H7S is a professional HDR LCD video monitor with high-resolution WUXGA resolution (1920 x 1200 pixels). Equipped with HDMI and 3G-SDI inputs and outputs, the monitor offers versatile connection options for camera monitoring, video production and mobile use.
The HDMI interface according to HDMI 1.4b standard supports 4K signals up to 3840 x 2160 pixels at 25/30 Hz. Thanks to its compact design and robust construction, the H7S is ideal for DSLR, system, cinema and broadcast cameras.
- 1800 nits brightness – very good readability even outdoors without additional glare protection
- HDR support for improved image display
- 3D LUT.cube Support with uploading your own LUT files
- Peaking function for precise focus control
- Histogram for exposure analysis
- False color function for quick exposure control
- Pixel zoom for pixel-precise display of 4K signals
- Light and stable housing for camera, rig or hot shoe mounting
4K signals are scaled to the integrated Full HD panel in high quality. Using the pixel zoom function, every single pixel of the input signal can be displayed, which makes precise focusing much easier.
- 1 x HDMI input/output (HDMI 1.4b to 4K 25/30 Hz)
- 1 x SDI input/output (3G-SDI to Full HD 50/60 Hz)
- 1 x headphone jack 3.5 mm stereo jack
- New swivel head
- Mini HDMI (Type C) to HDMI (Type A) cable

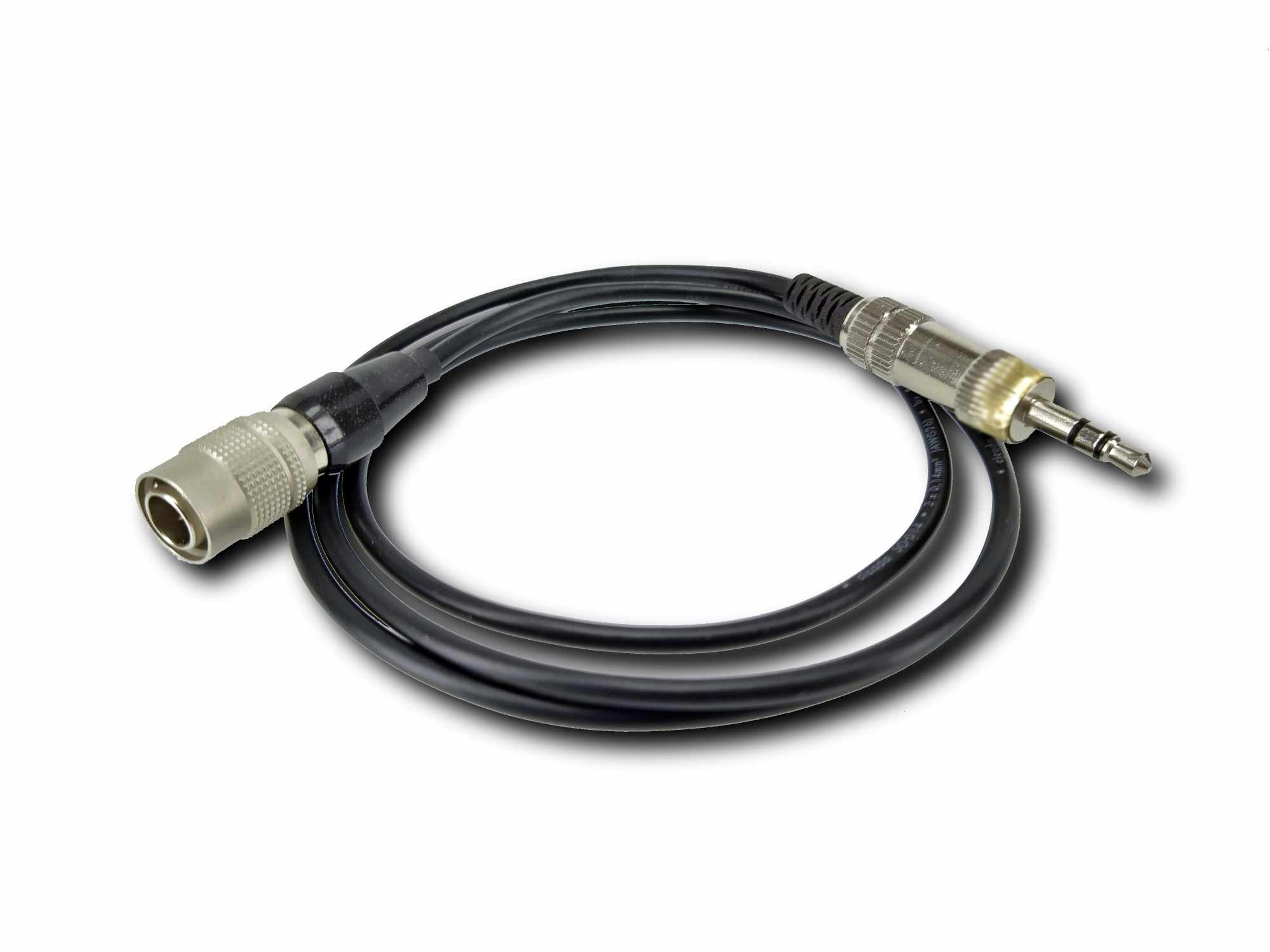

- Tally cable
- Carry bag
- User manual in English
- No batteries included
- No power supply included
- Suitable power supply optionally available
Real product can look different to picture
techn. Specs▲
Technical Data
| Display | Size | 7" |
|---|---|---|
| Resolution | 1920 × 1200 | |
| Brightness | 1800 cd/m² (±10% in the center) | |
| Aspect ratio | 16:10 | |
| Contrast | 1200:1 | |
| Viewing angle | 160° / 160° (H/V) | |
| Video input | SDI | 1 × 3G-SDI |
| HDMI | 1 × HDMI 1.4 | |
| Video Loop Output | SDI | 1 × 3G-SDI |
| HDMI | 1 × HDMI 1.4 | |
| Supported Input/output formats | SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 | |
| Audio In/Out | SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit | |
| Headphone jack | 3.5 mm - 2 channels 48 kHz 24-bit | |
| Built-in Speakers | 1 | |
| Power | Operating power | ≤ 15 W |
| DC Input | DC 7-24 V | |
| Compatible Batteries | NP-F series | |
| Input voltage (battery) | 7.2 V nominal | |
| Environment | Temperature | Operation: 0 °C - 50 °C Storage: -10 °C - 60 °C |
| Other | Dimensions (L × W × D) | 225 × 155 × 23 mm |
| Weight | 535 g |
Questions & Answers▲
What is the maximum resolution supported by the monitor?
The monitor supports 4K signals up to 3840x2160 at 25/30 Hz via HDMI 1.4b. The native panel has a WUXGA resolution of 1920x1200 pixels, to which 4K images are scaled.
Is the monitor suitable for outdoor use?
Yes, with an exceptionally high brightness of 1800 nits, the monitor can be viewed outdoors in daylight without anti-glare protection.
What connections are available?
The monitor has an HDMI input/output (HDMI 1.4b), a 3G-SDI input/output for Full HD up to 50/60 Hz, a 3.5 mm headphone jack and a DC socket for power supply.
How can the monitor be attached to the camera?
Thanks to its low weight and high-quality housing, the monitor can easily be mounted on the camera's hot shoe. There are also two 1/4 inch threads for vertical or horizontal mounting.
What professional functions does the monitor offer?
The monitor offers peaking, histogram, false color, exposure/zebra function, pixel-to-pixel display and image mirroring. In addition, it supports 3D LUT .cube functions with upload option.
How does the pixel zoom function work?
With the pixel zoom function, every single pixel of the 4K signal can be displayed on the panel. This enables precise focusing of the 4K image.
What power supply does the monitor need?
The monitor requires a DC voltage of 7-24V via a 5.5/2.1 mm DC hollow socket. It can be powered by a 12V power supply or a compatible battery.
Which panel technology is used?
The monitor uses an IPS panel with LED backlight, which offers a viewing angle of 170° horizontally and vertically and a contrast ratio of 1000:1.
Is audio monitoring possible?
Yes, the monitor has a built-in speaker, an audio level meter and a 3.5mm headphone jack for professional audio monitoring.
Which video formats are supported?
The monitor supports both PAL and NTSC color systems. The 16:10 panel can optimally display video in 16:9 format.
