AVMATRIX HVS0401E 4-Channel Full-HD Video Mixer
RTMP Streaming, Recording and Multiview in One Unit
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12523 | manufacturer number: HVS0401E | EAN/UPC: 6971118001941

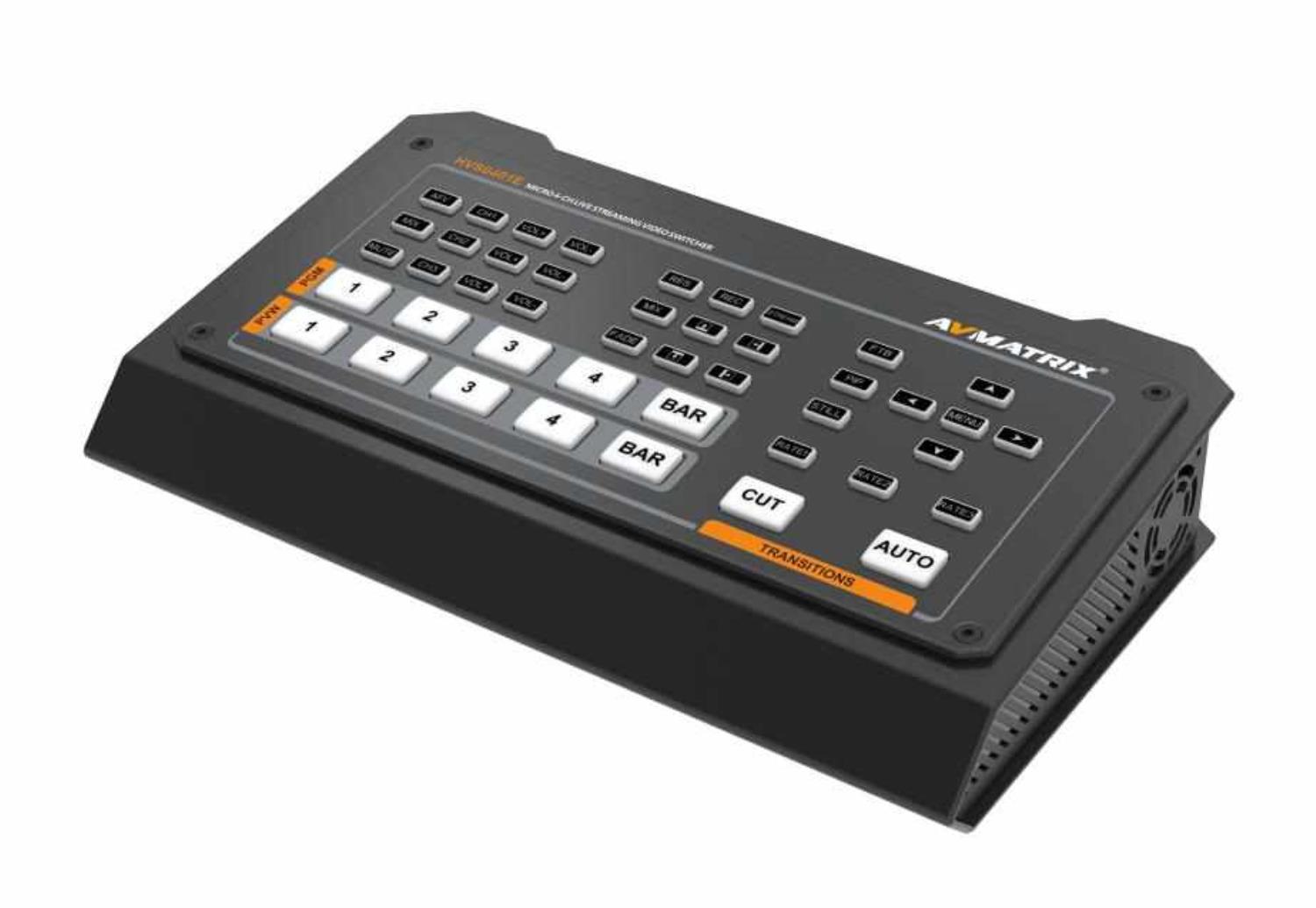

The AVMatrix HVS0401E is a compact 4-channel Full-HD video mixer for live production, streaming and recording. It combines HDMI and DisplayPort inputs, program output, multiview, USB video output, RTMP streaming and recording to USB storage or SD card in a single device.
The video mixer processes HDMI signals up to 1920x1080/60p. An additional DisplayPort input is available as an alternative to one of the HDMI inputs. The program output supports Full HD up to 1080/60p.
Via USB Type-C, the AVMatrix HVS0401E is recognised by the computer as a UVC/UAC source and can therefore be used directly with software such as OBS, vMix or XSplit. In addition, the integrated RTMP encoder enables direct streaming to supported platforms.
The AVMatrix HVS0401E supports streaming via RTMP and enables direct recording to USB storage or SD card. Recording is done in H.264 or H.265 at up to 32 Mbit/s.
This makes the mixer suitable for productions where live output, streaming and simultaneous recording are required in a compact setup.
For live production, smooth dissolves, wipe transitions and fade-to-black are available. The HVS0401E also supports picture-in-picture with freely selectable position and size.
Operation can be performed on the device itself or via a web browser. The tally output can signal the active camera in suitable multi-camera setups.
The metal housing protects the AVMatrix HVS0401E during daily use. Thanks to its compact form factor, the video mixer is suitable for mobile productions, small control rooms, conferences, worship services, training sessions and online productions.
- 1 x AVMatrix HVS0401E 4-CH Video Mixer
- 1 x Power Supply
- 1 x USB-A to USB-C Adapter Cable
- 1 x Tally Adapter
Real product can look different to picture
techn. Specs▲
| General | |
| Product Type | 4-channel Full HD video switcher with streaming and recording function |
|---|---|
| Channels | 4 video channels |
| Housing | Metal housing |
| Inputs | |
| HDMI | 3 x HDMI 1.4 |
| HDMI / alternative to DisplayPort | 1 x HDMI 1.4, only usable when DisplayPort is not in use |
| DisplayPort | 1 x DisplayPort, only usable when one of the HDMI inputs is not in use |
| Audio 3.5 mm | 2 x analog audio, 3.5 mm jack |
| Audio RCA | 2 x analog audio, RCA |
| Outputs | |
| Program Outputs | 2 x HDMI 1.4 program |
| Multiview | 1 x HDMI 1.4 multiview |
| Audio Output | 1 x analog audio, 3.5 mm jack |
| USB Video Out | 1 x USB Type-C, UVC video out |
| USB Recording | 1 x USB Type-A |
| Further Connections | |
| Tally | 1 x D-Sub 15-pin |
| Ethernet | 1 x RJ45 / LAN |
| SD Card | 1 x SD memory card slot |
| Power Connector | 1 x DC in, 12 V barrel connector |
| Video, Streaming and Recording | |
| HDMI Input Signals | Up to 1920x1080/60p |
| DisplayPort Input Signal | Up to 2560x1600 |
| Program Output | Full HD up to 1080/60p |
| USB Standard | UVC / UAC |
| Streaming | RTMP streaming |
| Recording | To USB storage device or SD card |
| Recording Codec | H.264 / H.265 |
| Recording Bitrate | Up to 32 Mbit/s |
| Production Features | |
| Transitions | Cut, wipe, fade-to-black |
| Wipes | Top, bottom, left, right |
| Picture-in-Picture | PiP with freely selectable position and size |
| Control | Operation on the device or via web browser |
| Tally | Tally output for signaling the active camera |
| Dimensions and Weight | |
| Dimensions | approx. 4.5 x 114.1 x 14.1 cm (W/D/H) |
| Weight | approx. 1.1 kg |
| Power Supply | |
| Voltage Supply | DC 12 V |
| Power Consumption | approx. 15 W |
| Scope of Delivery | |
| Unit | 1 x AVMatrix HVS0401E 4-CH video switcher |
| Power Supply | 1 x power supply |
| USB Cable | 1 x USB-A to USB-C adapter cable |
| Tally | 1 x tally adapter |
Questions & Answers▲
How many video inputs does the HVS0401E support?
The HVS0401E provides four video inputs. Three of them are HDMI inputs, and one can alternatively be used as a DisplayPort input. All inputs support Full HD signals up to 1920x1080 at 60p.
What video resolution does the program output support?
The program output supports Full HD resolutions up to 1080/60p, making it suitable for live production workflows that require high-quality output.
Can the HVS0401E stream directly to online platforms without an external encoder?
Yes, the device includes an integrated RTMP encoder that allows direct streaming to supported platforms without requiring any additional external encoding hardware.
What recording formats and bitrates are supported?
Recording is available in H.264 or H.265 at up to 32 Mbit/s. Files can be written directly to connected USB storage or an SD card, enabling simultaneous recording alongside live output and streaming.
Does the HVS0401E work as a webcam or video capture source for a computer?
Yes, the USB Type-C port on the device is recognised by computers as a UVC and UAC source. This means it can be used directly with software such as OBS, vMix or XSplit without installing additional drivers.
Which transition effects are available for live switching?
The mixer offers smooth dissolves, wipe transitions and fade-to-black. These can be applied during live production to switch between sources in a visually controlled manner.
Is picture-in-picture supported, and can the overlay be positioned freely?
Yes, picture-in-picture is supported. The position and size of the PiP overlay can be freely selected, giving flexibility for different presentation and production layouts.
How can the device be controlled during a production?
Operation is possible directly on the device itself or remotely via a web browser. This allows control from a separate computer or tablet without requiring dedicated control software.
Does the HVS0401E include a tally output?
Yes, a tally output is included. It can signal which camera is currently active, making it useful in multi-camera setups where camera operators need visual feedback about the live source.
Is the device suitable for mobile productions?
Yes, the compact form factor and metal housing make it well suited for mobile use. It is also appropriate for fixed installations such as small control rooms, conference rooms, worship services and training environments.
What is included in the scope of delivery?
The package includes one AVMatrix HVS0401E 4-channel video mixer.
