AVMATRIX H4M Portable Audio Video Switcher
4 HDMI Inputs, 6 Mic Channels, DSP Effects & Live Streaming
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12677 | manufacturer number: Shark H4M | EAN/UPC: 6971118003099

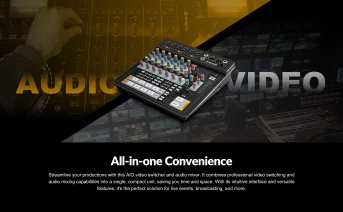

The AVMATRIX H4M is a portable audio-video switcher for mobile live productions, streaming, podcasts, events and studio applications. It combines video switching, audio mixing, streaming, recording and USB-C output in a compact device.

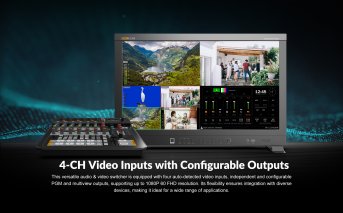

4 HDMI inputs are available for video processing. Output is via 2 HDMI PGM outputs, one HDMI multiview output and USB Type-C. This makes the H4M suitable for live directing, online streaming, training, worship services, events and hybrid production environments.

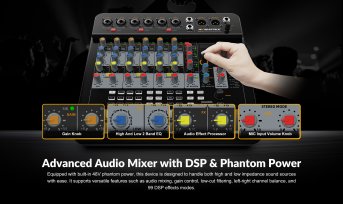

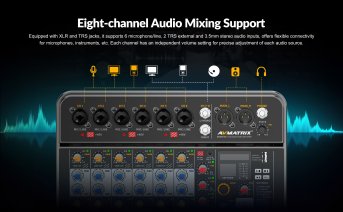

In the audio section, the AVMATRIX H4M offers 6 microphone inputs, 2 stereo inputs and 4-channel embedded audio. Additionally, XLR outputs, TRS monitoring, 48V phantom power, gain control, signal LEDs, 2-band EQ, low-cut filter and mono/stereo switching are available.
The integrated DSP effects processor offers 99 effect modes. The feature set is further complemented by a dedicated Bluetooth player, an MP3 recorder/player and the ability to use the device as a USB sound card.

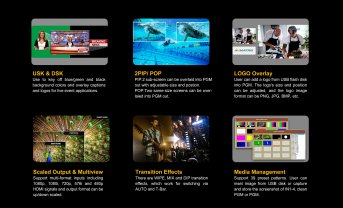

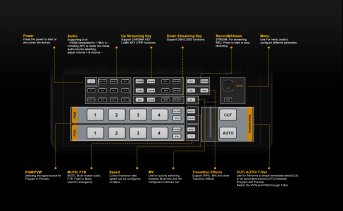

For live productions, the AVMATRIX H4M supports features such as luma key, chroma key, PIP/POP, DSK, logo overlay and transitions via T-Bar, AUTO or CUT. Available transition effects include WIPE, MIX and DIP.
- Live streaming and webcasts
- Mobile live production
- Podcasts and hybrid audio/video setups
- Events, training and presentations
- Worship services and club productions
- Small studio and directing applications
- All-in-one audio-video switcher in a portable form factor
- 4 HDMI inputs
- 6 microphone inputs and 2 stereo inputs
- 4-channel embedded audio
- Balanced XLR outputs and TRS monitoring
- 48V phantom power for XLR microphones
- 99 DSP effects processor modes

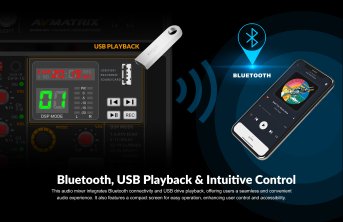

- Dedicated Bluetooth player
- MP3 recorder/player and USB sound card function

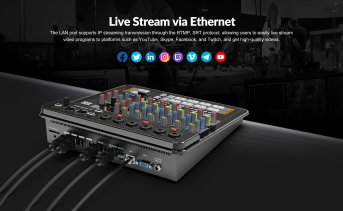

- RTMP and SRT streaming
- Recording to USB storage or SD card
- Luma key, chroma key, PIP/POP, DSK and logo overlay
- Transitions via T-Bar, AUTO or CUT
- Transition effects including WIPE, MIX and DIP
Real product can look different to picture

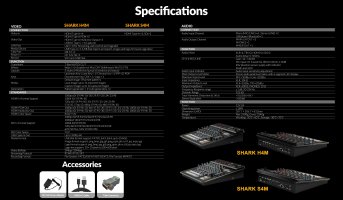

techn. Specs▲
| General | |
| Product Type | Portable Audio-Video Switcher |
|---|---|
| Channels | 4 video channels |
| Live Monitor | Yes |

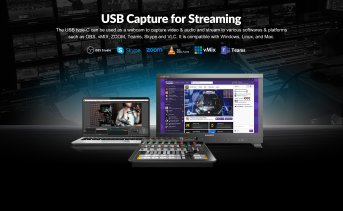

| USB Capture | Yes |
| Video | |
| Video Inputs | 4 x HDMI |
| Program Outputs | 2 x HDMI PGM |
| Multiview Output | 1 x HDMI Multiview |
| USB Output | 1 x USB Type-C |
| Audio | |
| Microphone Inputs | 6 x microphone input |
| Stereo Inputs | 2 x stereo input |
| Embedded Audio | 4-channel embedded audio |
| Audio Outputs | Balanced XLR outputs and TRS monitoring |
| Phantom Power | 48 V for XLR |

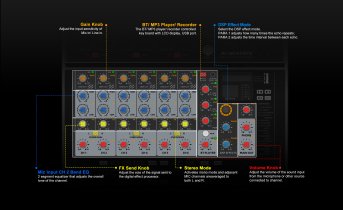

| Audio Control | Gain control, signal LED, 2-band EQ, low-cut filter, mono/stereo switching, volume adjustment |
| DSP Effects | 99 effect processor modes |
| Streaming and Recording | |
| Streaming Protocols | RTMP, SRT |
| Recording | Recording to USB storage or SD card |
| USB Soundcard | Yes |
| MP3 Function | MP3 recorder / player |
| Bluetooth | Separate Bluetooth player |
| Production Features | |
| Keying | Chroma Key, Luma Key, Downstream Key |
| Image Features | PIP/POP and logo overlay |
| Transitions | T-Bar, AUTO, CUT |
| Transition Effects | WIPE, MIX, DIP |
| Connections | |
| Connection Types | HDMI, 6.3 mm jack, RJ45/LAN, SD slot, Tally, USB-A, USB Type-C, XLR |
Questions & Answers▲
How many HDMI inputs does the AVMATRIX H4M provide?
The H4M provides 4 HDMI inputs for connecting cameras, computers or other video sources simultaneously.
What video outputs are available on the H4M?
The device offers 2 HDMI program outputs, one HDMI multiview output and a USB Type-C output, making it suitable for directing, streaming and monitoring simultaneously.
How many microphone inputs does the H4M support?
It supports 6 microphone inputs alongside 2 stereo inputs and 4-channel embedded audio, covering a wide range of audio setups.
Does the H4M support 48V phantom power?
Yes, 48V phantom power is available for XLR microphone inputs, allowing the use of condenser microphones without an external power supply.
What audio processing features does the H4M include?
The audio section includes gain control, a 2-band EQ, a low-cut filter, mono/stereo switching, signal LEDs and TRS monitoring output for comprehensive on-site control.
How many DSP effect modes does the built-in effects processor offer?
The integrated DSP effects processor offers 99 effect modes, providing a broad range of vocal and audio processing options for live and studio use.
What streaming protocols does the H4M support?
The H4M supports RTMP and SRT streaming protocols, enabling direct live streaming to common online platforms and CDNs.

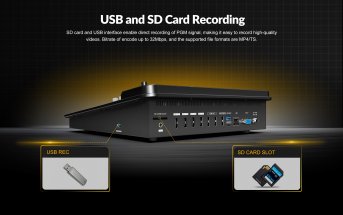

Can the H4M record content locally?
Yes, recording is supported to both SD card and USB drive, so footage can be saved locally without additional hardware.
What video transition effects are available?
Transitions can be executed via T-Bar, AUTO or CUT. Available transition effect types include WIPE, MIX and DIP.
Does the H4M support picture-in-picture or overlay features?
Yes, the H4M supports PIP, POP, DSK, logo overlay, luma key and chroma key, allowing flexible compositing for professional-looking productions.
Can the H4M be used as a USB audio interface?
Yes, the device can function as a USB sound card, making it usable as an audio interface for connected computers.
Does the H4M have a built-in Bluetooth player?
Yes, a dedicated Bluetooth player is integrated, allowing wireless audio playback directly from mobile devices or other Bluetooth sources.
What typical use cases is the H4M designed for?
The H4M is suited for live streaming, mobile live production, podcasts, events, training sessions, worship services and small studio or directing environments.
