AVMATRIX Shark H4 PLUS – Full-HD Video Mixer
4x HDMI Inputs, Streaming, Recording & 10.1" Multiview Display
article number: 12733 | manufacturer number: SHARKH4PLUS | EAN/UPC: 6971118002382
The AVMatrix SHARK H4 PLUS is a compact Full-HD video mixer for live production, streaming, training, conferencing, event technology and mobile production applications. The unit features 4 HDMI inputs with automatic signal detection and processes video formats up to 1920x1080/60p.
With an integrated 10.1-inch IPS Full-HD display, T-Bar transition lever, streaming function, USB-C capture output, recording function to USB or SD card, and tally output, the SHARK H4 PLUS offers a versatile all-in-one solution for compact multi-camera productions.
The four HDMI inputs are suitable for cameras, computers, media players and other HDMI sources. Automatic signal detection allows different input signals to be integrated quickly without unnecessarily interrupting the production workflow.
The video mixer supports HDMI signals in the RGB/YUV color space and outputs the program signal via HDMI, LAN streaming or USB-C capture. This makes the SHARK H4 PLUS suitable for both local productions and livestreaming via PC or directly over the network.
The integrated 10.1-inch IPS FHD display shows the most important production signals directly on the unit. This allows the mixer to be operated without a separate control monitor, keeping it particularly compact for mobile use.
The multiview display supports various layouts in landscape and portrait orientation, allowing input signals, program output and production status to be monitored clearly.
For livestreaming, the AVMatrix SHARK H4 PLUS supports the protocols RTMP, RTMPS and SRT, enabling the program signal to be used for professional streaming workflows.
In addition, a USB Type-C capture output with up to 1080p60 is available. Via USB, the mixer can be used with a computer running streaming or conferencing software.
Recording is done either to USB storage or SD card. FAT32, exFAT and NTFS are supported, as well as the file formats MP4 and TS. Recordings can be saved in segments of 1 to 120 minutes.
Classic control functions such as T-Bar, AUTO and CUT are available for live switching, allowing sources to be transitioned directly, automatically or manually.
Integrated effects include WIPE, MIX, DIP, STILL / Freeze, Pattern, Mute and Fade to Black, enabling clean transitions, pause images and controlled program switching directly on the unit.
The SHARK H4 PLUS offers Luma Key and Chroma Key for graphic overlays, green screen applications and simple virtual studio setups. Two PIP functions and POP are also available.
Preset images, imported images and captured images are available for graphic content and production aids. A pattern generator and two color generators are also integrated.
The integrated audio mixer processes the audio signals from the four HDMI inputs as well as two MIC/Line inputs via 3.5mm stereo audio, allowing camera audio, playback sources and external audio sources to be processed directly in the mixer.
An audio delay function of 0 to 500 ms supports synchronization of picture and sound. A 3.5mm headphone output is also available for monitoring the audio signal.

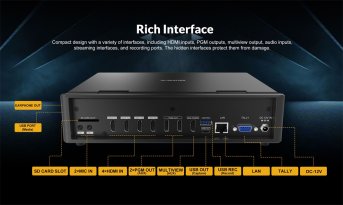

The AVMatrix SHARK H4 PLUS features two HDMI PGM outputs, one HDMI multiview output, LAN for streaming and USB-C for capture. A tally output via DB-15 GPIO is provided for multi-camera productions.
This makes the video mixer suitable for compact production desks, streaming setups, presentations, training rooms, club productions, churches, stage applications and mobile event productions.
- Full-HD video mixer with 4x HDMI input
- Integrated 10.1-inch IPS Full-HD display
- Automatic signal detection up to 1080p60
- 2x HDMI PGM output
- 1x HDMI multiview output
- LAN streaming with RTMP, RTMPS and SRT
- USB Type-C capture output up to 1080p60
- Recording to USB or SD card
- Recording formats MP4 and TS
- T-Bar, AUTO and CUT for live switching
- WIPE, MIX, DIP, STILL / Freeze, Pattern, Mute and FTB
- Luma Key and Chroma Key
- 2x PIP and POP
- Downstream Key for DSK and logo
- Media library for presets, imported images and captured images
- Audio mixer for 4 HDMI sources and 2 MIC/Line inputs
- Audio delay from 0 to 500 ms
- Tally output via DB-15 GPIO
- Wide-range power supply DC 7 to 24 V
- 1x AVMatrix SHARK H4 PLUS video mixer
- 1x 12V power supply
- 1x USB-A to USB-C cable
Real product can look different to picture
techn. Specs▲
| Connections | Display | 10,1 inch IPS FHD |
| Video Inputs | 4 x HDMI | |
| Video Outputs | 2 x HDMI PGM, 1 x HDMI Multiview, 1 x LAN RJ45 for Streaming, 1 x USB Type-C for Capture | |
| Further Interfaces | 1 x USB-A and 1 x SD card for recording, 1 x USB-A for image import and firmware upgrade, 1 x Tally DB-15 GPIO | |
| Audio Inputs | 2 x MIC / Line, 3.5 mm stereo audio | |
| Audio Output | 1 x headphone output, 3.5 mm stereo audio | |
| Streaming and Recording | Encoding Bitrate | 2 / 4 / 8 / 12 / 16 / 24 / 32 Mbps, CBR / VBR |
| Streaming Protocols | RTMP, RTMPS, SRT | |
| Storage Format | USB / SD card, supports FAT32, exFAT and NTFS | |
| Recording File Format | MP4, TS | |
| Recording Segments | 1 / 5 / 10 / 20 / 30 / 60 / 90 / 120 minutes | |
| Features | Transitions | T-Bar, AUTO, CUT |
| Effects | WIPE with 11 x 3 patterns, MIX, DIP, STILL / Freeze, PATTERN, MUTE, FTB | |
| Multiview Layouts | 2 layout styles: Landscape and Portrait | |
| Upstream Key | 1 x Luma Key, 1 x Chroma Key, 2 x PIP, POP | |
| Downstream Key | 1 x DSK, 1 x Logo | |
| Media Format | 39 preset images, up to 16 imported images, up to 16 capture images | |
| Generators | 1 x Pattern Generator, 2 x Color Generator | |
| Audio Mixer | 4 video inputs and 2 MIC / Line inputs | |
| Audio Delay | 0 to 500 ms | |
| Signal Switching | Multiformat auto signal detection | |
| Video Standard | Input Format | Automatic signal detection up to 1080p60 |
| Color Space | HDMI: RGB / YUV | |
| HDMI PGM / MV Output | 1080p 60 / 59,94 / 50 / 48 / 47,95 / 30 / 29,97 / 25 / 24 / 23,98; 1080i 60 / 59,94 / 50 | |
| USB Capture Output | up to 1080p60 | |
| General | Power Supply | DC 7 to 24 V |
| Power Consumption | max. 20.4 W at 12 V / 1.7 A | |
| Dimensions | 261,4 x 193,9 x 58 mm | |
| Weight | Net approx. 1734.5 g, gross approx. 2240 g | |
| Operating Temperature | -20 °C to +50 °C |
Questions & Answers▲
How many HDMI inputs does the AVMATRIX Shark H4 PLUS have, and what sources are compatible?
The AVMATRIX Shark H4 PLUS features four HDMI inputs. Compatible sources include cameras, computers, media players, and other standard HDMI devices. Automatic signal detection allows different sources to be connected and recognized quickly without interrupting the production workflow.
What is the maximum video resolution supported by the mixer?
The mixer processes video signals up to 1920x1080 at 60 progressive frames per second, which corresponds to Full-HD 1080p60. This applies to both the input signals and the program output.
Does the unit have a built-in display, and what information does it show?
Yes, a 10.1-inch IPS Full-HD display is integrated directly into the unit. It presents a multiview layout showing input signals, the program output, and production status information. This eliminates the need for a separate external monitor during operation.
Which multiview layout options does the integrated display support?
The integrated display supports multiple layout options in both landscape and portrait orientation, allowing users to monitor all relevant production signals in a clearly arranged view according to their individual preferences and setup requirements.
Which streaming protocols does the AVMATRIX Shark H4 PLUS support?
The unit supports RTMP, RTMPS, and SRT streaming protocols. These protocols enable the program signal to be sent directly to streaming platforms and professional streaming workflows over a network connection.
Can the program output be captured via a connected computer?
Yes, a USB Type-C capture output with a resolution of up to 1080p60 is available. This allows the program signal to be captured directly by a connected computer, making the unit suitable for use as an external capture device in addition to standalone streaming and recording.
What recording options are available for local storage?
The unit supports recording to both USB storage devices and SD cards. This makes it possible to save the program signal locally during live productions without relying on an external computer or recording device.
What color spaces are supported for the HDMI input signals?
The HDMI inputs support both RGB and YUV color spaces, ensuring broad compatibility with cameras, computers, and other HDMI sources commonly used in live production environments.
Does the mixer include a T-Bar transition control?
Yes, a physical T-Bar transition lever is built into the unit. It allows manual, tactile control of transitions between sources, which is a standard feature in professional video mixing workflows.
Is there a tally output available on the unit?
Yes, the unit includes a tally output. This allows tally lights connected to cameras or other devices to indicate which source is currently live on the program output, supporting professional multi-camera production setups.
Is the AVMATRIX Shark H4 PLUS suitable for mobile and on-location productions?
Yes, its compact form factor combined with the integrated multiview display, built-in streaming, and local recording capabilities make it well suited for mobile productions, on-location events, and situations where space and equipment weight are limiting factors.
What output options are available for the program signal?
The program signal can be output via HDMI, streamed over a LAN connection using RTMP, RTMPS, or SRT, and captured via the USB Type-C output. This combination allows simultaneous local output and remote distribution of the program signal.
