VariZoom VZSTEALTH LANC rear camera operation
Zoom & focus control for Sony, Canon, Panasonic
article number: 4960 | manufacturer number: VZSTEALTH | EAN/UPC: 877038000667

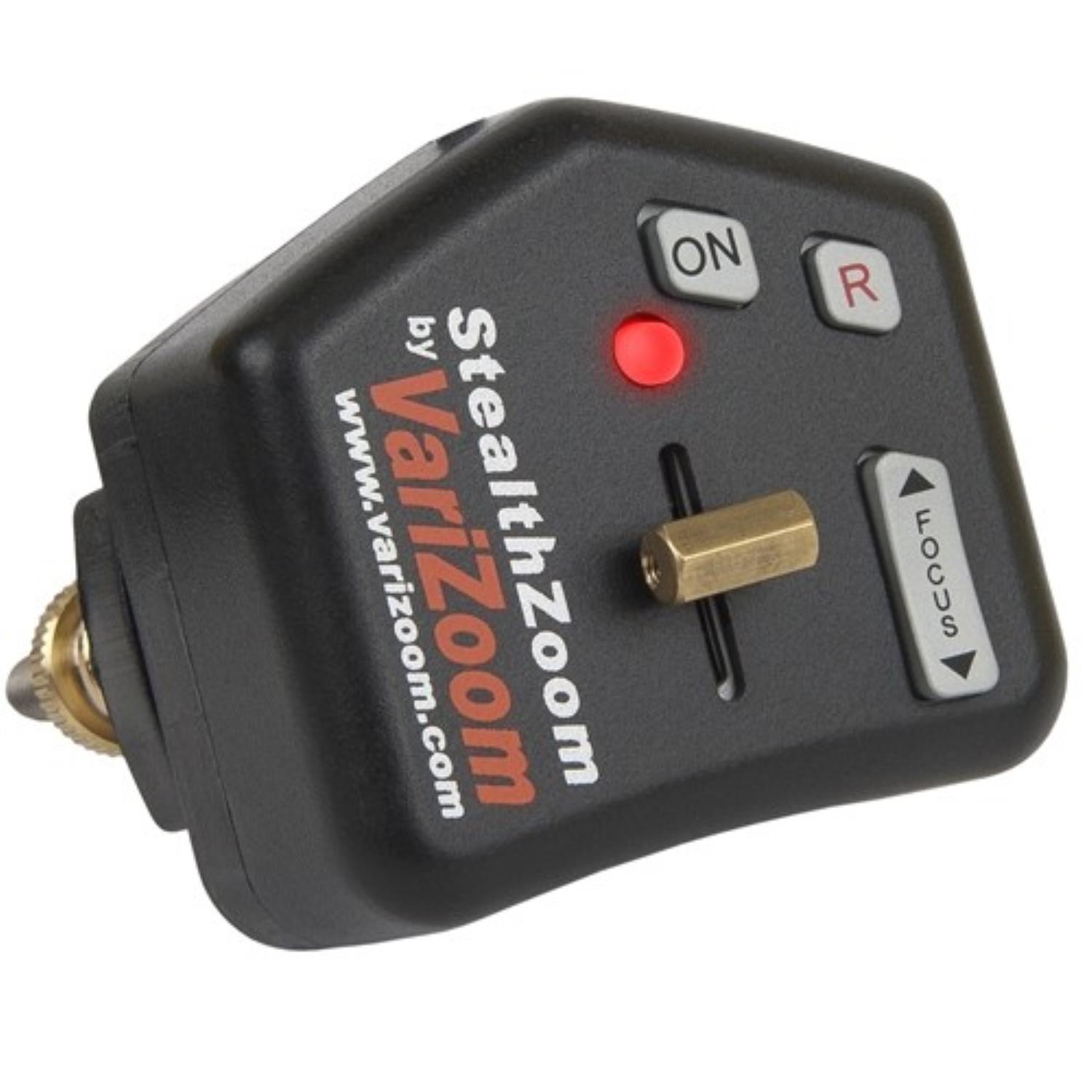

VariZoom VZSTEALTH – LANC Rear Camera Control for Sony, Canon and Panasonic Cameras
The VariZoom VZSTEALTH is a compact LANC rear camera control for controlling compatible video and camcorder systems. Via the proven LANC protocol, functions such as zoom and focus can be operated precisely and directly. The remote control is compatible with numerous Sony, Canon and Panasonic consumer and prosumer cameras.
Compact Design for Flexible Applications
Thanks to the short zoom lever (joystick), the VZSTEALTH impresses with its particularly compact form factor. It is ideally suited for use on shoulder rigs, in confined setups or for mobile applications. Even in special use cases – such as presenter work or action shooting – the control can be operated discreetly in the palm of the hand.
LANC Protocol
- LANC
- Control-L
- CTRL-L
Compatibility
Compatible with a wide range of professional and semi-professional camera models, including:
PXW-FS7M2, PXW-FS7, PXW-FS7K, PXW-FS5, NEX-FS700RH, NEX-FS700R, NEX-FS700EK, NEX-FS700E, NEX-FS100EK, NEX-FS100E, NEX-FS100P, NEX-FS100PK, PXW-X200, PXW-X180, PXW-X160, PXW-Z150, NEX-EA50M, HXR-NX5R, HXR-NX3/1, HXR-NX100, HXR-MC2000E, HXR-MC50E, HXR-MC1500P, HXR-NX3D1E, HXR-NX5E, HXR-NX70E, HXR-NX3/VG1, HVR-Z5E, HVR-A1E, HVR-HD1000E, HVR-S270E, HVR-Z1E, HVR-V1E, HVR-Z7E, DSR-PD170P, DSR-PD175P, PXW-Z190, PXW-Z280, Sony FX6 and many more models.
Real product can look different to picture
techn. Specs▲
| Weight | 0,45 kg (1 lb) |
| Dimensions | 20,3 × 15,2 × 10,2 cm (8 × 6 × 4 in) |
| UPC | 877038000667 |
| Width | 5,1 cm (2 in) |
| Length | 4,4 cm (1.75 in) |
| Max. Clamp Diameter | 3,2 cm (1.25 in) |
| Cable Length | 101,6 cm (40 in) |
| Net Weight | 0,09 kg (0.20 lb) |
| Construction | ABS |
| Compatibility |
Compatible with Sony, Canon, JVC and Blackmagic cameras with 2.5 mm remote port. Panasonic AG-CX10, HC-X2000, HC-X1500, AG-CX350 and AU-EVA1. Also works with many Sony cameras via the "Multi" port with an additional VZAV/LANC adapter and Sony VMC-AVM1 adapter (feature set depends on camera model / lens). |
| Warranty | 2 Years (Parts & Labor) |
Questions & Answers▲
Which camera functions can be controlled with the VZSTEALTH?
The zoom and focus of compatible cameras can be operated precisely and directly via the VZSTEALTH. It is controlled via the proven LANC protocol, which is also known as Control-L and CTRL-L.
Which camera brands is the VZSTEALTH compatible with?
The VZSTEALTH is compatible with a variety of Sony, Canon and Panasonic cameras from the consumer and prosumer sector that have a LANC connection.
Which transmission protocol is used?
The remote control works with the LANC protocol, which is also known as Control-L or CTRL-L. The prerequisite for use is a LANC connection on the camera used.
How long is the VZSTEALTH cable?
The VZSTEALTH cable is 101 cm long, which allows for flexible positioning of the remote control on the set
How compact is the VZSTEALTH?
The VZSTEALTH has a width of 5.1 cm and a length of 4.4 cm. The short zoom lever results in a particularly compact design that is suitable for use in cramped setups.
How heavy is the VZSTEALTH?
The VZSTEALTH weighs 0.45 kg. Together with the compact dimensions of 20.3 × 15.2 × 10.2 cm, it is well suited for mobile applications.
For which areas of application is the VZSTEALTH particularly suitable?
The compact design makes it VZSTEALTH is ideal for use on shoulder supports, for presentations, action recordings and generally for mobile or space-limited setups. The control can be carried out discreetly in the palm of your hand.
Is the VZSTEALTH also compatible with Sony film cameras such as the FX6?
Yes, the VZSTEALTH is also compatible with the Sony FX6, among other things, if the camera has a LANC port. In addition, it supports numerous other Sony models such as the PXW-FS7, PXW-FS5, PXW-Z150 or PXW-Z280.
How long does the warranty last on the VZSTEALTH?
The VZSTEALTH comes with a 2-year guarantee.
Can the VZSTEALTH be mounted on a shoulder stock?
Yes, the compact one The design of the VZSTEALTH is expressly designed for use on shoulder stocks. It can be integrated there to save space and enables ergonomic operation during recording.
Is the VZSTEALTH also compatible with older Sony camcorders such as the HVR-Z1E?
Yes, the VZSTEALTH is Compatible with a variety of older Sony camcorder models, including the HVR-Z1E, HVR-Z5E, HVR-Z7E as well as DSR-PD170P and DSR-PD175P.
The VZSTEALTH requires a separate Power supply?
The VZSTEALTH is powered via the camera's LANC port. A separate power supply or batteries are not required.
