VariZoom VZSTEALTHLX – LANC rear camera operation
Zoom, focus & recording controls for Sony and Canon
article number: 5595 | manufacturer number: VZSTEALTHLX | EAN/UPC: 877038000681
The VariZoom VZSTEALTHLX is a compact and powerful LANC remote control for control professional video cameras. It enables precise control of zoom, focus and recording functions and supports all common LANC commands. Thanks to its intuitive operation, the VZSTEALTHLX is suitable for both professional and semi-professional applications.
The VZSTEALTHLX expands the proven design of the Stealth series with additional functions for more control during the Recording:
- Data control: Showing and hiding recording information
- Autofocus control: Switching between autofocus and manual focus
- Edit Search: Navigation through recorded material (pre- and rewind)
The pressure-sensitive Throttle controller enables continuous control of the zoom speed - from slow, steady zoom movements to fast movements. This allows both smooth and dynamic tracking shots to be implemented precisely.
- Variable zoom speed
- Smooth and jerk-free movements
- Fast response times for dynamic Scenes
- Record start/stop button in low-profile design
- Manual focus control via separate Switch
- Standby function via on/off button
- LED display for recording and status information
- No external power supply required (Plug-and-Play)
Compatible with a variety of LANC-enabled video cameras, especially from Sony and selected ones Canon models.
- Sony PXW-FS7M2, PXW-FS7, PXW-FS5
- Sony NEX-FS700, NEX-FS100
- Sony HXR-NX5R, HXR-NX100 [
- Sony HVR-Z5E, HVR-V1E, HVR-Z1E
- Sony DSR-PD170P, DSR-PD175P
- Sony PXW-Z190, PXW-Z280
- Sony FX6
- Other LANC-compatible camera models
The compact The design makes the VZSTEALTHLX ideal for use on tripods, shoulder rigs, gimbals or cranes. It offers reliable and direct camera control without additional configuration effort.

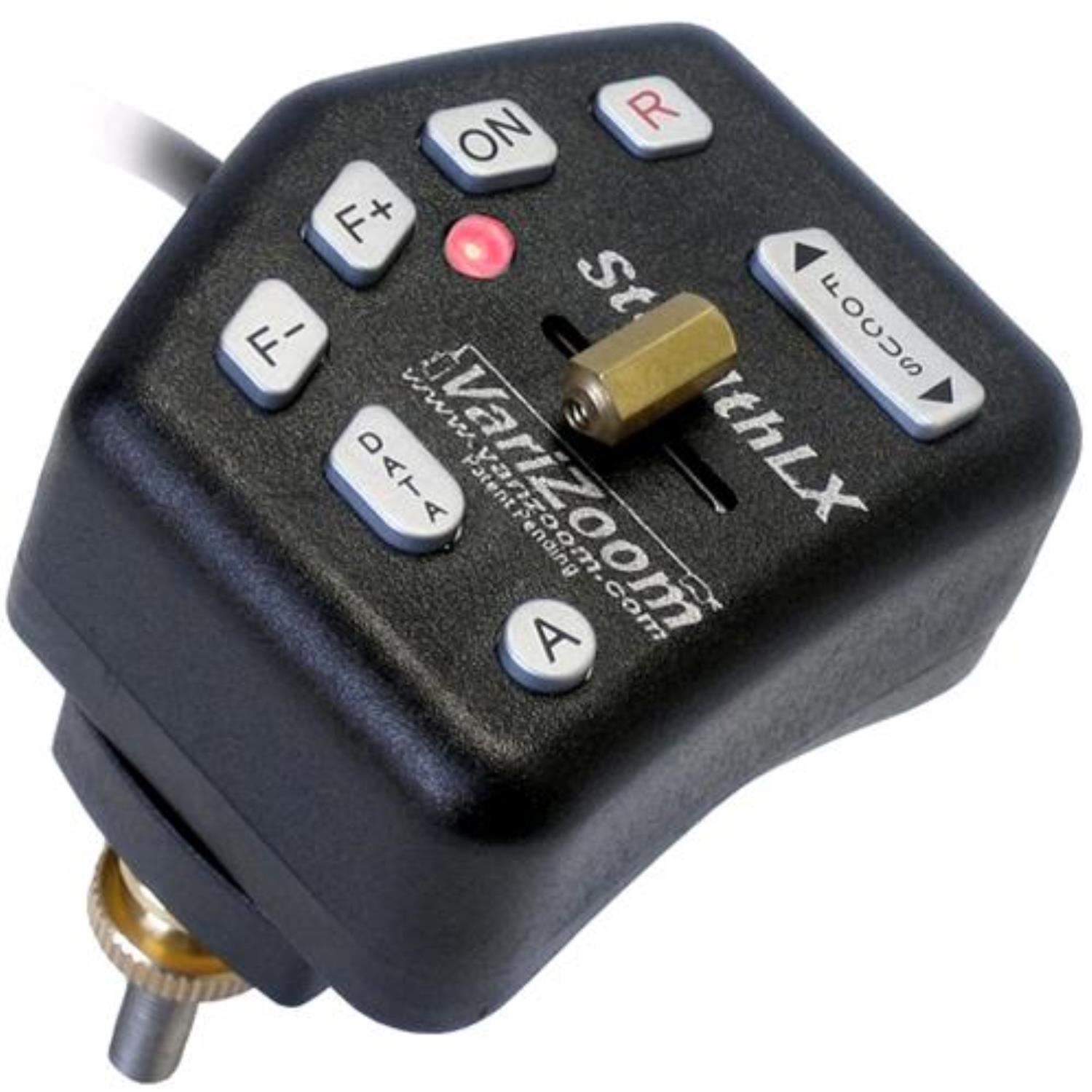

Real product can look different to picture
techn. Specs▲
| Weight | 0.45 kg (1 lb) |
| Dimensions | 20.3 × 15.2 × 10.2 cm (8 × 6 × 4 in) |
| UPC | 877038000681 |
| Width | 5.1 cm (2 in) |
| Length | 4.4 cm (1.75 in) |
| Max. Clamp diameter | 3.2 cm (1.25 in) |
| Cable length | 101.6 cm (40 in) |
| Dead weight | 0.09 kg (0.20 lb) |
| Construction | ABS |
| Compatibility | Compatible with Sony, Canon, JVC and Blackmagic cameras with 2.5mm remote port. Panasonic AG-CX10, HC-X2000, HC-X1500, AG-CX350 and AU-EVA1. Also works with many Sony cameras via the “Multi” port with additional VZAV/LANC adapter and Sony VMC-AVM1 adapter (functionality depends on camera model/lens). |
| Guarantee | 2 years (parts & labor) |
Questions & Answers▲
What camera systems is the VariZoom VZSTEALTHLX compatible with?
The VZSTEALTHLX is compatible with a wide range of LANC-enabled cameras, primarily from Sony and selected Canon models. Supported Sony cameras include the PXW-FS7M2, PXW-FS7, PXW-FS5, PXW-Z190, PXW-Z280, FX6, NEX-FS700, NEX-FS100, HXR-NX5R, HXR-NX100, HVR-Z5E, HVR-V1E, HVR-Z1E, DSR-PD170P, and DSR-PD175P, as well as other LANC-compatible models.
Does the VZSTEALTHLX require an external power supply?
No external power supply is required. The controller is plug-and-play and draws power directly through the LANC connection of the camera, so no batteries or separate power source are needed.
What functions does the zoom control offer?
The VZSTEALTHLX features a pressure-sensitive throttle controller that enables continuous, variable zoom speed control. This allows smooth, jerk-free movements as well as fast, dynamic zooms, making it suitable for precise tracking shots and fast-action scenes alike.
Can the VZSTEALTHLX control focus manually?
Yes, the unit includes a dedicated manual focus control switch. It also allows toggling between autofocus and manual focus modes directly from the controller without touching the camera.
Is it possible to start and stop recording remotely with this controller?
Yes, the VZSTEALTHLX includes a low-profile record start/stop button that allows full remote control of the camera recording function via the LANC interface.
What additional control functions does the VZSTEALTHLX offer beyond basic zoom and record?
In addition to zoom and record control, the unit supports data control for showing and hiding recording information on screen, autofocus switching between auto and manual focus, and an Edit Search function for navigating through recorded material including fast-forward and rewind.
Does the controller provide any status feedback to the operator?
Yes, the VZSTEALTHLX features an LED display that shows recording status and other operational information, allowing the operator to monitor the camera state at a glance without viewing a monitor.
What is the standby function and how is it activated?
The unit includes a dedicated on/off button that activates a standby mode, which helps prevent accidental triggering of camera functions when the controller is not in active use.
What rigs and mounting setups is the VZSTEALTHLX suitable for?
Thanks to its compact dimensions of 20.3 x 15.2 x 10.2 cm and a weight of approximately 0.45 kg, the controller is well suited for use on tripods, shoulder rigs, gimbals, and camera cranes, offering flexible integration into a wide range of production setups.
Is any software configuration or driver installation required to use the VZSTEALTHLX?
No software installation or configuration is required. The controller connects directly via the LANC port and is immediately operational, making it a true plug-and-play solution for on-set use.
Is the VZSTEALTHLX suitable for semi-professional use or is it intended only for professionals?
The controller is designed for both professional and semi-professional applications. Its intuitive layout and straightforward operation make it accessible to operators at different experience levels, while still offering the precision and range of control demanded in professional productions.
How does the VZSTEALTHLX connect to the camera?
The VZSTEALTHLX connects through the standard LANC port found on compatible Sony and Canon video cameras. No adapters or additional cables are required for supported camera models.
