VariZoom SnapCrane 12 Camera Crane
Modular jib with TCR100 tripod and DCR200 dolly
No returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 8753 | manufacturer number: VZSNAPCRANE12 | EAN/UPC: 877038008069

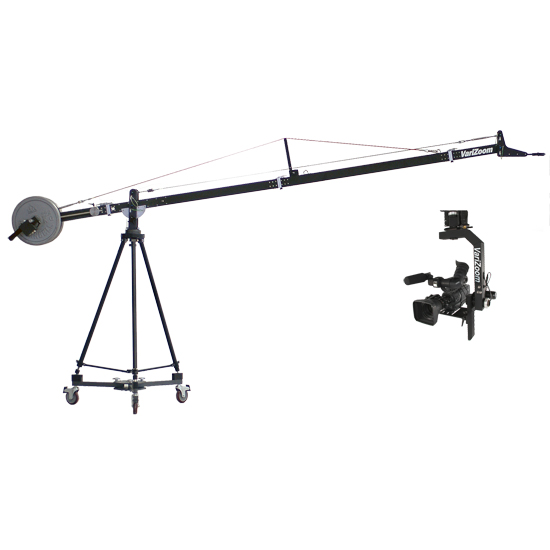

The VariZoom SnapCrane 12 is a modular camera jib for controlled sweeping, rising and lowering shots in professional film, video and broadcast production. This package includes the crane arm, the rigid TCR100 crane tripod and the DCR200 heavy-duty dolly with outriggers. A motorized remote head is not included.
The crane supports 3 documented setup modes across 3 distinct overall lengths. In its longest configuration it measures 4,22 m overall, reaches 3,35 m horizontally and provides a maximum camera height of 4,34 m (as defined in the manufacturer manual).
Locking dovetail joints, tethered stainless quick-release pins and a matched cable-tensioning system allow fast, largely tool-free assembly while providing structural rigidity.
The adjustable pivot brake and sliding counterweight fine adjustment support smooth, balanced movements. Counterweight plates are not included.
The SnapCrane 12 includes one extension section, allowing Compact, Mid-Size and full SnapCrane-12 setups.
The TCR100 is a rigid, non-telescopic crane tripod. The DCR200 dolly with outriggers supports setup on a flat, level surface. The fully loaded crane must not be freely rolled around on the dolly.
The camera platform can accept a suitable camera or separately purchased remote head. Total crane-tip load includes all attached accessories.
- SnapCrane 12 modular crane arm with required sections and support cables
- VariZoom TCR100 crane tripod
- VariZoom DCR200 heavy-duty dolly with outriggers
- Counterweight bar, crane assembly hardware and soft transport case
Note: Counterweight plates are not included.
techn. Specs▲
| Model | VZSNAPCRANE12 |
| Setup modes | 3 |
| Distinct crane lengths | 3 |
| Stored arm length | approx. 139.7 cm |
| Extension sections | 1 |
| Tripod | VariZoom TCR100 |
| Dolly | VariZoom DCR200 with outriggers |
| Remotehead | Not included |
| Counterweight plates | Not included |
| Compact – length / reach / height | 2,21 m / 1,73 m / 2,97 m |
| Mid-Size – length / reach / height | 2,82 m / 1,98 m / 3,28 m |
| SnapCrane 12 – length / reach / height | 4,22 m / 3,35 m / 4,34 m |
| Compact – vertical travel | 2,44 m |
| Mid-Size – vertical travel | 2,74 m |
| SnapCrane 12 – vertical travel | 3,81 m |
| Compact – crane arm capacity | 22,7 kg |
| Mid-Size – crane arm capacity | 22,7 kg |
| SnapCrane 12 – crane arm capacity | 13,6 kg (underslung) |
| Compact – crane arm weight | 16,3 kg (approx.) |
| Mid-Size – crane arm weight | 20,9 kg (approx.) |
| SnapCrane 12 – crane arm weight | 26,3 kg (approx.) |
Payload note: These are manufacturer crane arm ratings, not a certified camera payload for the full MC100 kit. The remote head, camera and accessories all contribute to the load.
Measurement: Maximum height refers to the overslung MC100 platform in the manual; vertical travel is measured to the camera platform.
Do not roll the fully loaded crane. Add counterweights gradually and remove them carefully before detaching the camera during disassembly.
Questions & Answers▲
How many setup modes does the SnapCrane 12 offer?
The SnapCrane 12 supports 3 documented operating configurations across 3 different overall crane lengths.
What is the reach of the SnapCrane 12?
In its longest configuration the crane reaches 3,35 m horizontally and measures 4,22 m overall.
Which tripod and dolly are included with SnapCrane 12?
This package includes the VariZoom TCR100 tripod and DCR200 heavy-duty dolly with outriggers.
Does the SnapCrane 12 include an MC100 remote head?
No. This model does not include a motorized remote head; one can be purchased separately.
