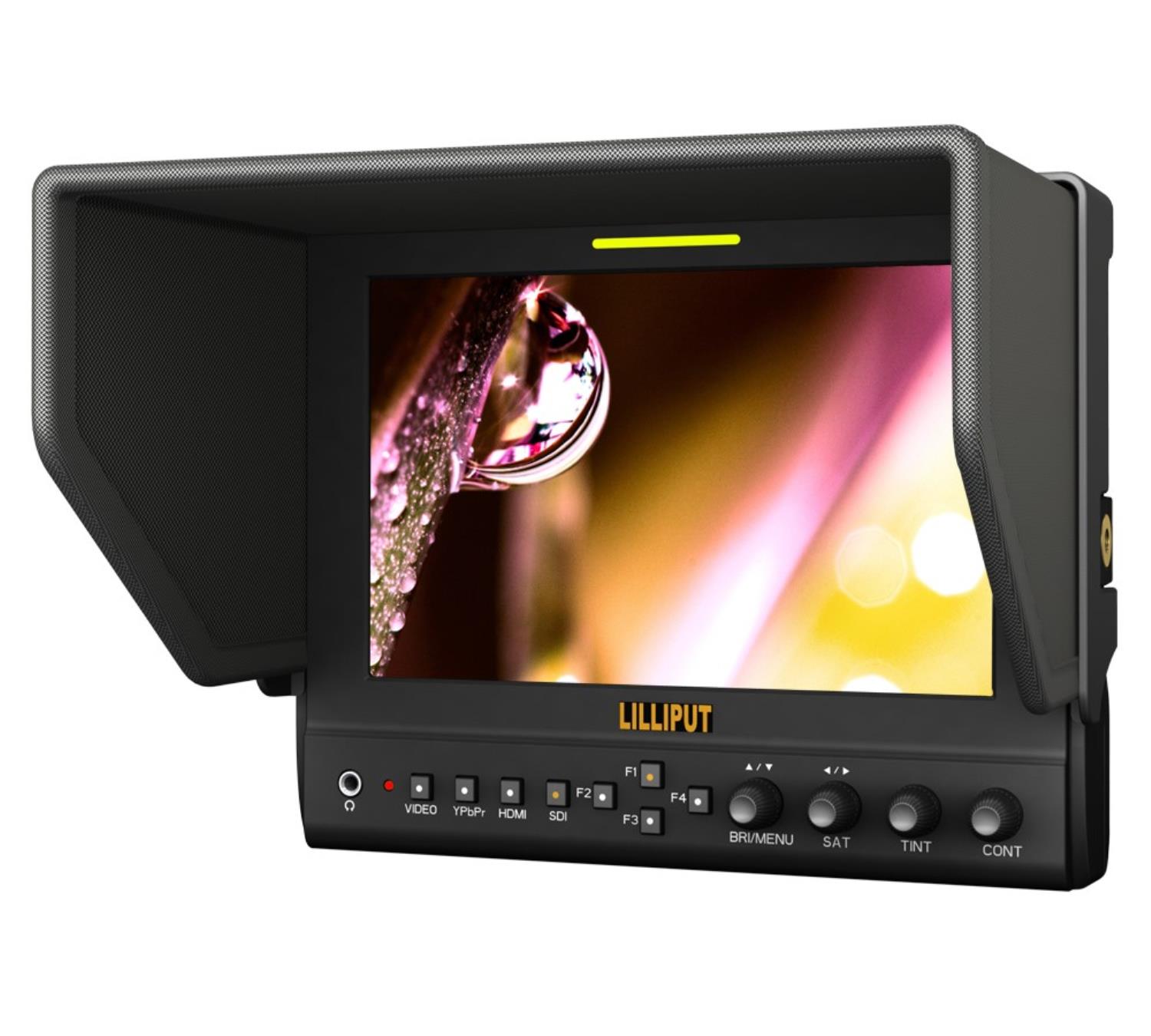

Lilliput 663S2 – 7-inch field monitor with SDI
Broadcast monitor in a metal housing for set use
article number: 10456 | manufacturer number: 663/S2 | EAN/UPC: 6950821600801
The Lilliput 663S2 is a reliable 7-inch field monitor for daily use in the EB, broadcast, studio and production sectors. The sturdy full metal housing, extensive accessories and professional monitoring functions make it an ideal companion on set.
The high-quality IPS panel offers high viewing angle stability and ensures a consistent image display from almost every perspective. The monitor is also compatible with cameras such as Canon 5D Mark II and Canon 5D Mark III as well as newer models.
The 663S2 has important auxiliary functions for precise image control during recording.
- Peaking for sharpness control
- False Color / False color display
- Exposure control
- Brightness distribution / histogram functions
- Ideal for DSLR, camcorder and Studio applications
- HD-SDI (BNC)
- Composite video (BNC)
- Component (BNC)
- HDMI Type A
- Audio input (RCA)
- HD-SDI (BNC)
- Composite video (BNC)
- HDMI Type A
- Headphone jack
- Integrated speaker
- 12 volts XLR power connection
Various battery adapters are available or in a package for mobile use included.
- V-Mount
- Gold-Mount
- Sony NP-F
- Canon LP-E6
- Other adapters depending on Application
- Lilliput 663S2 Monitor
- Sun protection visor
- Aluminum transport case
- Power supply
- XLR to DC adapter
- Hot shoe / hot shoe Bracket
- HDMI cable type A to type C
- V-mount battery plate
- Sony NP-F battery adapter
- Canon LP-E6 Battery adapter
Real product can look different to picture
techn. Specs▲
Technical Data
| Display | |
| Size | 7" |
|---|---|
| Resolution | 1280×800 |
| Brightness | 400 cd/m² |
| Aspect ratio | 16:10 |
| 800:1 | |
| Viewing angle | 178°/178° (H/V) |
| Inputs | |
| SDI input | 1 × 3G |
| HDMI input | 1 × HDMI 1.4 |
| YPbPr | 1 |
| Composite | 1 |
| Formats | |
| SDI formats | 720p 50/60, 1080i 50/60, 1080psF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI formats | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
| Audio | |
| SDI audio | 12ch 48kHz 24-bit |
| HDMI audio | 2-channel 24-bit |
| Studs | 3.5 mm - 2 channels 48 kHz 24 Bit |
| Built-in Speakers | 1 |
| Power verso rgung | |
| Operating performance | ≤11 W |
| DC In | DC 7-24 V |
| Compatible Batteries | NP-F series and LP-E6 |
| Input voltage (battery) | 7.2 V nominal |
| General | |
| Operating temperature | -20 °C - 60 °C |
| Storage temperature | -30 °C – 70 °C |
| Dimensions (W×H×D) | 191.5×152×31 / 141mm (with cover) |
| Weight | 760g / 938g (with Cover) |
Questions & Answers▲
What display size and resolution does the Lilliput 663S2 have?
The monitor has a 7-inch IPS display with a resolution of 1280×800 pixels and an aspect ratio of 16:10.
Which video inputs are available?
HD-SDI via BNC, composite video via BNC, component via BNC and HDMI Type A are available as video inputs. There is also an audio input via RCA.
Which SDI formats are supported?
The monitor supports 720p 50/60, 1080i 50/60, 1080psF 24/25/30 as well as 1080p 24/25/30/50/60 via a 3G-SDI input.
There is an SDI output to get the signal to loop on?
Yes, in addition to the SDI input there is also an HD-SDI output via BNC, so that the signal can be forwarded to other devices.
What monitoring auxiliary functions does it offer Monitor?
The monitor offers peaking for sharpness control, false color for exposure control and histogram functions for brightness distribution. These functions are particularly helpful for precise image control during recording.
How bright is the display and how wide is the viewing angle?
The IPS panel achieves a brightness of 400 cd/m² and offers a viewing angle of 178 degrees horizontally and 178 degrees vertically, which enables a uniform image display from almost any perspective.
Which battery systems is the monitor compatible with?
The monitor is compatible with V-mount, gold-mount, Sony-NP-F- and Canon LP-E6 batteries. Depending on the package, appropriate adapters are included or available separately.
How is the monitor attached to the set?
A hot shoe or hot shoe mount is included in the scope of delivery, which can be used to attach the monitor to a camera or rig can.
What housing material is used and is it suitable for daily set operation?
The housing is made of full metal and is therefore robust enough for daily use in EB, broadcast, studio and Production environments.
What is included in the scope of delivery?
The scope of delivery includes the monitor itself, a sunshade, an aluminum transport case, a power supply, an XLR to DC adapter, a hot shoe mount, a Type A to Type C HDMI cable, a V-mount battery plate and battery adapters for Sony NP-F and Canon LP-E6 included.
Does the monitor have an audio output?
Yes, there is both a headphone jack and a Integrated speaker available.
Is the monitor compatible with Canon DSLR cameras such as the 5D Mark II or 5D Mark III?
Yes, the monitor is specifically compatible with Canon 5D Mark II, Canon 5D Mark III and newer camera models compatible and is therefore also suitable for DSLR productions.
How is the monitor supplied with power if no battery is used?
A power supply is included for stationary operation. There is also a 12-volt XLR power connection, which can also be used to operate the monitor via external power sources with an XLR output.
