DVTEC MultiRig Stabilizer Pro shoulder rest
Spring support with hip belt and holster
article number: 7675 | manufacturer number: 5003 | EAN/UPC: 758263167809

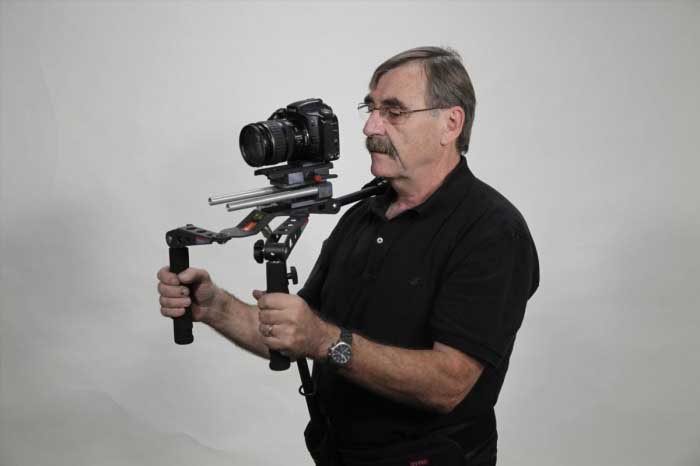

The DVTEC MultiRig Stabilizer Pro is an ergonomic shoulder support with integrated spring support that effectively transfers the camera weight to the hip, enabling stable and fatigue-reducing camera operation.
The central load distribution significantly relieves the arms and shoulders, allowing even longer shoots to be carried out comfortably and with minimal camera shake.
The spring support stabilizes not only the camera, but also additional accessories such as on-camera lights, batteries, or wireless components.
The shoulder pad can be flexibly repositioned and used as an additional handle, enabling a kind of "floating mode" for particularly smooth shots.
The system is supplied including a hip belt with holster, spring support, and accessory adapters, offering numerous mounting options for professional camera equipment.
Additional components such as wireless transmitters or batteries can be attached directly to the rig via the included accessory plate.
- MultiRig shoulder support
- Spring support
- Hip belt with holster
- Accessory adapter (hot shoe and 3/8" connection)
- Accessory plate for mounting additional devices
Real product can look different to picture
techn. Specs▲
| Total weight | approx. 1.8 kg (depending on spring set) |
|---|---|
| Handle unit / camera platform | approx. 1170 g |
| Spring support | approx. 305–390 g (depending on spring strength) |
| Belt | approx. 387 g |
| Holster | approx. 69 g |
| Dimensions handle unit | approx. 265 × 180 × 80 mm (folded) |
| Length spring support | approx. 420 – 750 mm |
| Dimensions holster | approx. 165 × 90 × 30 mm |
| Belt circumference | max. approx. 135 cm (total length approx. 145 cm) |
| Belt height | approx. 11 – 13 cm |
Questions & Answers▲
How much does the DVTEC MultiRig Stabilizer Pro weigh in total?
The total weight is approximately 1.8 kg, though this can vary slightly depending on which spring set is used. The handle unit and camera platform alone weigh around 1,170 g, while the spring support adds approximately 305 to 390 g depending on spring strength.
What is the adjustable length range of the spring support?
The spring support can be adjusted between approximately 420 mm and 750 mm in length, allowing it to be adapted to different operator heights and shooting positions.
How does the shoulder rest transfer the camera weight to the body?
The spring support connects the shoulder unit to the hip belt, redistributing the camera weight from the arms and shoulders down to the hips. This central load distribution reduces fatigue significantly during longer shoots.
What is included in the scope of delivery?
The package includes the MultiRig shoulder support, the spring support, a hip belt with holster, an accessory adapter with hot shoe and 3/8-inch connection, and an accessory plate for mounting additional devices.
What is the maximum belt circumference supported by the hip belt?
The hip belt accommodates a maximum circumference of approximately 135 cm, with a total belt length of approximately 145 cm.
Can accessories like wireless transmitters or batteries be mounted directly on the rig?
Yes, the included accessory plate allows additional components such as wireless transmitters or batteries to be attached directly to the rig. The accessory adapter also provides a hot shoe and a 3/8-inch connection for further mounting options.
Is the shoulder pad repositionable, and can it serve as an additional handle?
Yes, the shoulder pad can be flexibly repositioned and used as an additional handle. This enables a floating mode that is particularly useful for achieving smooth, steady shots.
Does the spring support stabilize accessories in addition to the camera?
Yes, the spring support is designed to stabilize not only the camera itself but also mounted accessories such as on-camera lights, external batteries, or wireless components.
What are the folded dimensions of the handle unit?
When folded, the handle unit measures approximately 265 × 180 × 80 mm, making it relatively compact for transport and storage.
How heavy is the holster on its own?
The holster weighs approximately 69 g and measures around 165 × 90 × 30 mm. It is included with the hip belt as part of the standard delivery.
Is the system suitable for extended shooting sessions?
The ergonomic design with hip-based load distribution and spring compensation is specifically intended to reduce physical strain during longer shoots, making it well suited for extended camera operation.
What connection standards does the accessory adapter support?
The included accessory adapter supports both a standard hot shoe connection and a 3/8-inch thread, covering the most common mounting standards used in professional camera accessories.
