Varizoom VZQUICKJIB2KIT-100 camera crane+remotehead+tripod+dolly
Camera jib kit including dolly, tripod and remotehead up to 30 lbs
Artikelnummer: 10127 | Hersteller-Nummer: VZQUICKJIB2KIT-100 | EAN: 877038000056
VariZoom QUICKJIB2KIT-100

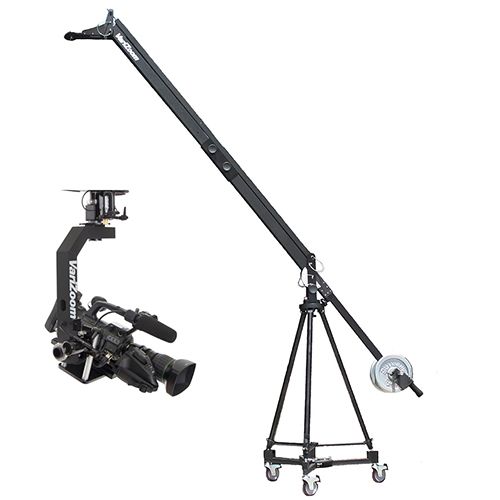

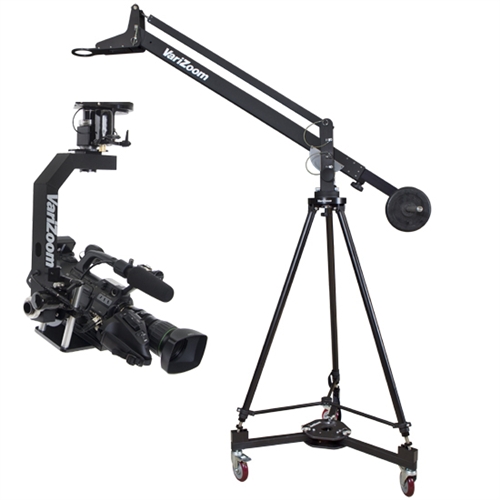

Camera crane - here in a set with dolly, tripod, extension and MC100 remote head.- Consisting of Quickjib camera crane, DCR100 dolly, QuickJibExtension extension, TCR100 tripod and MC100 pan/tilt head.
- VZQUICKJIB2KIT-100 CAMERA CRANE with VZMC100 remote head
The QuickJib from VariZoom represents the perfect balance of quality and economy in a well thought-out design. This is the answer for those who love all of the SnapCrane's options but aren't willing to spend that much money. The Quick Jib gives you many of the features of the safety crane at an affordable price. With the Quick Jib you get an economical yet secure captive clamping system for extending the boom, along with lanyard-attached, rustproof aircraft pins for quick assembly. The QuickJib is a professional, tool-free jib arm that can be installed quickly and safely. The QuickJib, like all of our products, was developed for years of trouble-free and reliable operation in the field. With great attention to detail, we have created a tool that generations will treat with care. - VZMC100 Remotehead - More crane operators choose VariZoom heads to complement their cranes/booms than any other remote head on the market. Users of the QuickJib, SnapCrane and other jibs choose the MC100. The reason for this is that VariZoom's MC100 and MC50 have a tried and true history worldwide. VariZoom heads are reliable and we can service them years after purchase if they ever need repairs because they are manufactured here in our factory in Austin, Texas. Due to its robust and reliable design, the MC100 is the first choice for rental apartments around the world. Buy with confidence from VariZoom as we take care of our customers.
- Jib Arm - The QuickJib selectively uses industrial powder coating and anodizing for durable cosmetics, with stainless steel fasteners. The sleek QuickJib outperforms the competition by featuring less drag using a four-arm support system (never used in high wind conditions) as cantilever arms. The QuickJib mounts on any 100mm tripod, although for safety reasons we only recommend non-telescoping legs.

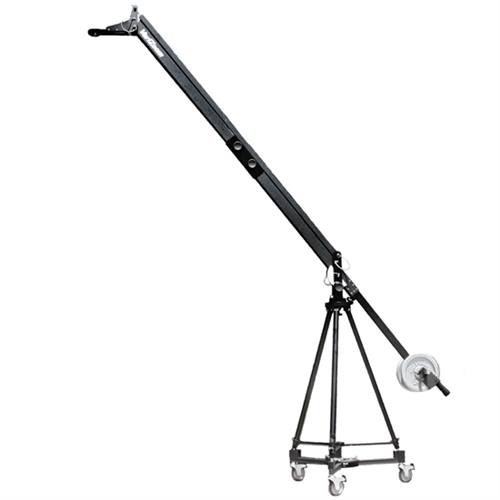

- In addition, our Quick Extension Kit can be assembled in minutes without any tools, unlike more complicated systems that require multiple tools and bolts to attach their extensions. The extension kit fits the standard QuickJib with our Captive Clamp Joint system, which uses two ergonomic, high-torque hand knobs to compress the captive clamps, making the connection rock-solid.
- Brake System - The VariZoom braking system uses a heavy-duty plate that is firmly connected to the panning area. The brake compression system is integrated into the left stator of the pan/tilt base and is designed to produce significant, adjustable resistance but has enough tolerance to slide under extreme force that could otherwise overturn a parking brake boom system.
- Locking Pins - High quality and strength stainless aircraft bolts are used at the pivot points, which are secured by a lanyard to prevent them from being lost.
- Tilt Mechanisms - Camera platform and tilt base connect the boom arm with stainless aircraft pins inserted through sealed radial ball bearings on the tilt base and heavy duty plain bearings on the camera platform, resulting in quiet, smooth movement. The camera platform also features a built-in spirit level for quick reference and adjustment.
- Telescoping Counterweight Section - telescopic weight arm with up to 3 feet for tremendous flexibility. Extend the arm to reduce the weight needed, shorten it to work in tighter spaces, or simply adjust it to fine-tune the counterweight.
- DCR100 Dolly - Our heavy-duty dolly features a generous spread and positive leg locking system that securely holds our TCR100 crane tripod.
- TCR100 Crane Tripod - Our purpose-built crane tripod is the only tripod we recommend for use with any crane, regardless of brand. We recommend never using a telescoping or collapsible tripod under a crane, no matter how small. When carrying an expensive camera on a boom elevated above other valuable equipment or people, it is simply a no-brainer to eliminate all risks and use a single section tripod instead of a telescopic type.
- TheTCR100 crane tripod is manufactured and manufactured in-house and is specifically designed for use with the DCR100 dolly. Safety and strength are top priorities: The TCR100 uses a solidly machined (not cast) base plate and fittings for strength and precision, specialty tubing and oversized leveling feet for an ultra-stable design that will never falter or fail when used properly with the DCR100 dolly.
- VariZoom Jibs are professional tools with quick setup, long-term reliability and outstanding performance. Look closely to see the finer details of our thoughtful design, including tool-free assembly and rustproof quick-release pins that are secured by a lanyard so they will never be lost.
- New: The QuickJib comes with the new lightweight, thickly padded Soft Case from VariZoom. This sturdy case can also be purchased separately.
Real product can look different to picture
techn. Specs▲
Technical Specifications
| Weight | 120 lbs |
| Dimensions | 60 × 13 × 26 in |
| UPC | 877038004962 |
| Tripod to Camera Reach | 5 ft standard, 9.5 ft with optional extension |
| Max Camera Height (with MC100 overslung) | 9.5 ft standard, 13 ft with optional extension |
| Vertical Movement (ground to camera platform at max elevation) | 7.5 ft standard, 11 ft with optional extension |
| Max Weight Capacity | 50 lbs standard, 30 lbs with optional extension |
| Head Mount Type | 100 mm standard, optional adapters for 75 mm, Mitchell or Flat |
| Jib-to-Tripod Mount Type | 100 mm flat (no leveling ball), optional Mitchell adapter available |
| Telescoping Tail Range | Up to 3 ft |
| Jib Weight | 27 lbs standard, 47 lbs extended |
| Minimum Storage Length | 56 inches |
| Returns | 20% restocking fee |
| Warranty | 2 years |
documents, files, links▲
varizoom quickjib manual english.pdfproduct safety (GPSR)▲
