VariZoom AVIATOR MX Camera Stabilization System
Vest, Spring Arm and Sled for Cameras up to 6.8 kg
Special price: € 2618.00
incl. VAT
( instead of 4122.10 )
2.200.00 € w/o vat
in stock
Shipping costNo returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 8947 | manufacturer number: VZAVIATOR MX | EAN/UPC: 877038003453

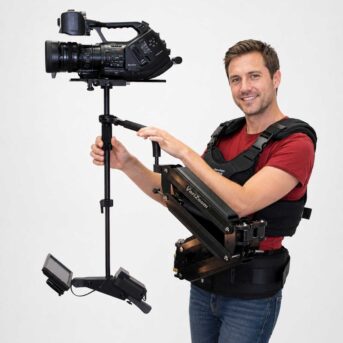

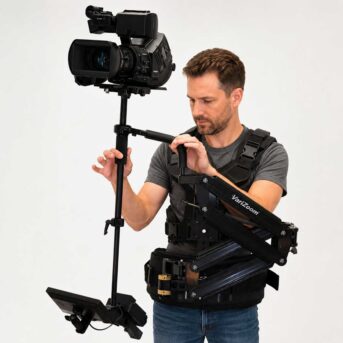

The VariZoom AVIATOR MX is a camera stabilization system for mobile video and film recording. The system consists of a vest, spring arm, sled and accessories and is designed for cameras in the weight range of approximately 0.9 to 6.8 kg.

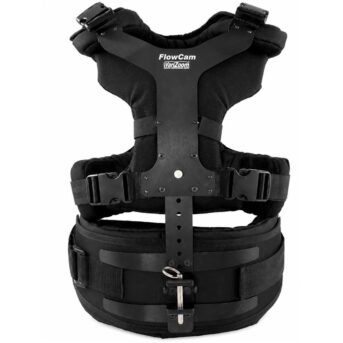

The design is based on VariZoom's experience with floating systems and is used for stabilized camera operation during moving shots. The carrying vest and spring arm distribute the camera weight across the body, allowing the camera to be guided with greater control.
The scope of delivery includes a low-mode cage and a rod for mounting the camera close to the ground. This allows the system to be used for low camera positions as well.
The VariZoom AVIATOR MX is supplied including a 7 inch SD monitor. An HD monitor with HD-SDI or HDMI is available on request for an additional charge.
- AVIATOR-MX-VL: Supplied with Sony V-Mount battery plates, without batteries and charger
- AVIATOR-MX-AB: Supplied with Anton-Bauer battery plates, without batteries and charger
Real product can look different to picture
techn. Specs▲
| General Information | |
| Product Type | Camera stabilization system with vest, spring arm and sled |
|---|---|
| Suitable Camera Weight Range | approx. 0.9 to 6.8 kg |
| System Weight | approx. 7.9 kg |
| Monitor | 7 inch / approx. 17.8 cm, 16:9 |
| Monitor Battery Life | approx. 3 to 4 hours with standard battery |
| Component Weights | |
| Spring Arm | approx. 2.8 kg |
| Vest | approx. 2.3 kg |
| Sled | approx. 2.8 kg, including monitor and battery |
| Extension Grip | approx. 0.14 kg |
| Weight Plate | approx. 2.3 kg |
| Range of Motion and Dimensions | |
| Vertical Arm Range | approx. 96.5 cm |
| Arm Dimensions | approx. 91.4 x 6.7 x 5.7 cm |
| Sled Dimensions | approx. 57.2 x 36.8 x 11.4 cm |

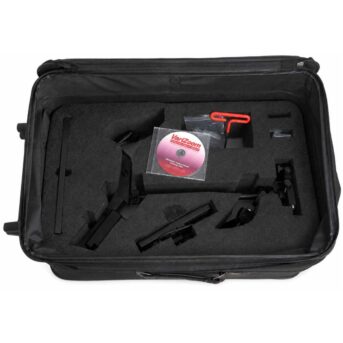

| Carrying Case Dimensions | approx. 73.7 x 43.2 x 40.6 cm (H/W/D) |
| Packed Weight | approx. 17.4 kg |
| Material and Scope of Delivery | |
| Material | Predominantly aluminum with stainless steel components |
| Components | Sled, monitor, spring arm, vest, Extension Grip, weight plate, Balancing Post, tool set and manual |
| Low-Mode Accessory | Low-mode cage and rod for mounting the camera close to the ground included |
Questions & Answers▲
What types of cameras is the VariZoom AVIATOR MX designed for?
The system is designed for cameras in the weight range of approximately 0.9 to 6.8 kg. This covers a wide range of professional video and film cameras commonly used for mobile shooting.
What components are included in the scope of delivery?
The AVIATOR MX comes with a vest, spring arm, sled, a low-mode cage, a rod for ground-level shooting, and a 7-inch SD monitor. Batteries and a charger are not included.
What is the total system weight?
The complete system weighs approximately 7.9 kg. The spring arm accounts for approximately 2.8 kg and the vest for approximately 2.3 kg of that total.
Which battery plate versions are available?
The system is available in two versions: AVIATOR-MX-VL, which comes with Sony V-Mount battery plates, and AVIATOR-MX-AB, which comes with Anton-Bauer battery plates. Neither version includes batteries or a charger.
What monitor is included with the system?
A 7-inch SD monitor with a 16:9 aspect ratio is included. The expected battery life of the monitor is approximately 3 to 4 hours when used with a standard battery.
Is an HD monitor available for the AVIATOR MX?
Yes, an HD monitor with HD-SDI or HDMI connectivity is available as an optional upgrade for an additional charge. It is not included in the standard scope of delivery.
Can the system be used for low camera positions?
Yes, the included low-mode cage and rod allow the camera to be mounted close to the ground, making low-angle shots possible without requiring a separate system or additional accessories.
How does the vest and spring arm combination help the operator?
The vest distributes the camera weight across the operator's body, while the spring arm absorbs movements and vibrations. Together they allow the camera to be guided with greater control and reduced physical strain during moving shots.
Is the AVIATOR MX suitable for run-and-gun or documentary-style filming?
The system is designed for stabilized camera operation during moving shots, which makes it well suited for applications where continuous mobility and smooth footage are required, such as documentary or event productions.
Do I need to purchase batteries separately?
Yes, both available versions are supplied without batteries and without a charger. You will need to source compatible batteries separately depending on which battery plate version you choose.
