LINSN RV801 reception card for LED walls series 8
Replacement & repair for LINSN LED systems
article number: 12035 | manufacturer number: RV801D
The LINSN RV801, also referred to as RV801D, is a receiving card for LINSN LED walls of the Series 8. It receives data from a compatible LINSN Sending Card and passes the appropriate control signals to the LED modules via HUB cards. The card is suitable for repairs, replacements, expansions, and service work on existing LINSN LED systems.
The RV801 works together with LINSN Sending Cards such as TS801, DS801, TS802, and DS802. This makes it particularly interesting for older LED walls where existing receiving cards need to be replaced or supplemented. Depending on the LED wall, firmware, RCG configuration, and HUB assignment, actual compatibility may vary.
The receiving card provides 16 groups of RGB signals. These signals are distributed to the LED modules via compatible HUB cards. The maximum supported height of one RV801 is up to 256 pixels according to the manufacturer's specifications. The maximum usable width depends on parameters such as refresh rate, greyscale levels, scan clock, and driver ICs of the LED modules.
As the RV801 series is no longer listed as a current new product, various variants or refurbished cards are used depending on availability. These may include RV801A, RV801D, RV801F, or compatible versions. Before replacement, it should be verified that the RCG file, firmware, HUB card, and LED module assignment are compatible with the existing LED wall.
Operating a LINSN receiving card typically requires a matching RCG configuration. This file contains important parameters for the LED modules and signal assignment. Without a suitable RCG file or without existing system data, a direct replacement is not always possible.
- Replacement card for existing LINSN LED walls
- Service and repair of Series 8 LED systems
- Receiving card for TS801, DS801, TS802, and DS802 Sending Cards
- Control of LED modules via compatible HUB cards
- Fixed installations, rental LED walls, and older LED systems
- Receiving card for LINSN LED Control Systems Series 8
- Compatible with TS801, DS801, TS802, and DS802 Sending Cards
- 16 groups RGB signal
- maximum up to 256 pixels height per receiving card
- maximum width dependent on refresh rate, greyscale levels, and scan clock
- Signal distribution to LED modules via compatible HUB cards
- Operating voltage 5–16 V DC
- suitable for replacement, repair, and service of existing LED walls
- various versions possible, e.g. RV801A, RV801D, or RV801F
- cards may also be refurbished depending on availability

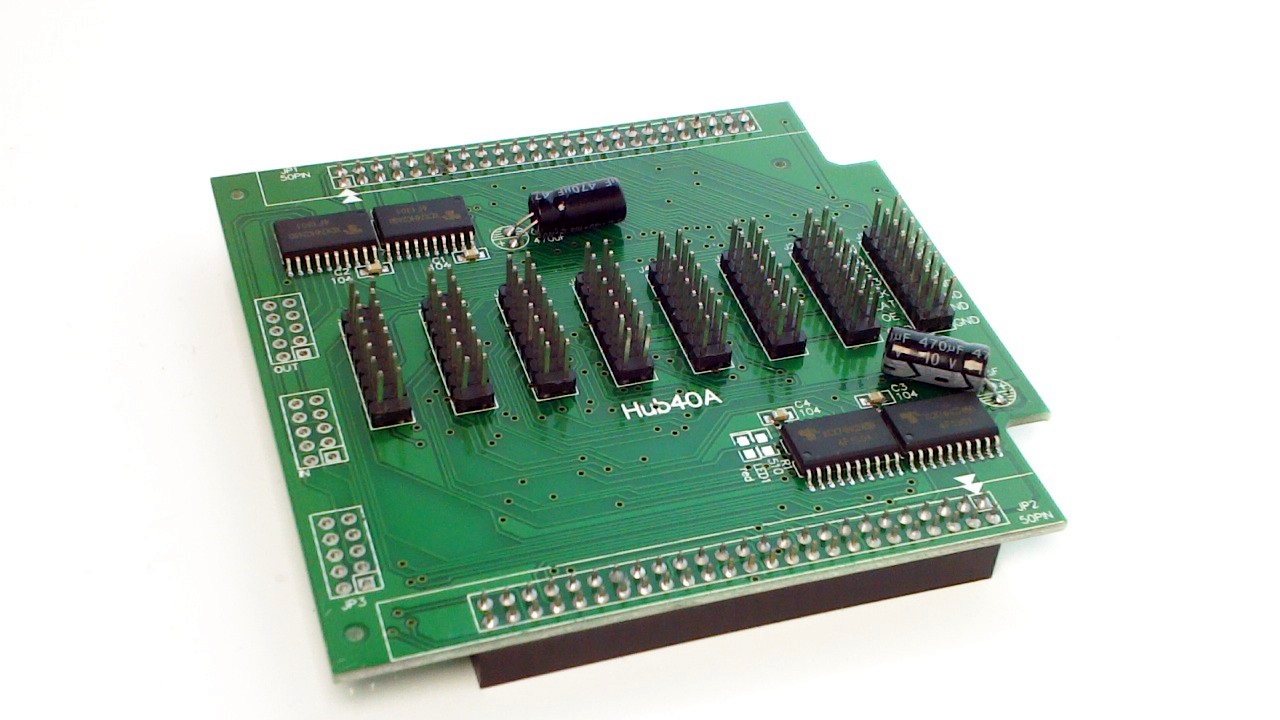

Real product can look different to picture
techn. Specs▲
| Device | Model | LINSN RV801 / RV801D |
|---|---|---|
| Product Type | LED Receiving Card | |
| System | LINSN LED Control System, Series 8 | |
| Variants | depending on stock, RV801A, RV801D, RV801F or compatible version possible | |
| Compatibility | Sending Cards | TS801, DS801, TS802, DS802 |
| LED System | compatible LINSN LED walls and LED modules | |
| HUB Cards | appropriate HUB card required depending on LED module and pin assignment | |
| Configuration | matching RCG file and correct firmware required | |
| Signal Processing | RGB Signal Groups | 16 groups RGB signal |
| Maximum Height | up to 256 pixels per receiving card | |
| Maximum Width | depending on refresh rate, greyscale levels and scan clock of the LED panel driver | |
| Signal Distribution | output to LED modules via suitable HUB card | |
| Functions | Reception | Receives data from the LINSN Sending Card |
| Output | Forwarding of LED control signals to the LED modules | |
| Application | for full-color LED displays and existing LINSN Series 8 systems | |
| Power | Operating Voltage | 5 V DC |
| Current Draw | up to 2 A | |
| Supply | via LED system / cabinet power supply | |
| Installation | Form Factor | Receiving card for installation in the LED cabinet |
| Connection | Connection to sending card via network cable, connection to LED modules via HUB card / ribbon cable | |
| Service Note | Product Status | older series; new stock not always available depending on market availability |
| Condition | depending on stock, new, used or refurbished possible | |
| Check Before Replacement | verify RCG file, firmware, HUB type, module assignment and existing card variant | |
| Note | Compatibility | test in advance when mixing with other cards or firmware versions |
Questions & Answers▲
What is the LINSN RV801 receiving card used for?
The RV801 is a receiving card designed for LINSN LED walls of the Series 8. It receives data from a compatible LINSN sending card and passes the appropriate control signals to the LED modules via HUB cards. It is primarily used for repairs, replacements, expansions, and service work on existing LINSN LED systems.
Which LINSN sending cards are compatible with the RV801?
The RV801 is compatible with LINSN Series 8 sending cards, including the TS801, DS801, TS802, and DS802. This makes it suitable for maintaining or repairing older LED walls that use these control systems. Actual compatibility may vary depending on firmware, RCG configuration, and HUB assignment.
How many RGB signal groups does the RV801 provide?
The RV801 provides 16 groups of RGB signals. These signals are distributed to the LED modules via compatible HUB cards connected to the receiving card.
What is the maximum pixel height supported by the RV801?
According to the manufacturer's specifications, the RV801 supports a maximum height of up to 256 pixels per card. The maximum usable width depends on parameters such as refresh rate, greyscale levels, scan clock, and the driver ICs used in the LED modules.
What supply voltage does the RV801 require?
The RV801 operates with a supply voltage of 5 to 16 volts DC, making it compatible with a range of power supplies commonly used in LED wall systems.
Is the RV801 still available as a current new product?
The RV801 series is no longer listed as a current new product by LINSN. Depending on availability, various variants such as RV801A, RV801D, or RV801F, as well as refurbished cards, may be offered as replacements. The RV801D is also commonly referred to as a direct equivalent to the RV801.
Do I need a specific RCG configuration file to use the RV801?
Yes, operating the RV801 typically requires a matching RCG configuration file. This file contains important parameters for the LED modules and signal assignment. Without a suitable RCG file or existing system data, a direct replacement may not always be possible without additional configuration steps.
What should I check before replacing a receiving card with the RV801?
Before replacing an existing receiving card, it is important to verify that the RCG file, firmware version, HUB card type, and LED module assignment are all compatible with the existing LED wall setup. Skipping these checks can result in incorrect signal output or a non-functional display.
Can the RV801 be used to expand an existing LED wall system?
Yes, in addition to repair and replacement purposes, the RV801 can also be used to expand existing LINSN Series 8 LED systems, provided the sending card supports the additional receiving cards and the configuration is adjusted accordingly.
How are the LED modules connected to the RV801?
The LED modules are not connected directly to the RV801. Instead, the receiving card distributes its 16 RGB signal groups to compatible HUB cards, which then interface with the individual LED modules. The choice of HUB card must match the LED module type and configuration.
