Lilliput UQ31 – 31.5" 8K Broadcast Monitor 12G-SDI
10-bit IPS, HDR, multi-viewer for studio & post-production
Special price: € 3398.64
incl. VAT
( instead of 4044.81 )
2.856.00 € w/o vat
in stock
Shipping costarticle number: 12721 | manufacturer number: UQ31 | EAN/UPC: 6950821604564

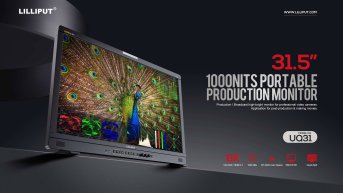

The Lilliput UQ31 is a 31.5"10bit UHD production monitor with support for 8K signals via 12G-SDI, HDMI 2.1 and SFP. Developed for broadcast, studio and post-production, it impresses with its exceptional image quality, precise color representation and extensive connection options.
The high-quality IPS panel with a resolution of 3840 × 2160 delivers razor-sharp images, a brightness of 1000 cd/m², a contrast of 1000:1 and a wide 178° Viewing angle. The monitor supports HDR (ST2084 300/1000/10000 and HLG) as well as 3D LUT (.cube) and enables color calibration according to Rec.709, DCI-P3, NTSC and BT.2020. Supported log formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User.

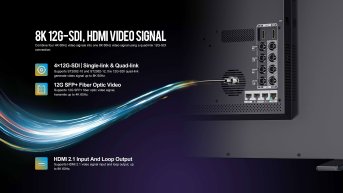

The UQ31-DM offers 4× 12G-SDI inputs (Quad/Dual/Single-Link), 1× HDMI 2.1 and 1× 12G SFP+ for fiber optic operation. Formats up to 8K 60 Hz are also supported (2×2, 3×3, 4×4) enables simultaneous monitoring of multiple signals.
For equipment include Waveform, Vectorscope, Peaking, Zebra, False Color and Audio-Meter. Two integrated speakers and a 3.5 mm headphone output offer professional audio control. The monitor supports 16-channel audio via SDI (48 kHz / 24-bit) and 8-channel audio via HDMI.
The sturdy metal housing ensures optimal heat dissipation and reliability 24/7 studio use. With 15–32 V DC input voltage and a consumption of ≤ 94 W, the monitor is energy efficient and ideal for rack, wall or table mounting.
- Panel: 31.5″ 10-bit IPS
- Resolution: 3840 × 2160 (UHD)
- Aspect ratio: 16:9

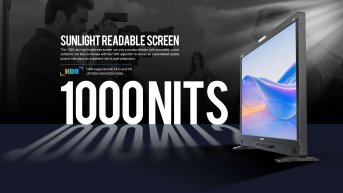

- Brightness: 1000 cd/m²
- Contrast: 1000:1
- Viewing angle: 178° (H/V)
- HDR: ST2084 300/1000/10000 / HLG
- Inputs: 4× 12G-SDI, 1× HDMI 2.1, 1× SFP+
- Outputs: 4× 12G-SDI loop, 1× HDMI loop
- Audio: 16ch SDI, 8ch HDMI, 3.5 mm jack, 2 speakers

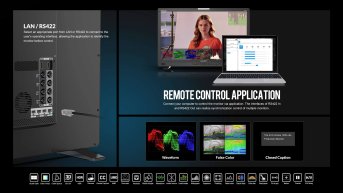

- Remote control: RS422 In/Out, GPI 1, LAN 1
- Voltage: DC 15-32 V
- Power: ≤ 94 W (at 24 V)
- Operating temperature: 0 °C – 50 °C
- Storage temperature: 20 °C – 60 °C

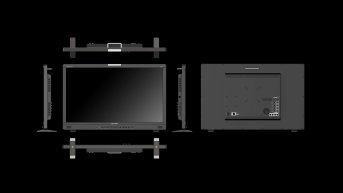

- Dimensions: 747 × 475.1 × 55 mm
- Weight: 12.5 kg
With the Lilliput UQ31 you get an 8K-capable broadcast monitor with outstanding color depth, HDR display and professional signal processing. Ideal for studio, direction and post-production – precise, robust and reliable.
Real product can look different to picture
techn. Specs▲
Technical data
| Functions | Monitoring and analysis functions | 3D LUTs, Audio Vector, Check Field (Red, Green, Blue), Color Bar, Color Gamut, Color Temperature Adjustment, Exposure, False Color, Freeze, Gamma, H/V Delay, HDR, Histogram, Level Meter, Marker, Peaking Focus Assist, Pixel Zoom, Pixel to Pixel, Remote Control, Time Code, Vector Scope, Waveform |
|---|---|---|
| Inputs | SDI | 4 × 12G-SDI (up to 8K/60P), 4 × 3G-SDI |
| SFP+ | 1 × 12G-SFP+ | |
| HDMI | 1 × HDMI 2.1 (up to 8K/60P) | |
| USB | 1 × USB (for 3D LUTs) | |
| RS422 | 1 × RS422 | |
| GPI / Tally | 1 × GPI port (tally) | |
| Network | 1 × Ethernet (RJ-45) | |
| Outputs | SDI | 4 × 12G-SDI (up to 8K/60P), 4 × 3G-SDI |
| HDMI | 1 × HDMI 2.1 (up to 8K/60P) | |
| RS422 | 1 × RS422 | |
| Audio | 1 × 3.5mm stereo headphone jack | |
| General | Dimensions | 747 × 475.1 × 55 mm |
| Weight | approx. 12.5 kg | |
| Power supply | 15–32 V DC or 14.8 V per Battery | |
| Max. Power consumption | approx. 94 watts | |
| Scope of delivery | Standard accessories | Power supply, feet for table installation, USB stick for 3D LUTs, V-mount battery plate |
| Optional accessories | Extensions | Fiber optic module (SFP) |
Questions & Answers▲
What resolution and screen size does the monitor have?
The monitor has a 31.5-inch IPS panel with a UHD resolution of 3840 × 2160 pixels in 16:9 format.
Which signal inputs are available?
The monitor offers 4× 12G-SDI inputs (Quad/Dual/Single-Link), 1× HDMI 2.1 and 1× 12G SFP+ for fiber optic operation. Loop outputs are also available.
Does the monitor support 8K signals?
Yes, the monitor supports 8K signals via 12G-SDI, HDMI 2.1 and SFP. Supported formats range up to 8K 60 Hz.
Which HDR formats are supported?
The monitor supports HDR formats ST2084 300/1000/10000 and HLG for professional HDR monitoring.
Which color spaces can be calibrated?

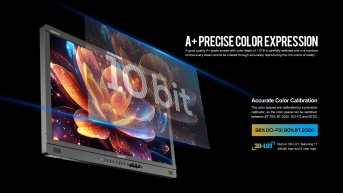

The monitor enables color calibration according to Rec.709, DCI-P3, NTSC and BT.2020. It also supports 3D LUT (.cube) for precise color reproduction.
Which log formats are supported?
Supported log formats are SLog2, SLog3, CLog, NLog, ArriLog, JLog and custom user formats.
What monitoring tools are available?
The equipment includes waveform, vectorscope, peaking, zebra, false color and audio meter for professional signal monitoring.
Can the monitor display multiple signals at the same time?

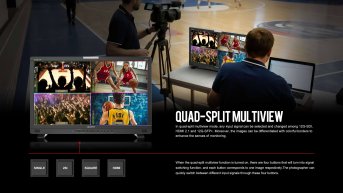

Yes, the multi-viewer display enables simultaneous monitoring of several signals in a 2×2, 3×3 or 4×4 arrangement.
What audio functions does the monitor offer?
The monitor has two integrated speakers and a 3.5 mm headphone output. It supports 16-channel audio over SDI (48 kHz / 24-bit) and 8-channel audio over HDMI.
What is the brightness and contrast?
The IPS panel offers a brightness of 1000 cd/m², a contrast of 1000:1 and wide 178° viewing angles horizontally and vertically.
What power supply does the monitor need?
The monitor works with DC 15-32 V input voltage with a maximum consumption of 94 W, making it energy efficient for 24/7 studio use.
What mounting options is the monitor suitable for?
The sturdy metal housing enables flexible integration through rack, wall or table mounting and ensures optimal heat dissipation during continuous operation.
