Lilliput UQ19 – 18.4-inch 8K production monitor
1000 nits broadcast monitor with 3D LUT and 12G-SDI
Artikelnummer: 12743 | Hersteller-Nummer: UQ19 | EAN:
The LILLIPUT UQ19 is a professional 18.4-inch production monitor for demanding Film, broadcast and live productions. With a brightness of 1000 nits, 8K signal support and precise color representation, the monitor is ideal for monitoring, directing and post-production.
Brilliant display and HDR support
The high-resolution display with 3840 × 2160 pixels and a contrast ratio of 1000:1 delivers precise and detailed image reproduction. Thanks to 1000 cd/m² brightness, a reliable assessment is possible even in direct sunlight.
- HDR support: HLG and PQ (ST2084)
- High image stability and Color accuracy
The monitor offers a 10-bit color depth (1.07 billion colors) and supports several professional Color spaces. Precise calibration enables reliable color control in critical production environments.
- Color spaces: BT.709, BT.2020, DCI-P3, NTSC
- 99% DCI-P3 color space coverage
- Integrated 3D LUT system with 17 presets + 6 user LUTs
- Support for log profiles (SLog, CLog, NLog, ArriLog, JLog)
The UQ19 supports the latest signal standards for professional video workflows:
- 4 × 12G-SDI (single-link / quad-link up to 8K 60Hz)
- HDMI 2.1 input and output (up to 8K 60Hz)
- SFP+ fiber optic for flexible signal transmission
- Quad split multiview with simultaneous display of multiple sources
The monitor can be controlled remotely via LAN or RS422 and integrated into existing production environments.
- Waveform, false color and others Analysis tools
- Control of multiple monitors possible
- Configurable function keys (F1-F4)
- DC input: 15-24 V
- Maximum power consumption: 550 W
Real product can look different to picture
techn. Specs▲
| Panel | 18.4"10bit | |
|---|---|---|
| Physical Resolution | 3840×2160 | |
| Aspect Ratio | 16:9 | |
| Brightness | 1000cd/m² | |
| Contrast | 1000:1 | |
| Displays Angle | 170°/ 170°(H/V) | |
| HDR | ST2084 300/1000/10000HLG | |
| Supported log formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Users... | |
| Lookup Table (LUT) Support | 3D LUT (Cube Format) | |
| Calibration | Calibrate the color space to Rec 709, DCI-P3, NTSC, BT2020 | |
| SDI | 4×12G (Supported 8K-SDI formats Quad Link) | |
| SFP | 1×12G SFP+ (fiber module for optional) | |
| HDMI | 1×HDMI 2.1 (Supports 8K HDMI Formats) | |
| SDI | 4×12G (Supported 8K-SDI formats Quad Link) | |
| HDMI | 1×HDMI 2.1 (Supports 8K HDMI Formats) | |
| SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60... | |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60... | |
| HDMI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60... | |
| SDI | 16ch 48KHz 24-bit | |
| HDMI | 8-channel 24-bit | |
| ear Socket | 3.5 mm | |
| Built-in Speakers | 2 | |
| RS422 | On/Off | |
| 1 | ||
| LAN | 1 | |
| Input Voltage | DC 15-24V | |
| Power consumption | ≤56W (15V) | |
| Operating Temperature | 0℃~50℃ | |
| Storage Temperature | -20℃~60℃ | |
| Dimensions (LWD) | 409.7mm×308.3mm×50.5mm | |
| Weight | 4.7 kg |
Questions & Answers▲
What screen size does the Lilliput UQ19 have?
The monitor has an 18.4-inch display with a native resolution of 3840 × 2160 pixels.
What maximum signal resolution is supported?
The monitor supports input signals up to 8K at 60 Hz, both via 12G-SDI in quad-link operation and via HDMI 2.1.
How bright is the display and is it suitable for outdoor use?
The display achieves a brightness of 1000 cd/m², which enables reliable image assessment even in direct sunlight. For mobile use, a glare protection is also included in the scope of delivery of the CC variant.
Which HDR formats are supported?
The monitor supports the HDR standards HLG and PQ according to ST2084, which are used in modern broadcast and Film productions are widely used.
Which color spaces are available?
The color spaces BT.709, BT.2020, DCI-P3 and NTSC are supported. The DCI-P3 color space coverage is 99 percent, which allows precise color control in critical production environments.
What color depth does the monitor offer?
The monitor works with a color depth of 10 bits and is therefore in the Capable of displaying over 1.07 billion colors.
How does the 3D LUT system work?
The integrated 3D LUT system includes 17 preinstalled presets as well as 6 freely assignable ones User LUT slots into which your own calibration data can be loaded. This allows production-specific color adjustments to be stored permanently.
Which log profiles are supported for camera monitoring?
The monitor supports common log profiles from various manufacturers, including SLog, CLog, NLog, ArriLog and JLog, so that Log footage can be correctly assessed directly.

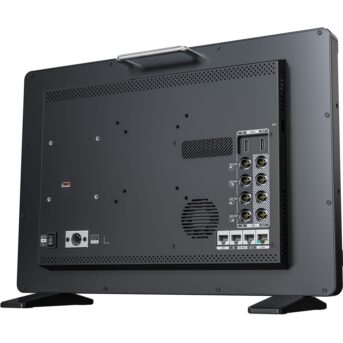

Which video inputs are available?
The monitor offers four 12G-SDI ports that can be used in single-link or quad-link operation, one HDMI 2.1 input and an SFP+ port for signal transmission via fiber optic.
Is there an HDMI output?
Yes, in addition to the HDMI 2.1 input, the monitor also has one HDMI 2.1 output through which the signal can be forwarded.
Can the monitor display several sources at the same time?
Yes, using the quad split multiview function, several signal sources can be shown on the display at the same time, which is particularly important in the directing and Monitoring operation is useful.
Can the monitor be controlled remotely?
The monitor supports remote control via LAN and RS422 and can thus be integrated into existing production and broadcast environments

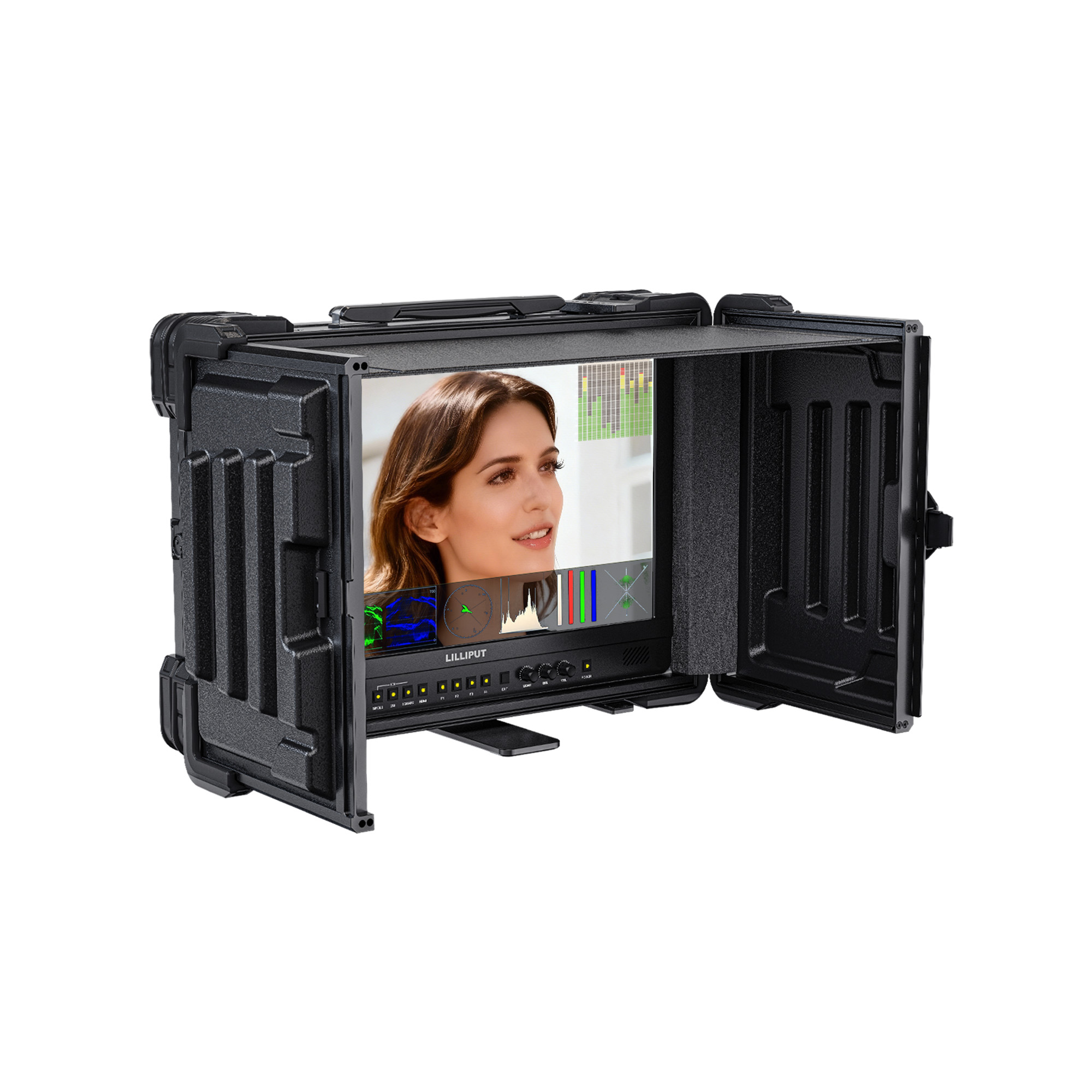

What is meant by the protective housing of the CC variant?
The term CC stands for Custom Case and refers to an included protective housing that protects the monitor for mobile productions and transport. In combination with the glare protection, the CC variant is particularly suitable for outdoor use under changing lighting conditions.
