Lilliput TK1560/T 15.6" Touch Monitor 1000 Nits IP64
Full HD touchscreen for industry and kiosks
Special price: € 399.00
incl. VAT
( instead of 419.00 )
335.29 € w/o vat
in stock
Shipping costarticle number: 12508 | manufacturer number: TK1560/T | EAN/UPC: 6950821602157
The Lilliput TK1560/T is a rugged 15.6 inch touch monitor with Full HD resolution and a high brightness of 1000 Nits. Thanks to the 10-point touchscreen, the monitor is ideally suited for industrial applications, control systems and interactive operator solutions.
The IP64-protected front panel enables use in demanding environments where protection against dust and splashing water is required.
- 15.6 inch Full HD display (1920 × 1080)
- Brightness: 1000 cd/m² (High Brightness)
- Capacitive 10-point touchscreen
- Good readability even in bright environments
- HDMI
- VGA
- AV (Composite)
- Audio (headphone / integrated speakers)
- IP64 front panel (dust- and splash-water protected)
- Robust metal housing
- Automatic brightness adjustment (depending on configuration)

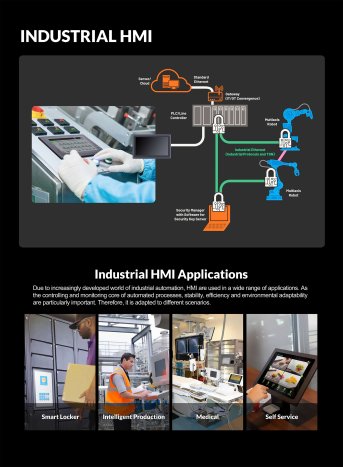

- Industry and machine control
- Kiosk and POS systems
- Building automation
- Interactive operator and display applications
Real product can look different to picture
techn. Specs▲
| Display | 15,6" LCD |
|---|---|
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| Touchscreen | Capacitive, 10-point |
| Viewing Angle | 160° / 160° (H/V) |
| HDMI Video Formats | 2160p 24/25/30 · 1080p 24/25/30/50/60 · 1080i 50/60 · 720p 50/60 |

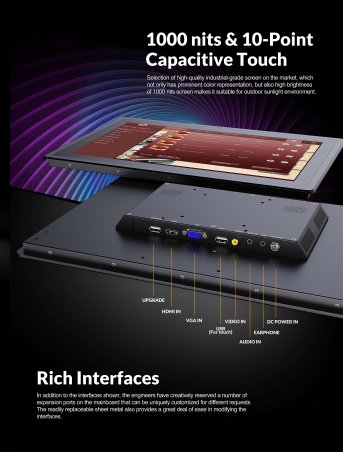

| Connections | 1× HDMI 1.4b · 1× VGA · 1× AV (Composite) |
| Audio | 2× Speakers · HDMI Audio (2-channel) · 3.5 mm jack (2-channel, 48 kHz, 24 bit) |

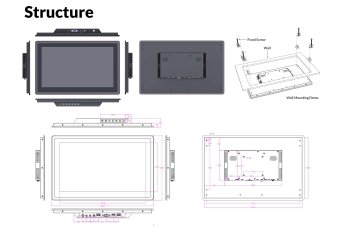

| Dimensions | 408 × 259 × 36,5 mm |
| VESA | 75 × 75 mm / 100 × 100 mm |
| Weight | approx. 2.9 kg |
| Power Supply | DC 12–24 V |
| Power Consumption | ≤ 24.5 W (at 15 V) |
| Protection Class | IP64 (front panel) |
| Operating Temperature | −20 °C to +60 °C |
| Storage Temperature | −30 °C to +70 °C |
Questions & Answers▲
What is the screen size and resolution of the TK1560/T?
The TK1560/T features a 15.6-inch LCD panel with a Full HD resolution of 1920 × 1080 pixels.
How bright is the display, and is it suitable for use in bright environments?
The display has a brightness of 1000 cd/m², which provides good readability even under strong ambient light conditions, making it well suited for industrial floors, kiosks, and outdoor-facing installations.
What type of touchscreen does this monitor use, and how many touch points does it support?
It uses a capacitive touchscreen that supports up to 10 simultaneous touch points, enabling smooth multi-touch interaction for operator interfaces and interactive applications.
What does the IP64 rating mean for this monitor?

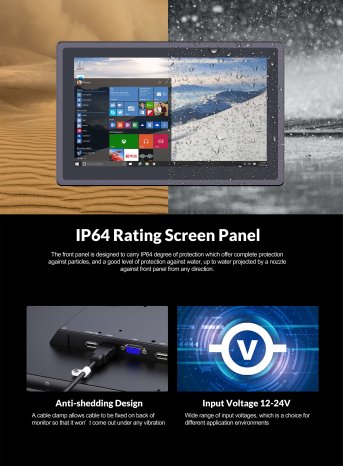

The IP64 rating applies to the front panel and means it is fully protected against dust ingress and resistant to water splashing from any direction. This makes it suitable for demanding environments where exposure to dust and moisture is common.
Which video inputs are available?
The monitor provides one HDMI 1.4b port, one VGA input, and one AV composite input, offering flexibility for connecting a wide range of devices and control computers.
Does the monitor have built-in speakers and audio support?
Yes, two integrated speakers are included. Audio can be received via HDMI (2-channel) or through the 3.5 mm headphone jack, which supports 2-channel audio at 48 kHz and 24 bit.
What power supply does the TK1560/T require?
It operates on a DC input voltage of 12 to 24 V and consumes no more than 24.5 W at 15 V, making it compatible with standard industrial power supplies.
What are the dimensions and weight of this monitor?
The monitor measures 408 × 259 × 36.5 mm and weighs approximately 2.9 kg. The compact and flat profile supports integration into panels, enclosures, and kiosk frames.
Is VESA mounting supported?
Yes, the monitor supports both 75 × 75 mm and 100 × 100 mm VESA mounting patterns, allowing flexible wall or arm mounting in various installation scenarios.
What operating temperature range does the monitor support?
The operating temperature range is −20 °C to +60 °C, and the storage temperature range is −30 °C to +70 °C, making it suitable for use in cold storage facilities, outdoor cabinets, and high-temperature industrial environments.
What video formats are supported over HDMI?
Via HDMI, the monitor supports 2160p at 24, 25, and 30 Hz, 1080p at 24, 25, 30, 50, and 60 Hz, 1080i at 50 and 60 Hz, as well as 720p at 50 and 60 Hz.
For which applications is this monitor particularly well suited?
Typical use cases include industrial machine control, POS and kiosk systems, building automation, and interactive operator terminals where ruggedness, high brightness, and reliable touch input are required.
What is the contrast ratio and viewing angle of the display?
The display offers a contrast ratio of 1000:1 and viewing angles of 160 degrees both horizontally and vertically, ensuring clear image reproduction from wide off-axis positions.
