Lilliput Q23FC-8K 23.8 inch 12G-SDI 8K monitor
8k 12g-SDI 23.8 inch monitor for editing and more with flightcase
Artikelnummer: 12623 | Hersteller-Nummer: Q23-8KFC | EAN:
The Lilliput Q23FC-8K is a state-of-the-art, 8K capable 23.8 inch broadcast monitor for film productions, studios and live broadcasts. With a variety of inputs including 12G-SDI, 12G-SFP+, 3G-SDI, HDMI 2.0 and more, this monitor offers exceptional flexibility for different broadcast setups.

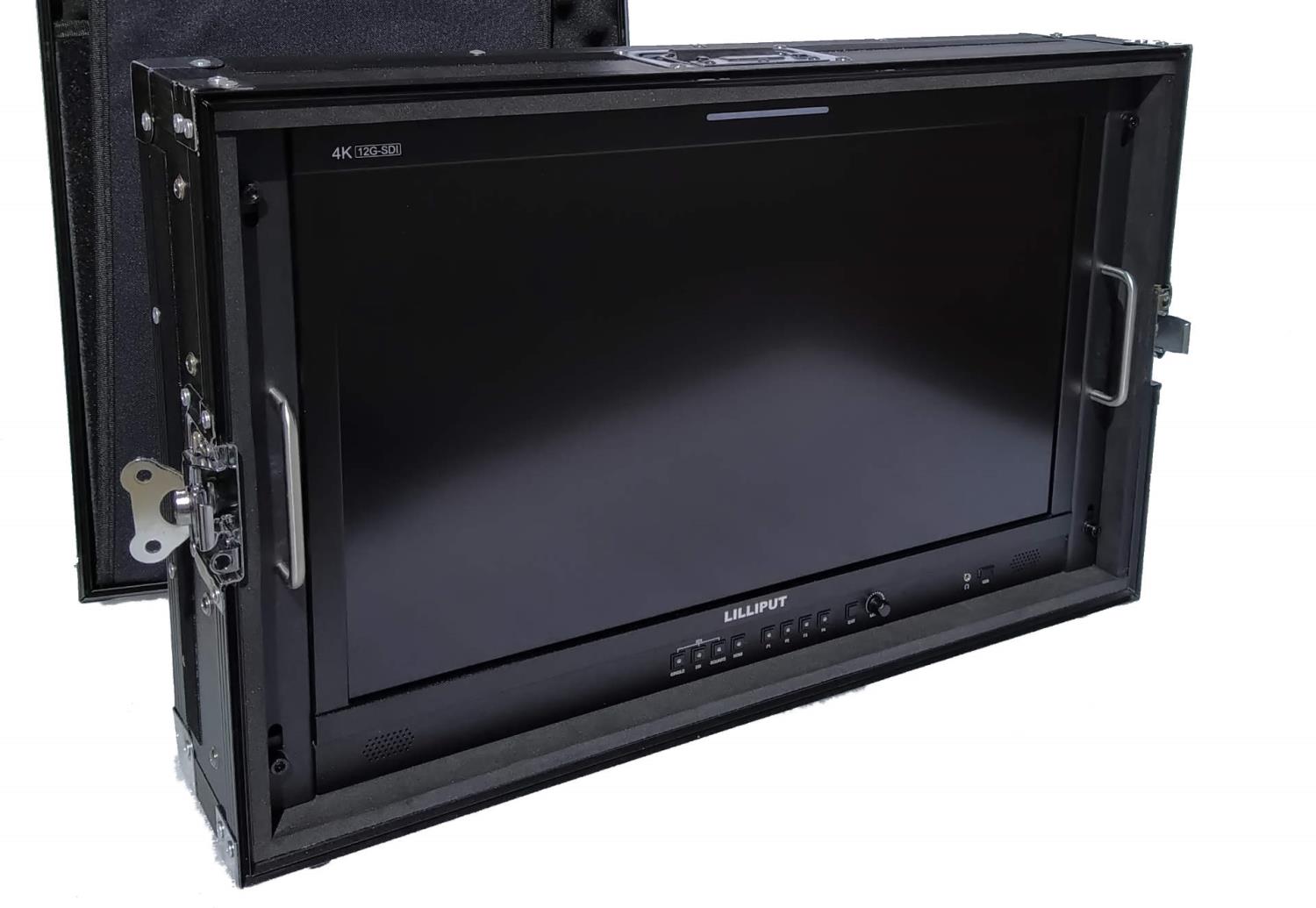

Protected by the flight case, this monitor can also be used for image control on the go. The glare protection helps to assess the image even in strong lighting.
With a native 4K resolution (3840 x 2160) and support for 8K over 12G-SDI Quadlink, the Lilliput Q23-8K delivers impressive image clarity for high-resolution video applications. Thanks to HDR support, this monitor offers improved color and brightness reproduction with support for the ST.2084 300, ST.2084 1000, ST.2084 10000 and HLG HDR formats.
The monitor supports the Rec. 709 color space and 3D LUTs in .cube format, which can be uploaded via a USB stick to enable precise color calibration. The IPS display ensures a stable viewing angle of 176° in both directions and guarantees consistent color and image reproduction from every viewing angle.
With 5 selectable color temperatures (3200K, 5500K, 6500K, 7500K, 9300K), the Lilliput Q23-8K allows complete control over color presentation and can be adapted to different lighting situations.
The Lilliput Q23FC-8K is the ideal choice for broadcast professionals, filmmakers and studio setups that require 8K-capable monitors with high image quality, HDR support and flexible connectivity options. Whether for live broadcasts, film productions or studio editing, this monitor offers the tools necessary to achieve precise and detailed results.
Real product can look different to picture
techn. Specs▲
- 12G-SDI quad-link support for 8K signal transmission
- Native 4K resolution (3840 × 2160)
- HDR support: ST.2084 300 / 1000 / 10000 and HLG
- Rec.709 color space for precise color reproduction
- Support 3D LUTs (.cube format) for advanced color calibration
- IPS panel with 176° viewing angle (horizontal / vertical)
- Maximum brightness: 350 cd/m²
- Contrast ratio: 1000:1
- Adjustable color temperatures: 3200K / 5500K / 6500K / 7500K / 9300K
- Ethernet and RS422 interface for remote control
- VESA mounting: 75 mm and 100 mm
- Four freely assignable function keys
- Integrated stereo speakers
- 12G SFP+ slot for expansion modules (module optional)
- Lissajous diagram for representing stereo audio signals
- Visualization of phase position and stereo balance for audio monitoring
- Video inputs: 12G-SDI, 3G-SDI, 12G-SFP+, HDMI 2.0
- Ethernet and RS422 port for remote control
- USB port for charging 3D LUTs

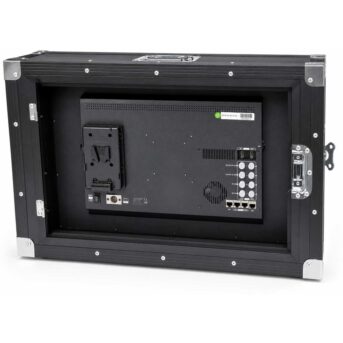

- V-mount battery plate for mobile operation (battery optional)
- AC power adapter for stationary operation
- V-mount battery plate for mobile use (battery not included)
| Display | Panel | 23.8" |
|---|---|---|
| Physical resolution | 3840 × 2160 | |
| Aspect ratio | 16:9 | |
| Brightness | 300 cd/m² | |
| Contrast | 1000:1 | |
| Viewing angle | 178° / 178° (H/V) | |
| HDR | ST2084 300 / 1000 / 10000 / HLG | |
| Supported log formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog / User | |
| LUT support | 3D LUT (.cube format) | |
| Calibration | Calibration to Rec.709 with optional calibration unit | |
| Video Input | SDI | 4 × 12G (8K SDI Quad Link) |
| SFP | 1 × 12G SFP+ (optional fiber module) | |
| HDMI | 1 × HDMI 2.0 | |
| Video Loop Output | SDI | 4 × 12G (8K SDI Quad Link) |
| HDMI | 1 × HDMI 2.0 | |
| Supported Formats | SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60 |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60 | |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60, 720p 50/60 | |
| Audio I/O (48kHz PCM) | SDI | 16 ch 48kHz 24-bit |
| HDMI | 8 ch 24-bit | |
| Ear Jack | 3.5mm | |
| Built-in Speakers | 2 | |
| Remote Control | RS422 | In / Out |
| GPI | 1 | |
| LAN | 1 | |
| Power | Input voltage | DC 12-24V |
| Power consumption | ≤ 60 W (15 V) | |
| Compatible batteries | V-Lock or Anton Bauer Mount | |
| Battery voltage | 14.8 V nominal | |
| Environment | Operating temperature | 0 °C – 50 °C |
| Storage temperature | -20 °C – 60 °C | |
| Other | Dimensions (L × W × H) | 567 × 376.4 × 45.7mm |
| Weight | 7.4 kg |
[[3 02]]
Questions & Answers▲
What resolution does the Lilliput Q23FC-8K monitor support?
The monitor has a native 4K resolution of 3840 x 2160 pixels and supports 8K via 12G-SDI Quadlink connection.
What inputs does this broadcast monitor offer?
The monitor is equipped with 12G-SDI, 12G-SFP+, 3G-SDI and HDMI 2.0 inputs, offering versatile connection options for various broadcast setups.
Does the monitor support HDR formats?
Yes, the monitor supports multiple HDR formats including ST.2084 300, ST.2084 1000, ST.2084 10000 and HLG for improved color and brightness reproduction.
What display technology is used?
The monitor uses an IPS display with a viewing angle stability of 176° in both directions, ensuring consistent color and image reproduction from any viewing angle.
Can I use 3D LUTs?
Yes, the monitor supports 3D LUTs in .cube format, which can be uploaded via a USB stick to enable precise color calibration.
What color temperatures are available?
There are 5 selectable color temperatures available: 3200K, 5500K, 6500K, 7500K and 9300K to adapt to different lighting situations.
What color space does the monitor support?
The monitor supports the Rec. 709 color space, which is used as a standard for HDTV and many broadcast applications.
Is a flight case included?
Yes, the monitor comes complete with a flight case, which provides protection for mobile use and also acts as anti-glare protection in strong lighting.
For which areas of application is this monitor suitable?
The monitor is ideal for broadcast professionals, filmmakers and studio setups who require 8K-capable monitors for live broadcasts, film production or studio editing.
How big is the screen diagonal?
The monitor has a screen diagonal of 23.8 inches, which is a compact and professional size for broadcast applications.
