Lilliput Q10 10.1" on-camera monitor 1500 nits
12G-SDI & HDMI 2.0 for 4K broadcast workflows
article number: 12490 | manufacturer number: Q10 | EAN/UPC: 6950821602508
The LILLIPUT Q10 is a professional 10.1-inch on-camera monitor for broadcast, film and video productions. With 1500 nits brightness, 1920 × 1200 resolution, HDMI 2.0 and 2 × 12G-SDI the monitor is ideal for mobile camera setups, outdoor recordings and professional 4K workflows.
The high brightness of 1500 nits enables reliable image control even in daylight or direct sunlight. The display in the 16:10 format offers a detailed display and is particularly suitable for use on set, on the camera or on mobile production systems.
- 10.1"display with 1920 × 1200 pixels
- 1500 nits Brightness for outdoor use
- Viewing angle: 170° / 170°
- Robust CNC aluminum housing
The Q10 has 2 × 12G-SDI inputs as well as HDMI 2.0 and supports 4K signals up to 60p. The loop outputs enable flexible signal forwarding to other monitors, recorders or Control systems.
- 2 × 12G-SDI input
- 12G-SDI loop output
- HDMI 2.0 input and output
- 4K support up to 4096 × 2160 / 60p

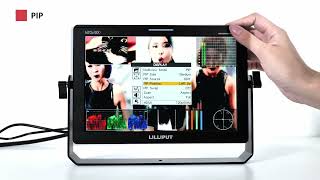

- PIP and PBP for two video sources
For professional HDR and log workflows, the Monitor ST2084, HLG as well as 3D LUTs in.cube format. This allows camera profiles and looks to be assessed during recording.
- HDR: ST2084 300 / 1000 / 10000 and HLG
- 17 pre-installed LUTs
- 6 storage spaces for user LUTs [
- Support for SLog2, SLog3, CLog, NLog, ArriLog and JLog
The LILLIPUT Q10 offers numerous professional auxiliary functions for controlling exposure, sharpness, color and audio directly on the Set.
- Waveform, histogram and false color
- Focus peaking in different colors
- Audio vector scope and level meter
- Check field, color bar and Marker functions
- 3.5 mm headphone output and integrated speakers
Weighing approx. 1.1 kg and dimensions of 251 × 170 × 30.5 mm the Q10 remains mobile despite being professionally equipped. The power supply is provided via DC 7–24 V and enables operation with different power sources. and battery solutions.
- Dimensions: 251 × 170 × 30.5 mm
- Weight: approx. 1.1 kg
- Power supply: DC 7-24 V
- Power consumption: max. 37 W at 12 V
- N power supply
- Tally cable
- Stand
- VESA mount NP-F battery plate
- Transport case
- V-Mount Battery plate
- Anton Bauer battery plate
Real product can look different to picture
techn. Specs▲
| Panel | 10.1" |
|---|---|
| Physical Resolution | 1920×1200 |
| Aspect Ratio | 16:10 |
| Brightness | 1500 nit |
| Contrast | 1000:1 |
| Viewing Angle | 170°/ 170° (H/V) |
| HDR | ST2084 300/1000/10000/HLG |
| Supported Log formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User... |
| Look up table (LUT) support | 3D LUT (cube format) |
| SDI | 2×12G-SDI |
| HDMI | 1×HDMI 2.0 |
| Tally | 1 |
| SDI | 2×12G-SDI |
| HDMI | 1×HDMI 2.0 |
| SDI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50... |
| HDMI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50... |
| SDI | 16ch 48kHz 24-bit |
| HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 1 |
| Input Voltage | DC 7-24V |
| Power Consumption | ≤37W (12V) |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Dimension(LWD) | 251mm × 170mm × 30.5mm |
| Weight | 1.1kg |
Questions & Answers▲
What display size and resolution does the Lilliput Q10 have?
The Lilliput Q10 has a 10.1-inch display with a resolution of 1920 × 1200 pixels in 16:10 format. The viewing angle is 170° horizontally and 170° vertically, which enables good readability from different angles.
How bright is the monitor and is it suitable for outdoor photography?
The monitor achieves a brightness of 1500 nits. This luminance enables reliable image control even in daylight and direct sunlight, which makes it particularly suitable for outdoor recordings and mobile set use.
Which SDI ports are available?
The Lilliput Q10 offers two 12G-SDI inputs and a 12G-SDI loop output. The loop output enables flexible signal forwarding to other monitors, recorders or control systems without signal interruption.
Which HDMI version is supported and what function does the HDMI port have?
The monitor is equipped with HDMI 2.0, which is both can be used as an entrance as well as an exit. This means that the signal can also be passed on to downstream devices.
What maximum video resolution and frame rate are supported?
The Lilliput Q10 supports 4K signals up to a resolution of 4096 × 2160 pixels at 60 frames per second. This makes it designed for current 4K broadcast and film production workflows.
Can two video sources be displayed at the same time?
Yes, the monitor supports PIP (Picture-in-Picture) and PBP (Picture-by-Picture), so that two video sources can be shown on the display at the same time. This is useful for directly comparing different camera signals or inputs.
Which HDR standards are supported?
The Lilliput Q10 supports the HDR standards ST2084 in variants 300, 1000 and 10000 nits as well as HLG. This allows HDR content to be correctly assessed during production.
Which log formats and camera profiles are supported for the LUT preview?
The monitor supports, among others, SLog2, SLog3, CLog, NLog, ArriLog and JLog. This allows camera-native log signals from different manufacturers to be displayed directly on the monitor with a LUT as a color-corrected image.
How many LUTs can be loaded and which format is used?
The Lilliput Q10 offers 17 pre-installed LUTs as well as 6 storage spaces for your own user LUTs. Custom LUTs can be imported in the widely used.cube format.
What monitoring auxiliary functions for exposure and sharpness control are available?
The monitor provides waveform, histogram and false color Exposure control ready. Focus peaking is available in different colors for sharpness control. This allows exposure and focus to be reliably assessed directly on the set.
What audio control functions does the monitor offer?
An audio vector scope and a level meter are available for audio control. These enable direct level monitoring and quality control of the audio signal at the production site.
What material is the housing of the Lilliput Q10 made of?
The housing is made of CNC-milled aluminum. This construction ensures a robust and durable construction that is suitable for professional use on set.
What production environments is the Lilliput Q10 designed for?
The monitor is designed for broadcast, film and video productions. It is suitable for use directly on the camera as well as on mobile production systems and for outdoor recordings where high display brightness and professional signal interfaces are required.
