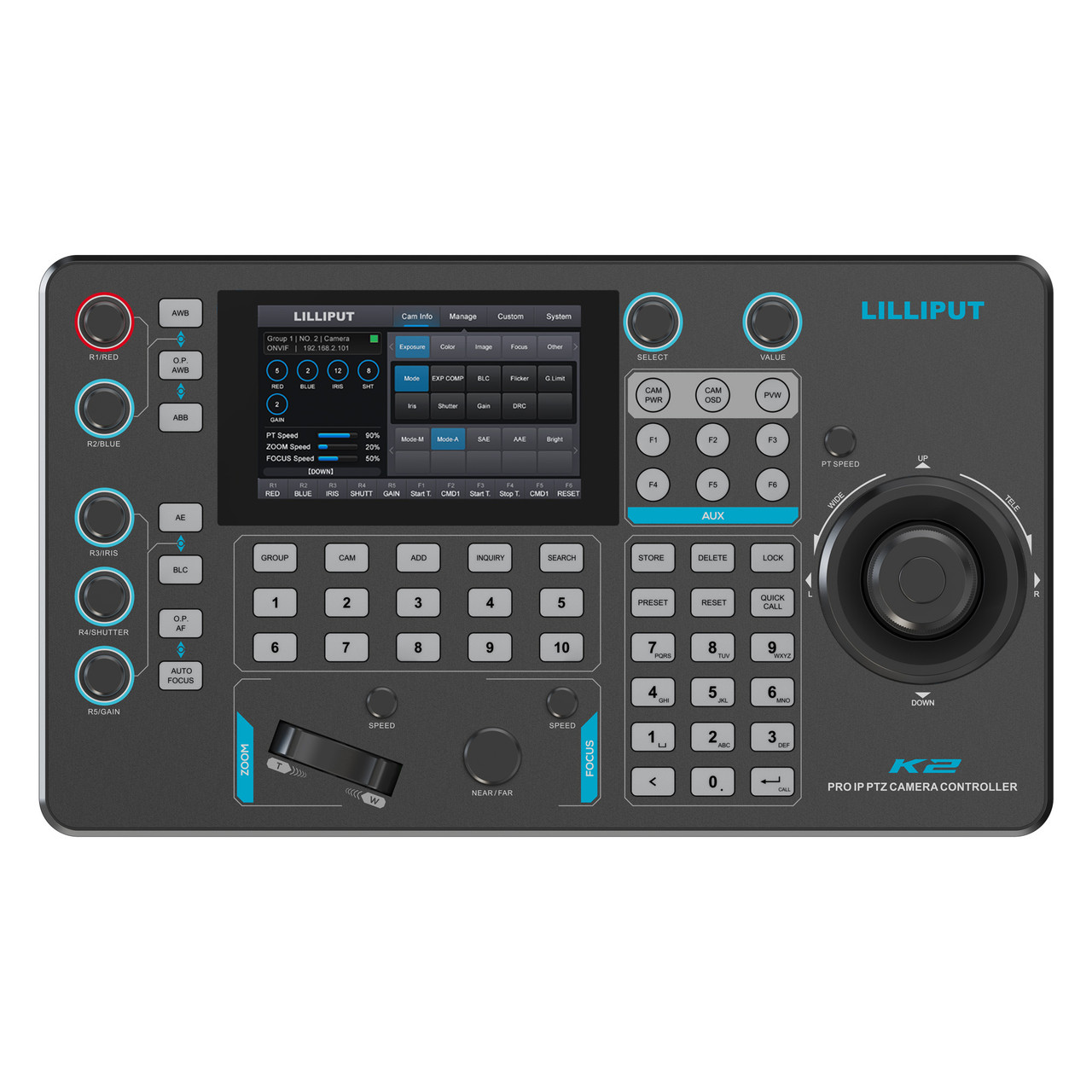

Lilliput K2-N PTZ Controller with NDI and Touchscreen
Manage up to 100 IP cameras via 5" display and 4D joystick
Special price: € 698.99
incl. VAT
( instead of 712.81 )
587.39 € w/o vat
in stock
Shipping costarticle number: 12631 | manufacturer number: K2-N | EAN/UPC: 6950821604267
- 5" touchscreen and 4D joystick for precise control
- Easy operation for quick adjustments
- Real-time preview of the PTZ camera on the 5" display
- Management of up to 100 IP cameras within a network
- 255 presets for individual camera positions
- Track recording and playback for automated camera movements
- Supports common protocols such as NDI, Visca, Visca Over IP, Pelco P&D, and Onvif
- Control via IP, RS-422, RS-485, and RS-232 interfaces
- Automatic IP address assignment for easy setup
- 6 user-definable buttons for quick access to important functions
- Quick control of exposure, aperture, focus, panning, tilting, and more
- Tally GPIO for visual status indicators
- Supports PoE (Power over Ethernet) and 12V DC power supply for flexible deployment options
Real product can look different to picture
techn. Specs▲
| Interfaces | 1x IP (RJ45), 1x RS-232, 4x RS-485/RS-422, 1x Tally, 1x USB-C (for software upgrades) |
|---|---|
| Supported IP Protocols | NDI, ONVIF, VISCA-IP |
| Supported Serial Protocols | PELCO-D, PELCO-P, VISCA |
| Serial Baud Rate | 2.400, 4.800, 9.600, 19.200, 38.400, 115.200 bps |
| LAN Port | 1x 100M (PoE / PoE+; IEEE 802.3 af/at) |
| Power | PoE / DC 7~24 V |
|---|---|
| Power Consumption | PoE: < 8 W, DC: < 8 W |
| Operating Temperature | - 20 °C to 60 °C |
| Storage Temperature | - 20 °C to 70 °C |
| Dimensions | 34 x 19.5 x 4.95 cm or 34 x 19.5 x 11.02 cm (with joystick) |
| Weight | approx. 2.36 kg |
- 1x Lilliput K2-N
- 1x DC power supply
- 1x Tally plug
Questions & Answers▲
How many cameras can the Lilliput K2-N control simultaneously?
The K2-N supports the management of up to 100 IP cameras within a single network, making it suitable for both small and larger multi-camera productions.
Which camera control protocols does the K2-N support?
It supports NDI, ONVIF, VISCA over IP, VISCA, Pelco-D, and Pelco-P, covering the most common protocols used by PTZ cameras in professional environments.
What interfaces are available for connecting cameras?
The controller provides one RJ45 IP port, one RS-232 port, four RS-485/RS-422 ports, one Tally port, and one USB-C port reserved for software upgrades.
Does the K2-N support Power over Ethernet?
Yes, the unit can be powered via PoE or PoE+ in accordance with IEEE 802.3 af/at standards. Alternatively, it accepts a DC power supply in the range of 7 to 24 volts. Both options consume less than 8 watts.
How many presets can be stored for camera positions?
Up to 255 presets can be saved per camera, allowing precise and repeatable positioning for different shooting scenarios.
What is the purpose of the track recording and playback function?
This feature allows camera movements to be recorded as tracks and played back automatically, enabling repeatable and consistent motion sequences without manual operation.
Can camera settings be configured directly on the controller?
Yes, the 5-inch touchscreen allows real-time monitoring and direct configuration of connected cameras, including settings such as exposure, aperture, focus, pan, and tilt.
What is the Tally GPIO used for?
The Tally GPIO connection enables visual status indicators, typically used to signal to camera operators and on-screen talent which camera is currently live or on standby.
Does the controller assign IP addresses to cameras automatically?
Yes, automatic IP address assignment is supported, which simplifies the initial setup process and reduces configuration time when integrating cameras into a network.
What baud rates are supported for serial communication?
The K2-N supports serial baud rates of 2400, 4800, 9600, 19200, 38400, and 115200 bps, providing compatibility with a wide range of PTZ cameras using serial protocols.
What are the physical dimensions and weight of the unit?
The controller measures 34 x 19.5 x 4.95 cm without the joystick and 34 x 19.5 x 11.02 cm with the joystick extended. It weighs approximately 2.36 kg.
What is included in the package?
The package contains the K2-N controller, a DC power supply, and a tally plug. Cameras and network cables are not included.
What operating temperature range does the K2-N support?
The unit operates reliably between minus 20 degrees Celsius and plus 60 degrees Celsius, making it suitable for use in a variety of indoor and controlled outdoor environments.
