Lilliput BM280-12G 28 inch 4K monitor with flight case
Professional field monitor with 12G-SDI & IPS panel
Special price: € 1689.00
incl. VAT
( instead of 2021.81 )
1.419.33 € w/o vat
in stock
Shipping costarticle number: 12106 | manufacturer number: BM280-12G | EAN/UPC: 6950821601495
The Lilliput BM280-12G is a professional 28 inch field monitor with native 4K resolution (3840 x 2160 pixels) and high-quality 10-bit IPS panel for precise image display 300 cd/m² brightness.
With a screen diagonal of over 71 cm and professional connections such as 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, DVI and 4 x HDMI, this monitor is ideal for broadcast, directing, studio, live production, video editing and camera monitoring.
It can be operated either using Sony V-mount batteries or the included power supply. The scope of delivery includes a sturdy flight case for safe transport and mobile use.
A suitable protective screen is available as an option for an additional charge. As a Lilliput service partner, we also carry many spare parts directly from stock.
The large 28-inch 4K monitor is ideal for users for whom classic 7 to 10-inch field monitors are too small and who need a significantly larger image area for professional control.
- Professional video monitor for directing, editing, studio or mobile field use
- Large 28 inch display with over 71 cm Image diagonal
- Native 4K resolution with 3840 x 2160 pixels
- 10-bit IPS technology for precise colors, good contrast and high viewing angle stability
- Precise calibration via RGB controller possible
- 4 x HDMI inputs (1 x 4K or 4 x HD)
- HDMI input 1 with HDMI 2.0 supports 4K at 25/30/50/60 Hz
- HDMI inputs 2 to 4 with HDMI 1.4 support 4K at 25/30 Hz
- 12G-SDI input for 4K and Full HD up to 50/60 Hz
- Additional 6G-SDI, 3G-SDI and HD-SDI compatibility
- SDI signals can be looped through (Loop Out / Passthrough)
- Aspect ratio adjustable in the device, e.g. B. for anamorphic productions
- Headphone connection via 3.5 mm jack
- VESA 100 x 100 holes on the back
- Stable flight case, power supply, desktop feet and glare protection included in delivery included
- Large sun visor/glare protection for outdoor use and bright studios
- Operation via power supply or Sony V-mount batteries
- Tally connection via 9-pin Sub-D

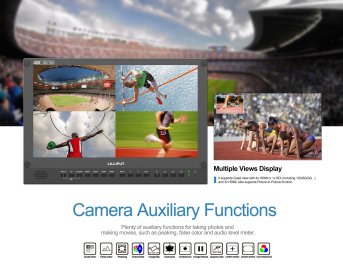

- 1 input as full screen
- 2 inputs next to each other (left / right)
- 2 inputs one above the other (top / below)
- 2 inputs in picture-in-picture mode
- 4 inputs in Quadview (4 x HDMI or 1 x SDI / 3 x HDMI)
The 12G-SDI input supports resolutions up to 4K at 50/60 Hz. 4K signals are available on all HDMI inputs. HDMI input 1 supports 4K at 50/60 Hz, HDMI inputs 2 to 4 support 4K at 25/30 Hz.
Real product can look different to picture
techn. Specs▲
| Size | 28" |
|---|---|
| Resolution | 3840×2160 |
| Brightness | 300cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/160°(H/V) |

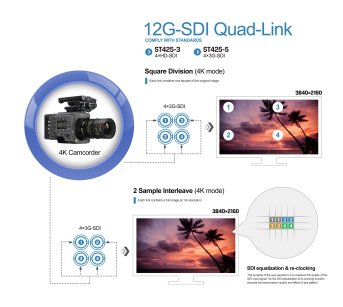

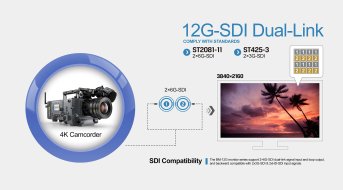

| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| HDMI | 1×HDMI 2.0, 3×HDMI 1.4 |
| Video Loop Output (Uncompressed true 10-bit or 8-bit 422) | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
| Operating power | ≤61.5W |
| DC In | DC 12-24V |
| Compatible batteries | V-Lock or Anton Bauer Mount |
| Input voltage (battery) | 14.4V nominal |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |

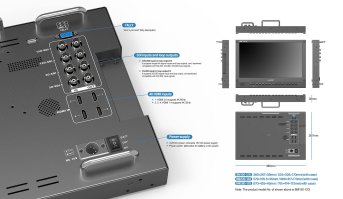

| Dimension(LWD) | 670×425×45mm / 761×474×173mm (with case) |
| Weight | 9.4kg / 21kg (with case) |
Questions & Answers▲
What resolution does the BM280-12G monitor have?
The monitor offers a true 4K resolution of 3840 x 2160 pixels, which enables native 4K preview.
What screen diagonal does the display have?
The display has a screen diagonal of 28 inches, which corresponds to approximately 71 cm.
Which video inputs are available?
The monitor offers 4x HDMI inputs, 12G/6G/3G/HD-SDI inputs and outputs, DVI and VGA ports.
Does the monitor support 4K at 60 Hz?
Yes, 4K signals with up to 60 Hz are possible via the HDMI 2.0 input and the 12G-SDI input.
How is the monitor powered?
The power supply is provided either via V-mount batteries or the included power supply.
Which panel technology is used?
The monitor uses a professional 10-bit IPS panel, which ensures good contrast and color representation independent of the viewing angle.
How bright is the display?
The display achieves a brightness of 300 cd/m², which is suitable for professional applications.
Is a flight case included?
Yes, the monitor comes with a flight case for safe transport and protection.
Can SDI signals be looped through?
Yes, SDI signals can be looped through, which allows additional devices to be connected in the signal chain.
Does the monitor have a headphone jack?
Yes, there is a 3.5mm headphone jack.
Is the monitor calibrated?
The monitor comes with professional calibration and has RGB controls for precise settings.
Can the monitor be wall mounted?
Yes, there are VESA 100x100 holes on the back for wall mounting or other brackets.
documents, files, links▲
lilliput-bm280-12g-user-manual.pdfproduct safety (GPSR)▲
