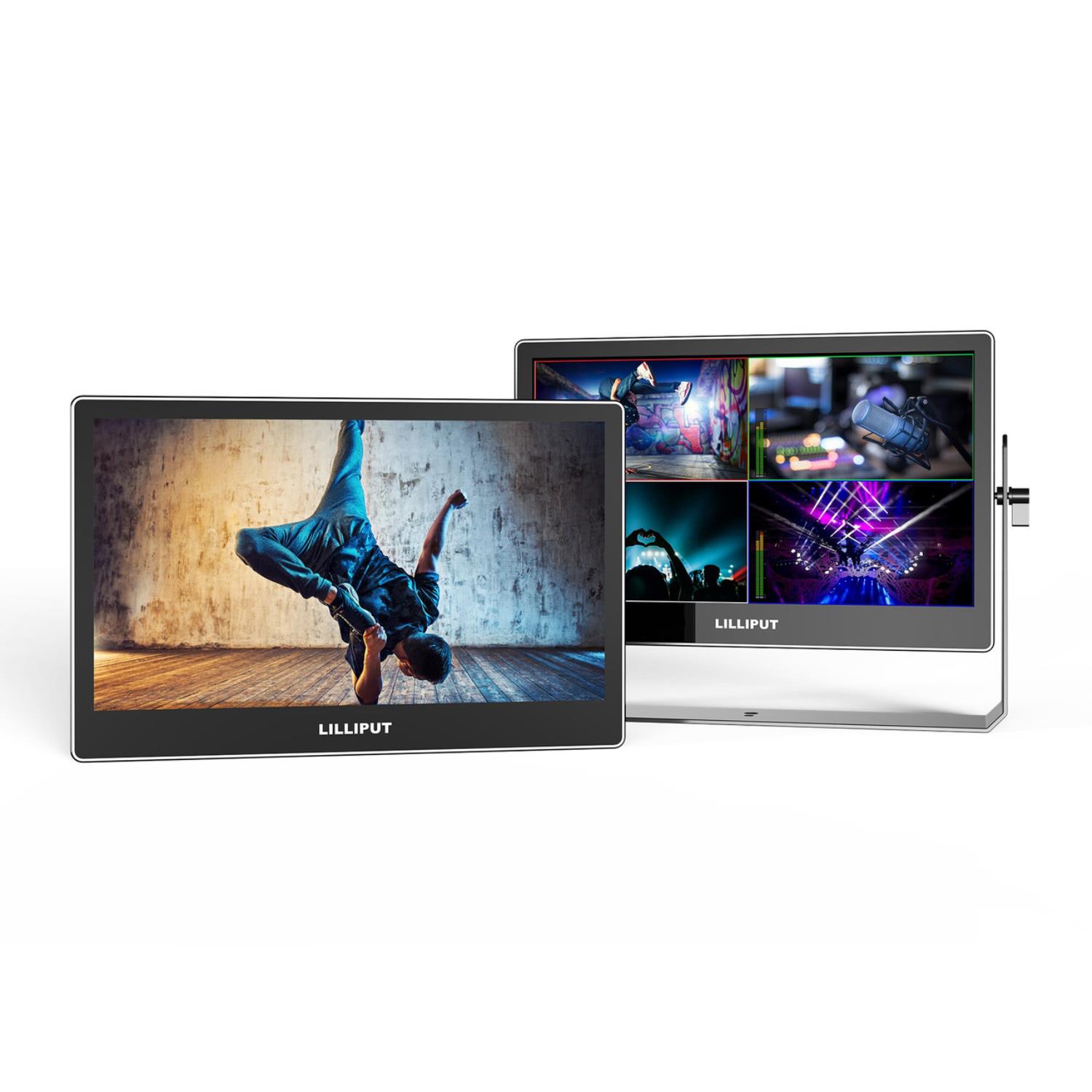

LILLIPUT A13 4K OLED Broadcast Monitor 13.3 inches
Multi-camera monitoring with multiview functions
Special price: € 767.55
incl. VAT
( instead of 831.81 )
645.00 € w/o vat
in stock
Shipping cost More from LilliputNo returned or B-stock items sold as new
One contact who knows the equipment
Not left alone if a defect occurs
Full input-tax deduction for business customers
article number: 12588 | manufacturer number: A13 | EAN/UPC: 6950821602751
The Lilliput A13 is the direct successor to the Lilliput A12 and is aimed at professional users in broadcast, video production, studio and multi-camera environments.
With its 13.3-inch Ultra HD OLED display, the monitor offers a native resolution of 3840 x 2160 pixels, a very high contrast ratio and precise image reproduction for demanding monitoring tasks.
The OLED panel supports the DCI-P3 color space and additionally offers selectable color spaces such as Rec.709, NTSC and DCI-P3. Thanks to PQ HDR support and color calibration, the A13 is also suitable for color-critical applications in professional video production.
The Lilliput A13 supports various multiview display modes such as Picture-by-Picture, Picture-in-Picture and Quad-Split. This allows multiple signal sources to be monitored simultaneously on a single display.
This feature is particularly useful in live productions, studio deployments, event broadcasts and multi-camera setups where multiple camera angles need to be monitored in parallel.
The monitor features HDMI, SDI and DisplayPort connections, allowing flexible connectivity with cameras, computers, playback devices and broadcast equipment.
The HDMI 2.0 interface supports 4K signals, while the 3G-SDI connection with loop-through function is suited for professional broadcast workflows.
For a variety of applications, the Lilliput A13 offers flexible mounting options. The included gimbal bracket enables convenient and adaptable attachment.
The also included sunshade supports use during outdoor shoots and helps reduce unwanted reflections on the display.
Thanks to its compact design, low weight and power supply via 7 to 24 V DC, the monitor is suitable for both studio use and mobile production environments.
For audio monitoring, the A13 features built-in speakers as well as a 3.5 mm headphone jack, allowing the audio signal to be monitored directly at the monitor.
The scope of delivery includes a gimbal bracket, HDMI cable, power supply, sunshade and user manual.
Please note: Images may differ from the product currently supplied. Some product photos have been scaled, background-removed or visually enhanced using artificial intelligence. The product features shown were not intentionally altered.
techn. Specs▲
| Panel | 13.3" OLED |
|---|---|
| Physical Resolution | 3840×2160 |
| Aspect ratio | 16:9 |
| Brightness | 400 Nits |
| Contrast | 100000:1 |
| Viewing angle | 170°/ 170°(H/V) |
| Color space | 100% DCI-P3 |
| HDR Support | PQ |
| HDMI | 1×HDMI 2.0, 3×HDMI 1.4b |
| 3G-SDI | 1 |
| DP | 1 |
| 3G-SDI | 1 |
| HDMI 2.0 | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... |
| HDMI 1.4b | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... |
| 3G-SDI | 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60... |
| DP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... |
| Speaker | 2 |
| Earrings | 3.5 mm - 2 channels 48 kHz 24-bit |
| Input voltage | DC 7-24V |
| Power consumption | ≤20W (12V) |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Dimensions (LWD) | 320mm × 208mm × 26.5 mm |
| Weight | 1.15 kg |
Questions & Answers▲
What resolution and screen size does the monitor have?
The monitor has a 13.3-inch OLED display with native 4K Ultra HD resolution of 3840×2160 pixels for razor-sharp image display.
Which multiview modes are supported?
The monitor supports PBP (Picture-by-Picture), PIP (Picture-in-Picture) and Quad-Split Multiview for simultaneous display of multiple camera sources in different display modes.
What connection options are available?
The monitor offers an HDMI 2.0 input, three HDMI 1.4b inputs, a 3G-SDI input and output as well as a DisplayPort input for versatile signal sources.
Which color space does the OLED panel support?
The OLED panel supports 100% DCI-P3 color space and offers various calibrated color spaces such as Rec.709, NTSC and DCI-P3 to choose from for color-critical applications.
What is the contrast ratio of the OLED display?
The high-contrast OLED panel achieves a contrast ratio of 100,000:1, making details particularly clear due to the extreme contrast.
Is there HDR support?
Yes, the monitor offers PQ HDR support for extended dynamic ranges and accurate color reproduction in HDR content.
For which areas of application is the monitor suitable?
The monitor is ideal for multi-camera setups in live productions, studios, event broadcasts and color-critical applications in video production and broadcasting.
What advantages does the multiview function offer for filmmakers?
Filmmakers and broadcast professionals can monitor different camera angles simultaneously and switch between views without requiring separate monitors for each source, streamlining workflow.
What characterizes the image quality of the OLED panel?
The carefully selected Ultra HD OLED display ensures even color distribution, a wide color space and exceptional image quality for professional monitoring tasks.
