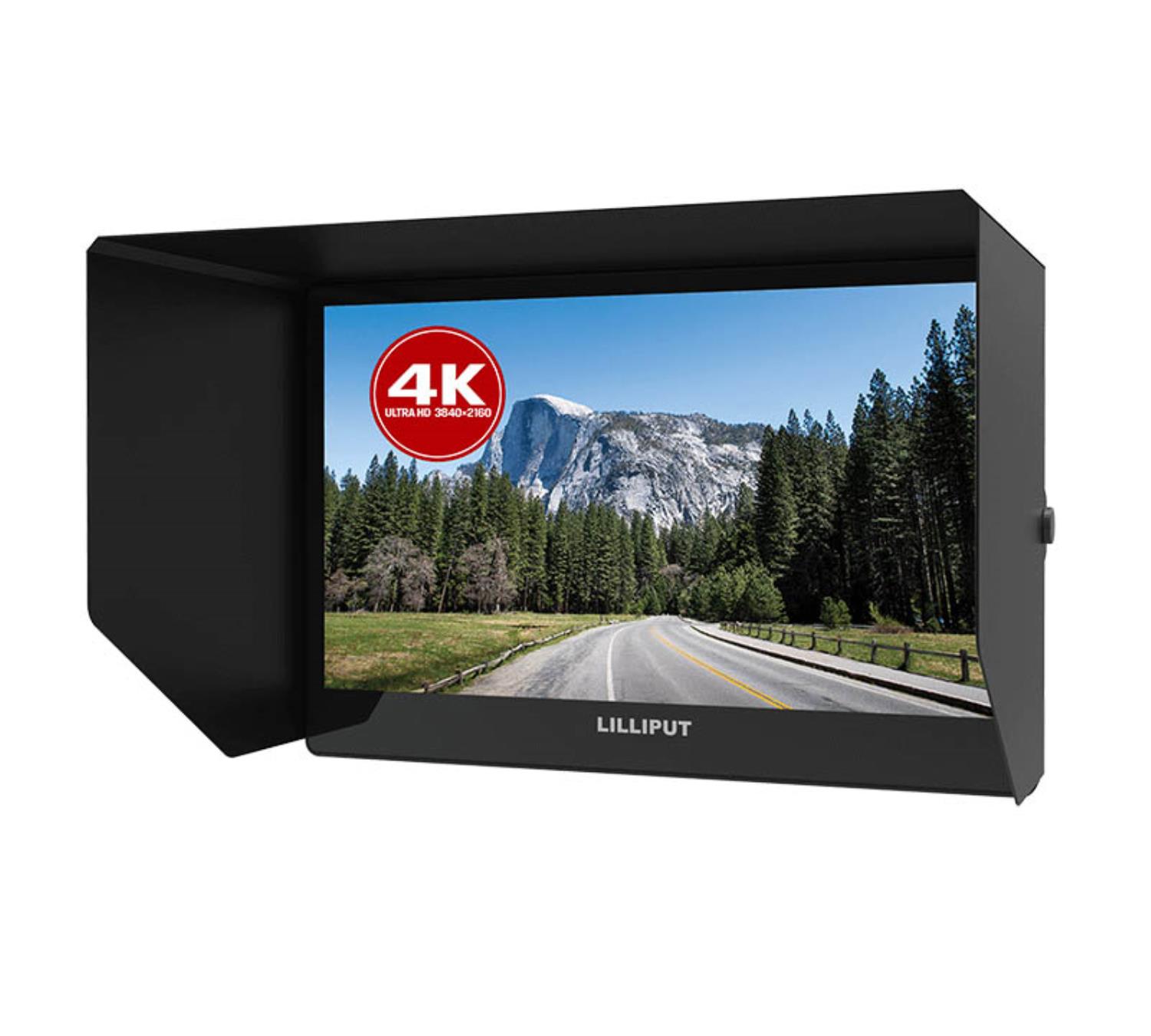

Lilliput A12 – 12.5 inch 4K UHD camera monitor
IPS panel with HDMI, SDI & DisplayPort for video production
Special price: € 665.21
incl. VAT
( instead of 689.01 )
559.00 € w/o vat
in stock
Shipping costarticle number: 11858 | manufacturer number: A12 | EAN/UPC: 6950821601402
The LILLIPUT A12 is a professional 12.5 inch 4K UHD Camera monitor with native Ultra HD resolution of 3840 x 2160 pixels. The high-quality IPS panel ensures precise color reproduction, stable viewing angles and reliable image control - both in the studio and in mobile use. With its compact size, the monitor is optimally positioned between classic 7 to 10 inch on-camera monitors and larger production monitors. Functions such as horizontal and vertical image mirroring make the LILLIPUT A12 particularly suitable for teleprompter applications. At the same time, it offers high compatibility with modern cameras, switches and production systems thanks to its flexible signal processing and versatile connection options. This makes the monitor a flexible solution for directing, editing, studio and mobile use.
- Native 4K UHD resolution with 3840 x 2160 pixels for precise image control
- IPS panel with stable viewing angles of 170°/170°
- Brightness of 400 cd/m² for flexible operating conditions
- Contrast ratio of 1500:1 for detailed display
- 16:9 image format with support of PAL and NTSC
- RGB settings for precise color adjustment
- Professional monitoring tools such as Peaking, False Color and Check Field
- Horizontal and vertical image mirroring - ideal for Teleprompter
- Image Freeze for still image control during production
- Precise preview for camera, directing and editing applications
- Suitable for studio, broadcast, live streaming and mobile use
- 4 x HDMI, including HDMI 2.0 with 4K up to 60 Hz
- 1 x DisplayPort for high-resolution video signals
- 1 x 3G-SDI input with SDI passthrough
- Compatible with a variety of cameras and production systems
- VESA mount 75 x 75 mm for easy installation
- Compact design with 12.5 inch display diagonal
- Support of Sony NP-F batteries for mobile operation
- Ideal for setups between on-camera monitor and studio display
Real product can look different to picture
techn. Specs▲
| Image diagonal | 32cm (12.5 inches) |
|---|---|
| Resolution | 3840 x 2160 pixels |
| Brightness | 400 cd/m² |
| Contrast | 1500:1 |
| Viewing angle | 170° horizontal 170° vertical |
| Operating voltage | 7 to 20V |
| Power consumption | maximum 16 watts |
| Inputs | 1x SDI/HD-SDI/3G-SDI, 4x HDMI, 1 x DisplayPort |
| Outputs | 1x SDI/HD-SDI/3G-SDI |
| HDMI input 1 | HDMI 2.0 4K in 25/30/50/60 HZ possible |
| HDMI input 2-4 | HDMI 1.4 4K with 25/30 Hz possible |
| Display Port | 4K 50&60 Hz |
| Full HD | 1920x1080, HD1 1280x720 on all HDMI and SDI ports |
| Dimensions (LxWxD) | approx. 297.6 x 195 x 21.8mm |
| Weight | approx. 960 gr |
Questions & Answers▲
What resolution does the Lilliput A12 monitor have?
The monitor has a native 4K UHD resolution of 3840 × 2160 pixels in 16:9 format and supports both PAL and NTSC standards.
How big is the screen diagonal?
The screen diagonal is 12.5 inches (approximately 32 cm), which positions the monitor between smaller on-camera displays and larger production monitors.
What connection options does the monitor offer?
The monitor has 4 × HDMI (including HDMI 2.0 for 4K to 60Hz), 1 × DisplayPort, 1 × 3G-SDI input with SDI passthrough and is compatible with many cameras and production systems.
How bright is the display and which panel technology is used?
The IPS panel achieves a brightness of 400 cd/m² and offers stable viewing angles of 170°/170°. The contrast ratio is 1500:1 for a detailed display.
Is the monitor suitable for teleprompter applications?
Yes, the horizontal and vertical image mirroring functions make the monitor particularly suitable for teleprompter applications.
What professional monitoring functions are available?
The monitor offers professional tools such as Peaking, False Color, Check Field and Image Freeze for still image control during production.
How can the monitor be mounted?
The monitor has a VESA mount with 75 × 75 mm for easy and flexible mounting in various application scenarios.
For what areas of application is the monitor designed?
The monitor is designed for professional applications in studios, directing, broadcast, live streaming, editing and mobile field use.
Does the monitor support Quad View display?
Yes, the monitor has Quad View functionality for displaying multiple signal sources on one screen at the same time.
Can color settings be adjusted?
Yes, the monitor offers RGB settings for exact color adjustment and ensures precise color reproduction for professional applications.
