Lilliput BM120-4KS 12.5 inch 4K suitcase monitor
Broadcast Director Monitor with HDR, LUT & Quad View
Special price: € 829.00
incl. VAT
( instead of 950.81 )
696.64 € w/o vat
in stock
Shipping costarticle number: 12279 | manufacturer number: BM120-4KS | EAN/UPC: 6950821601761
The Lilliput BM120-4KS is a compact 12,5" 4K broadcast monitor in a robust case system. It is suited for control rooms, camera shading, mobile productions, studio use, and technical signal monitoring. By combining a UHD display, professional video connections, and integrated analysis functions, the monitor is a practical solution for set, OB van, live production, and field monitoring.

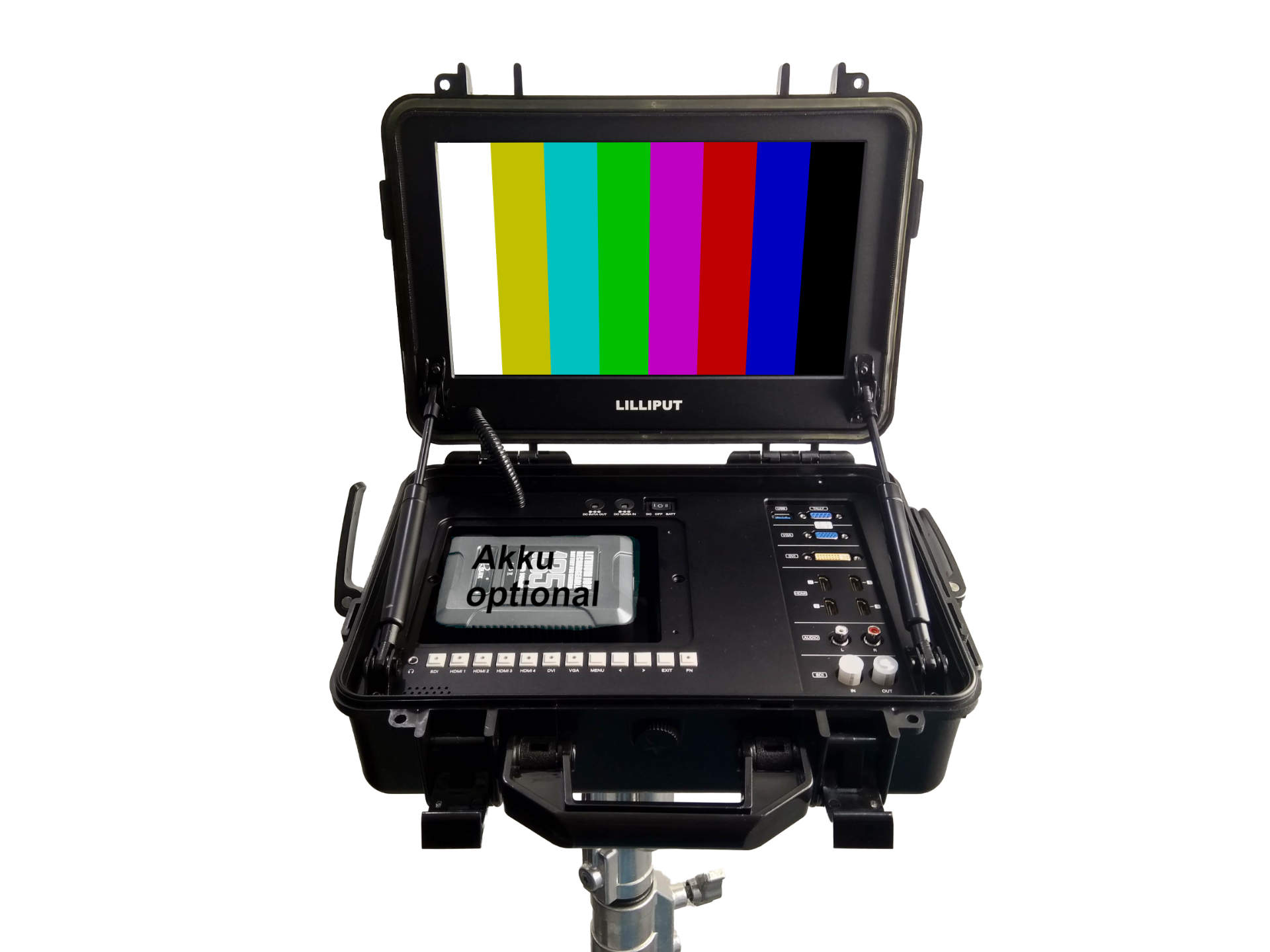

In contrast to set variants with an additional tripod mount, this version focuses on the monitor in a transport case with V-Mount preparation. This makes the BM120-4KS particularly suitable for users looking for a protected, portable monitoring solution without a fixed tripod configuration.
The 12,5" IPS panel offers a native resolution of 3840 x 2160 pixels and enables detailed control of framing, sharpness, contrast, and color reproduction. With 400 cd/m² brightness, 1500:1 contrast, and a wide viewing angle, the monitor is suitable for many typical production environments.
HDR support assists in evaluating modern image signals with extended dynamic range. This is especially useful when a reliable signal preview is needed on set, in the control room, or during technical monitoring.
Practical monitoring tools are available for the technical evaluation of the video signal. These include waveform, vectorscope, histogram, focus peaking, false color, exposure display, and timecode display, among others. These functions assist camera operators, video engineers, and directors in monitoring exposure, color, sharpness, and signal quality.
3D LUT support enables a customized preview for different looks and color workflows. With Quad View, multiple input signals can be displayed simultaneously on the screen, making the BM120-4KS interesting for multi-camera setups, signal comparisons, and monitoring stations.

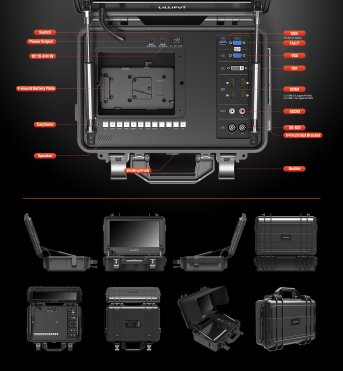

The Lilliput BM120-4KS offers multiple inputs for professional and semi-professional video sources. In addition to 3G-SDI / HD-SDI, four HDMI inputs and DisplayPort are available. This allows the monitor to be combined with cameras, vision mixers, players, recorders, computers, and other signal sources.
The HDMI inputs support 4K signals up to 60 Hz or up to 30 Hz depending on the connection. Full HD signals can be processed via SDI and looped through via the SDI output. This keeps the monitor flexibly integrable into existing broadcast, studio, and live workflows.

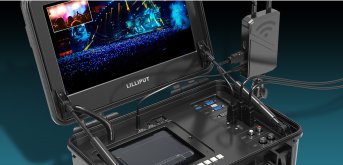

The integrated case system protects the monitor during transport and facilitates quick setup at the deployment location. This makes the BM120-4KS particularly interesting for mobile control rooms, rental companies, production companies, training rooms, technical workstations, and temporary installations.

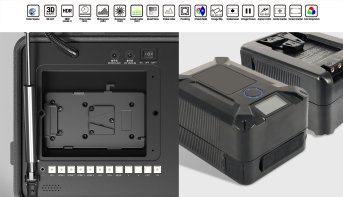

Depending on the setup, power can be supplied via a suitable external power supply or via V-Mount batteries. This allows the monitor to be used in locations where a fixed mains power supply is not directly available at the workstation.
- Director monitor for live production, studio, and OB van
- 4K field monitor for film, video, and broadcast productions
- Director monitor for set, camera shading, and client monitoring
- Signal monitoring in HDMI, SDI, and DisplayPort workflows
- Portable monitoring solution for rental, training, and mobile technical workstations
Real product can look different to picture
techn. Specs▲
| Panel | 12.5-inch LCD |
|---|---|
| Physical Resolution | 3840×2160 |
| Aspect Ratio | 16:9 |
| Brightness | 400cd/m2 |
| Contrast | 1500:1 |
| View Angle | 170°/ 170°(H/V) |
| 3G-SDI | 3G SDI (support up to 1080p 60 Hz). ×2 (Support up to 4K 30 Hz) |
| DVI | 1 |
| VGA | 1 |
| Audio | 2 (L/R) |
| Tally | 1 |
| USB | 1 |
| 3G-SDI | 3G SDI (support up to 1080p 60Hz) |
| Speakers | 1 |
| Ear Socket | 1 |
| Input voltage | DC 10-24 V |
| Power Consumption | ≤23 W |
| Battery Plate | V-Mount Battery Plate |
| Power Output | DC 8V |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | 10°C~60°C |
| Dimensions (LWD) | 356.8 mm × 309.8 mm × 122.1 mm |
| Weight | 4.35 kg (including Accessories) |
Questions & Answers▲
What screen size and resolution does the monitor offer?
The monitor has a screen diagonal of 12.5 inches and supports 4K resolution for highly detailed image reproduction in professional applications.
Does the monitor support HDR content?
Yes, the monitor offers HDR support, which enables precise assessment of high dynamic range content and is essential for professional film productions.
What connection options are available?
The monitor is equipped with HDMI and 3G-SDI inputs, which enable flexible integration into professional workflows and the transmission of high-resolution video signals.
What is 3D LUT and what advantages does this feature offer?
3D LUT allows loading and applying various look-up tables for color correction and color grading. This is particularly valuable in post-production for professional color editing.
Which monitoring tools are integrated into the monitor?
The monitor offers extensive camera auxiliary functions with waveform, vectorscope, histogram and focus peaking. These tools support technical monitoring and quality control of recordings.
Can the monitor display multiple input signals at the same time?
Yes, the Quad View Display allows multiple input signals to be displayed on one screen at the same time, which is very useful for complex production environments.
For what areas of application is this monitor designed?
The monitor was specifically developed for professional film productions and broadcast applications and offers a reliable monitoring solution for demanding production environments.
How should the color rendering of the monitor be assessed?
The monitor offers outstanding image quality with excellent color reproduction and wide color space coverage, ensuring accurate color representation for professional applications.
Is the monitor suitable for mobile use?
Yes, the monitor is designed as a field monitor and has a robust design suitable for use in various production environments.
What bandwidth does the 3G-SDI connection support?
The 3G-SDI connectivity provides the necessary bandwidth for the transmission of high-resolution HD video signals, ensuring lossless signal transmission.
Customer Reviews▲
Ich habe das Gerät gekauft weil es komplett im Koffer geliefert wird und unterwegs mit leistungsstarken Akkus versorgt werden kann. Beim Kauf der Akkus habe ich von dem Verkäufer den Hinweis zur maximalen Größe als sehr hilfreich empfunden. Gernee wieder !
