Lilliput A11 10.1 inch broadcast monitor SDI HDMI
Full HD camera monitor with touchscreen for film production
article number: 12207 | manufacturer number: A11 | EAN/UPC: 6950821601617
The Lilliput A11 is a professional 10.1 inch broadcast and camera monitor for film production, directing, studio, live streaming and mobile field use. With its native Full HD resolution of 1920 x 1200 pixels the monitor offers precise image assessment for Full HD and 4K signals.
Thanks to 3G-SDI / HD-SDI, HDMI and DisplayPort, the A11 is ideal for professional camera setups and modern production environments. The compact format combines high mobility with sufficient screen space for precise monitoring on set.
The robust housing, flexible mounting options and mobile power supply make the A11 a reliable solution for stationary and mobile productions.

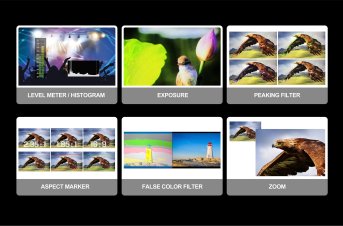

- Waveform display for signal and exposure control
- Vectorscope for color analysis
- Histogram for brightness control
- Focus peaking for precise Focusing
- Guides / picture aids for exact image composition
- Touchscreen for quick operation of all monitor functions
These functions support camera operators, assistants and video teams in professional control of image quality, focus and exposure directly during recording.

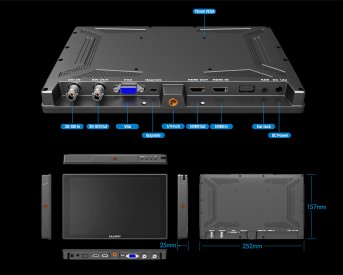

- 1 x 3G-SDI / HD-SDI input
- 1 x 3G-SDI / HD-SDI output (loop out)
- 1 x HDMI input (4K to 30p)
- 1 x DisplayPort input
- 1 x headphone jack 3.5 mm stereo
- 1 x DC power connector (12 V)

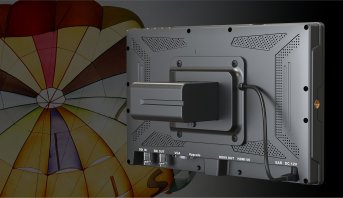

The Lilliput A11 can be operated via a power supply or compatible camera batteries. Various mounting options enable easy integration into camera rigs, tripods or mobile setups.
- 12 volt power supply
- HDMI type A to type C cable
- F970 battery plate
- Sun visor
- Hot shoe mount
- User instructions
- Frame for attaching the sun visor
- Anton Bauer battery plate
- V-mount battery plate
- Table rotating mount / clamp
Real product can look different to picture
techn. Specs▲
| Display | Size | 10.1" |
|---|---|---|
| Resolution | 1920 × 1200 | |
| Brightness | 320 cd/m² | |
| Aspect ratio Ratio | 16:10 | |
| Contrast | 1000:1 | |
| Viewing angle | 175° / 175° (H/V) | |
| Video input | SDI | 1 × 3G-SDI |
| HDMI | 1 × HDMI 1.4 | |
| VGA | 1 | |
| Video loop output | SDI | 1 × 3G-SDI |
| HDMI | 1 × HDMI 1.4 | |
| Supported input/output formats | SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 | |
| Audio In/Out | SDI | 12ch 48kHz 24-bit |
| HDMI | 2-channel 24-bit | |
| Studs | 3.5mm - 2-channel 48 kHz 24-bit | |
| Built-in speakers | 1 | |
| Power supply | Operation Power | ≤13W |
| DC In | DC 7-24V | |
| Compatible Batteries | NP-F series | |
| Input voltage (battery) | 7.2 V nominal | |
| Ambient | Operating temperature | 0°C - 50°C |
| Storage Temperature | -20°C – 60°C | |
| Other | Dimensions (L × W × D) | 252 × 157 × 25mm |
| Weight | 550g |
Questions & Answers▲
What resolution does the Lilliput A11 monitor support?
The monitor has a native resolution of 1920x1200 pixels and is 4K capable. It can process and display 4K signals up to 30p via HDMI.
What ports does the monitor offer?
The monitor has 3G-SDI input and output, HDMI 1.4 input and output, DisplayPort input, 3.5mm headphone jack and DC power connector for 12V.
How bright is the display?
The IPS display achieves a brightness of 320 cd/m² and offers a viewing angle of 175° both horizontally and vertically.
Which batteries are compatible?
The monitor is compatible with NP-F series batteries. A VESA F970 battery plate is included in delivery. Anton Bauer and V-Mount Sony battery plates are also available as options.
Which video formats are supported?
Over SDI, 720p 50/60, 1080i 50/60, 1080pSF 24/25/30 and 1080p 24/25/30/50/60 are supported. HDMI additionally supports 2160p 24/25/30 for 4K content.
What is included?
The scope of delivery includes a 12 volt power supply, HDMI A/C cable, VESA F970 battery plate, sun protection visor, hot shoe holder, operating instructions and a frame for attaching the glare protection.
What are the dimensions and weight?
The monitor measures 252 × 157 × 25mm and weighs 550g. This makes it compact and lightweight for mobile use.
What audio functions does the monitor offer?
The monitor supports 12-channel 48kHz 24-bit audio over SDI, 2-channel 24-bit over HDMI and has a 3.5mm headphone jack and a built-in speaker.
In what temperature range can the monitor be operated?
The operating temperature is between 0°C and 50°C. A temperature range of -20°C to 60°C is specified for storage.
What is the power consumption?
The monitor has a maximum operating power of 13W and can be operated with a DC voltage of 7-24V. The nominal battery voltage is 7.2V.
