Lilliput BM230-12G 23.8 inch 4K monitor with flight case
Professional field monitor for broadcast & studio
Artikelnummer: 12105 | Hersteller-Nummer: BM230-12G | EAN: 6950821601471
The Lilliput BM230-12G is a professional field monitor with a 23.8 inch screen diagonal and native 4K resolution (3840 x 2160 pixels). The high-quality IPS panel with 8-bit FRC ensures a detailed display, stable viewing angles and reliable image control in professional use.
Thanks to extensive connections such as 12G-SDI, DVI and 4 x HDMI, the monitor is ideal for broadcast, directing, studio, live production, camera monitoring and video editing. The large display with a screen diagonal of over 60 cm offers significantly more overview than classic 7 to 10 inch field monitors.
It can be operated either via Sony V-Mount batteries or the included power supply. The scope of delivery includes a robust flight case with lids at the front and back for safe transport and mobile use.
- Professional 23.8 inch field monitor for studio, directing and mobile productions
- Native 4K resolution with 3840 x 2160 Pixels
- Professional connections with 12G-SDI, HDMI and DVI
- Large IPS display with a screen diagonal of over 60 cm
- Ideal for broadcast, camera monitoring and video editing
- Operation via power supply or V-mount battery
- Includes sturdy flight case
- Bright and sharp display with 300 cd/m² brightness
- IPS technology for good colors, contrast and high viewing angle stability
- Precise Calibration via RGB controller possible
- Almost complete control via the front keyboard
- 4 x HDMI inputs (1 x 4K or 4 x HD)
- HDMI input 1 with HDMI 2.0 supports 4K 25/30/50/60 Hz
- HDMI inputs 2 to 4 with HDMI 1.4 support 4K at 25/30 Hz
- 12G-SDI input for Full HD and 4K at 50/60 Hz
- SDI signals can be looped through (Loop Out / Passthrough)
- Adjustable aspect ratio, e.g. B. for anamorphic productions
- Headphone connection via 3.5 mm jack
- VESA 100 x 100 holes on the back
- Tally connection via 9-pin Sub-D
- 1 input as full screen
- 2 inputs next to each other (left / right)
- 2 inputs one above the other (top / below)
- 2 inputs in picture-in-picture mode

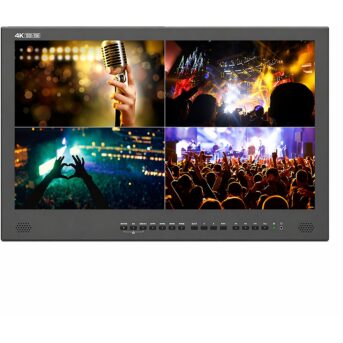

- 4 inputs in Quadview (4 x HDMI or 1 x SDI / 3 x HDMI)
Matching protective screen available at an additional cost.
Scope of deliveryReal product can look different to picture
techn. Specs▲
| Screen Diagonal | 60cm (23.8 inches) |
|---|---|
| Resolution | 3840 x 2160 pixels |
| Screen Type | semi-matte |
| Color Depth | 8-bit FRC (better display than 10-bit) |
| Brightness | 300 cd/m² |
| Contrast | 1000:1 |
| Viewing Angle | 178° Horizontal, 178° Vertical |
| Operating Voltage | 12 to 24V |
| Power Consumption | maximum 36 Watts |
| Inputs | 1x 12G-SDI, 4x HDMI, 1x SDI + Audio, 1x VGA, 2 x Audio RCA |
| Outputs | 1x 12G-SDI |
| HDMI Input 1 | HDMI 2.0 4K at 25/30/50/60 Hz possible |
| HDMI Input 2-4 | HDMI 1.4 4K at 25/30 Hz possible |
| Dimensions (LxWxH) | approx. 579 x 376.5 x 45mm / 666 x 417 x 173mm (with Flight Case) |
| Weight | approx. 8.6Kg / 17.1kg (with Flight Case) 19.6Kg Shipping weight |
Questions & Answers▲
What resolution does the BM230-12G monitor have?
The monitor features a true 4K resolution of 3840 x 2160 pixels, allowing native preview of 4K content.
What connection options does the monitor offer?
The monitor has 12G-SDI in/out, 4 x HDMI inputs, DVI and VGA. The first HDMI input supports HDMI 2.0 for 4K at 25/30/50/60 Hz, HDMI inputs 2-4 are HDMI 1.4 compatible for 4K at 25/30 Hz.
How big is the screen diagonal?
The monitor has a screen diagonal of 23.8 inches, which corresponds to approximately 60 cm.
What power options are available?
The monitor can be operated using both the included power supply and Sony V-mount batteries, making it ideal for mobile applications.
Is a flight case included?
Yes, the monitor comes with a flight case with lids at the front and back, which ensures safe transport.
What display technology is used?
The monitor uses a professional 8-bit FRC IPS panel, which ensures good contrast and color representation independent of the viewing angle. The brightness is 300 cd.
Can the SDI input be looped through?
Yes, the 12G-SDI input can be passthrough, which makes integration into professional production environments easier.
Does the monitor have VESA mounting options?
Yes, the monitor is equipped with VESA 100x100 holes on the back, which enable wall mounting or attachment to monitor arms.
Is there a headphone jack?
Yes, the monitor has a 3.5mm headphone jack for audio monitoring.
Is it possible to calibrate the monitor?
Yes, precise calibration is possible using RGB controllers. The control takes place almost entirely via the front keyboard.
Does the monitor support anamorphic production?
Yes, the aspect ratio of the image can be adjusted in the device, for example for equalization in anamorphic Cinemascope productions.
Is there a tally connection?
Yes, the monitor has a tally connection via 9-pin SUB-D for professional studio applications.
